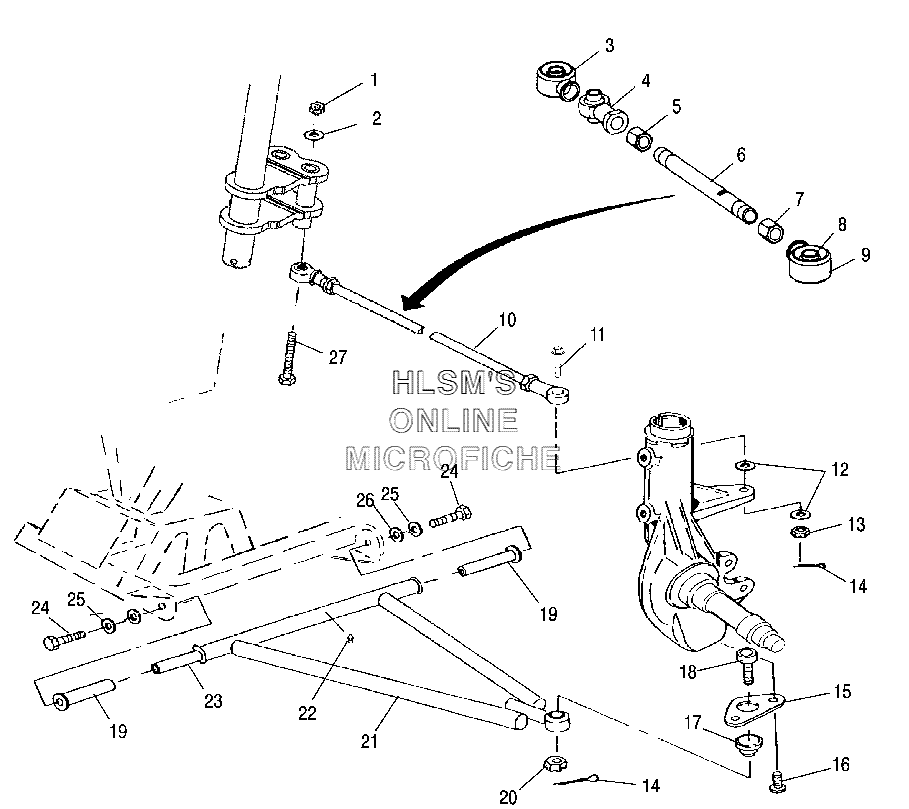

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris Trail Blazer (A06BA25CA) - 2006 года выпуска`
-
№АртикулНазвание
-
17542439N NUTNUT
-
27558403 WASHER, WROUGHTWASHER, WROUGHT
-
35411291 SEAL, BOOT, ROD END (IF BUILT BEFORE 10/01/05)SEAL, BOOT, ROD END (IF BUILT BEFORE 10/01/05)
-
35412928 BOOT-SEAL, ROD END, 1/2 IN (IF BUILT AFTER 10/01/05)BOOT-SEAL, ROD END, 1/2 IN (IF BUILT AFTER 10/01/05)
-
47061034 ROD-END, 3/8, 1/2-20 (RIGHT)ROD-END, 3/8, 1/2-20 (RIGHT)
-
47061139 ROD-END, 3/8, 1/2-20 (RIGHT) (IF BUILT AFTER 10/01/05)ROD-END, 3/8, 1/2-20 (RIGHT) (IF BUILT AFTER 10/01/05)
-
57542711 NUT-JAMNUT-JAM
-
65134242 ROD-TIEROD-TIE
-
77547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
85411920 BOOT, SEAL, ROD END, 10MM (IF BUILT BEFORE 10/01/05)BOOT, SEAL, ROD END, 10MM (IF BUILT BEFORE 10/01/05)
-
85412929 BOOT-SEAL, ROD END, 10MM (IF BUILT AFTER 10/01/05)BOOT-SEAL, ROD END, 10MM (IF BUILT AFTER 10/01/05)
-
97061054 ROD-END, 10MM, 1/2-20 (LEFT) (IF BUILT BEFORE 10/01/05)ROD-END, 10MM, 1/2-20 (LEFT) (IF BUILT BEFORE 10/01/05)
-
97061138 ROD-END, 10MM, 1/2-20 (LEFT) (IF BUILT AFTER 10/01/05)ROD-END, 10MM, 1/2-20 (LEFT) (IF BUILT AFTER 10/01/05)
-
101821498 TIE ROD ASSY. (IF BUILT BEFORE 10/01/05)TIE ROD ASSY. (IF BUILT BEFORE 10/01/05)
-
101822851 TIE ROD ASSY. (IF BUILT AFTER 10/01/05)TIE ROD ASSY. (IF BUILT AFTER 10/01/05)
-
117517909 BOLTBOLT
-
127556099 WASHERWASHER
-
137547177 NUTNUT
-
147661203 PIN, COTTERPIN, COTTER
-
155211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
175410548 BOOT, RUBBERBOOT, RUBBER
-
187080927 BALL-JOINT (52 DEG)BALL-JOINT (52 DEG)
-
195434551 BUSHING-A-ARM, LONG (BLACK)BUSHING-A-ARM, LONG (BLACK)
-
207542438 NUT, CASTLENUT, CASTLE
-
212202276 A-FRAME KIT (LEFT) (INCL. 14, 19, 23-25)A-FRAME KIT (LEFT) (INCL. 14, 19, 23-25)
-
212202277 A-FRAME KIT (RIGHT) (INCL. 14, 19, 23-25)A-FRAME KIT (RIGHT) (INCL. 14, 19, 23-25)
-
227080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
235133806 SHAFT-A-ARMSHAFT-A-ARM
-
247512492 SCREWSCREW
-
257552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
267555832 WASHERWASHER
-
277518033 BOLTBOLT
