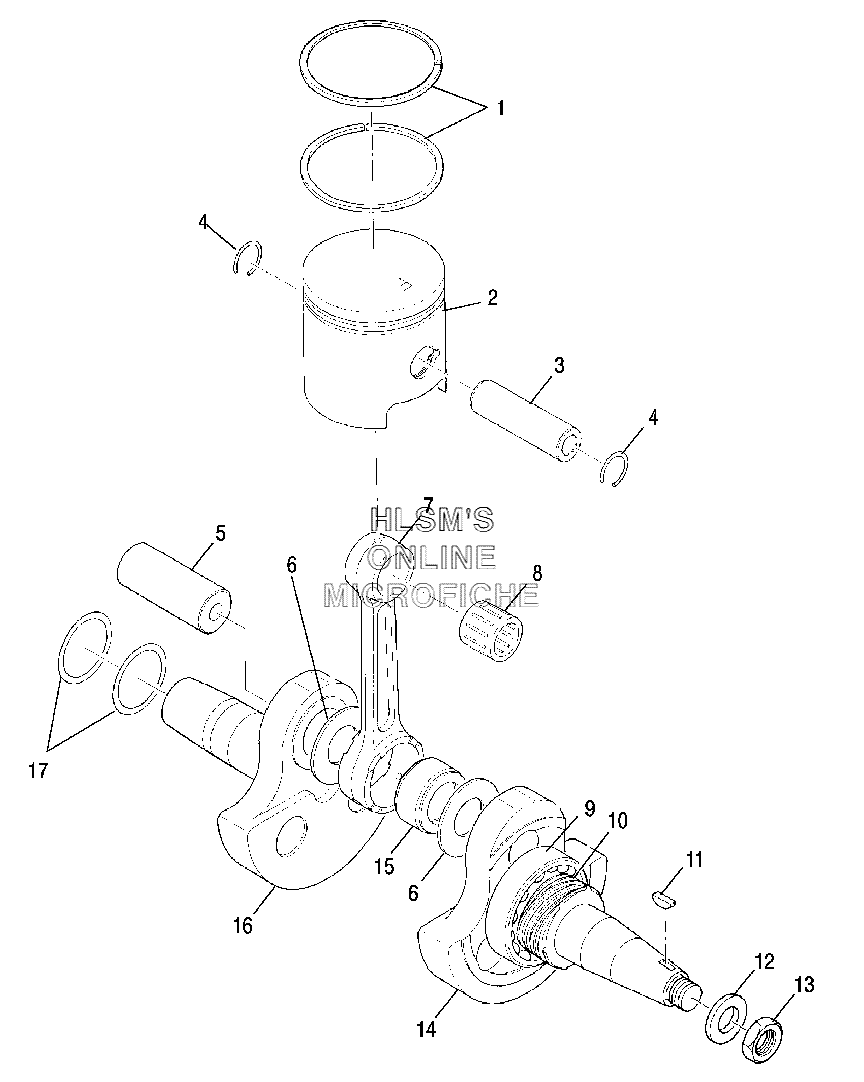

CRANKSHAFT W/ PISTON для Polaris Trail Blazer (A06BA25CA) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3083546 SET, PISTON, RING (STD)
    SET, PISTON, RING (STD)
  • 1
    3083678 SET, PISTON, RING (.010''/.25MM O/S)
    SET, PISTON, RING (.010''/.25MM O/S)
  • 1
    3083717 SET, PISTON, RING (.020''/.50MM O/S)
    SET, PISTON, RING (.020''/.50MM O/S)
  • 1
    3083974 SET, PISTON, RING (.040''/1.00MM O/S)
    SET, PISTON, RING (.040''/1.00MM O/S)
  • 2
    3083942 SET, PISTON (STD) (INCL. 4)
    SET, PISTON (STD) (INCL. 4)
  • 2
    3083943 SET, PISTON (.010''/.25MM O/S) (INCL. 4)
    SET, PISTON (.010''/.25MM O/S) (INCL. 4)
  • 2
    3083944 SET, PISTON (.020''/.50MM O/S) (INCL. 4)
    SET, PISTON (.020''/.50MM O/S) (INCL. 4)
  • 2
    3083972 SET, PISTON (.040''/1.00MM O/S) (INCL. 4)
    SET, PISTON (.040''/1.00MM O/S) (INCL. 4)
  • 3
    3083838 PIN, PISTON
    PIN, PISTON
  • 4
    3083839 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 5
    3082796 CRANK PIN (PTO)
    CRANK PIN (PTO)
  • 6
    3083804 SPACER
    SPACER
  • 7
    3082790 ROD CONNECTING
    ROD CONNECTING
  • 8
    3083626 BEARING, SMALL END
    BEARING, SMALL END
  • 9
    3084580 BEARING, BALL
    BEARING, BALL
  • 10
    3083745 GEAR, CRANKSHAFT
    GEAR, CRANKSHAFT
  • 11
    3080130 KEY WOODRUFF
    KEY WOODRUFF
  • 12
    3086767 WASHER
    WASHER
  • 13
    3083905 NUT, LOCK
    NUT, LOCK
  • 14
    3087056 CRANKSHAFT ASSY. (INCL. 5-7, 9, 10, 14-16)
    CRANKSHAFT ASSY. (INCL. 5-7, 9, 10, 14-16)
  • 14
    3083899 CRANKSHAFT #1
    CRANKSHAFT #1
  • 15
    3083803 BEARING, LARGE END
    BEARING, LARGE END
  • 16
    3085891 CRANKSHAFT 2
    CRANKSHAFT 2
  • 17
    3086765 SPACER-1 (0.2MM)
    SPACER-1 (0.2MM)
  • 17
    3085892 SPACER 3 (0.1MM)
    SPACER 3 (0.1MM)
