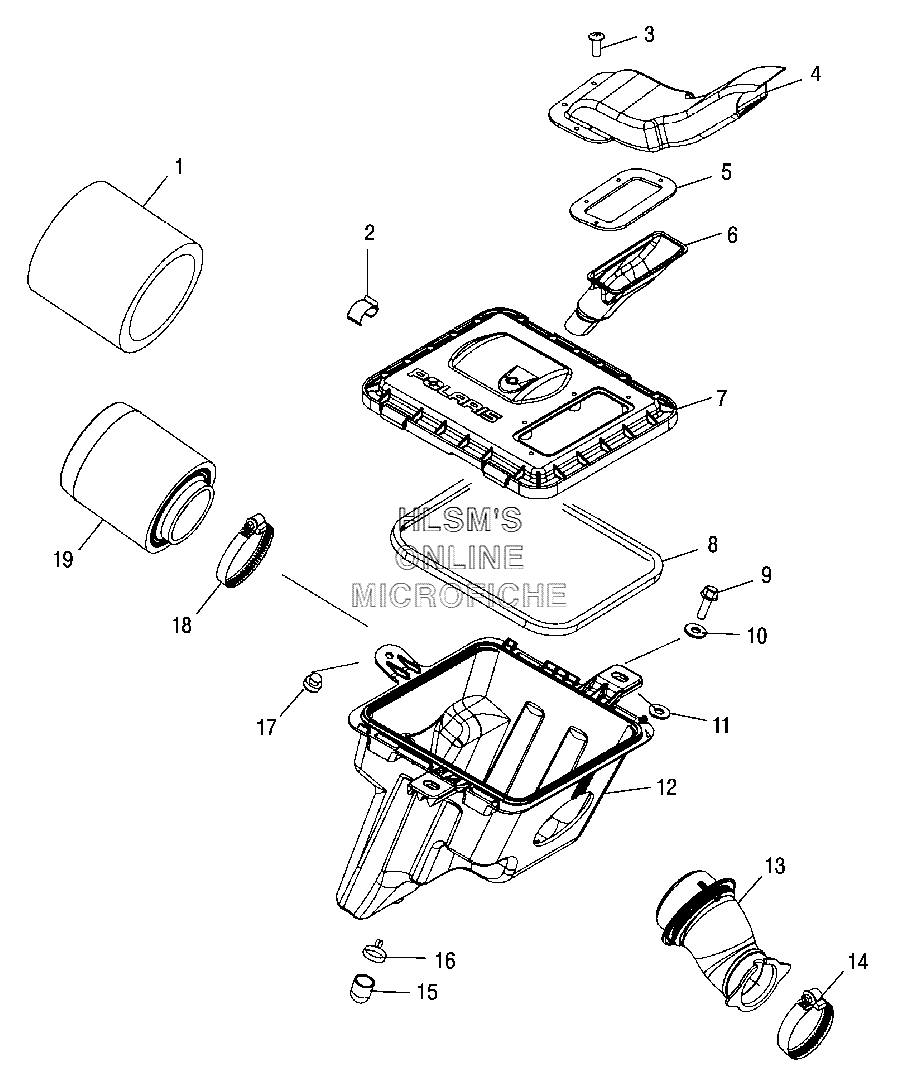

AIR BOX ASSY. для Polaris Trail Blazer (A06BA25CA) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5811660 FILTER, PRECLEAN.SLEEVE
    FILTER, PRECLEAN.SLEEVE
  • 2
    7670117 CLIP
    CLIP
  • 3
    7517317 SCREW
    SCREW
  • 4
    5433052 DUCT, AIRBOX COVER
    DUCT, AIRBOX COVER
  • 5
    5411422 GASKET, INTAKE
    GASKET, INTAKE
  • 6
    5433740 BAFFLE, AIR INLET
    BAFFLE, AIR INLET
  • 7
    5433051 COVER, AIRBOX
    COVER, AIRBOX
  • 8
    5811659 SEAL, AIRBOX COVER
    SEAL, AIRBOX COVER
  • 9
    7515180 SCREW
    SCREW
  • 10
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 11
    7555716 WASHER
    WASHER
  • 12
    5433050 BOX, AIR INTAKE
    BOX, AIR INTAKE
  • 13
    1253389 CARB BOOT ASSY
    CARB BOOT ASSY
  • 14
    7080140 CLAMP
    CLAMP
  • 15
    5411765 CAP, DRAIN
    CAP, DRAIN
  • 16
    7080865 CLAMP, SINGLE WIRE
    CLAMP, SINGLE WIRE
  • 17
    5411766 BUMPER, RUBBER
    BUMPER, RUBBER
  • 18
    7080707 CLAMP, BAND, NARROW
    CLAMP, BAND, NARROW
  • 19
    1253355 FILTER ASSY (INCL. 1)
    FILTER ASSY (INCL. 1)
