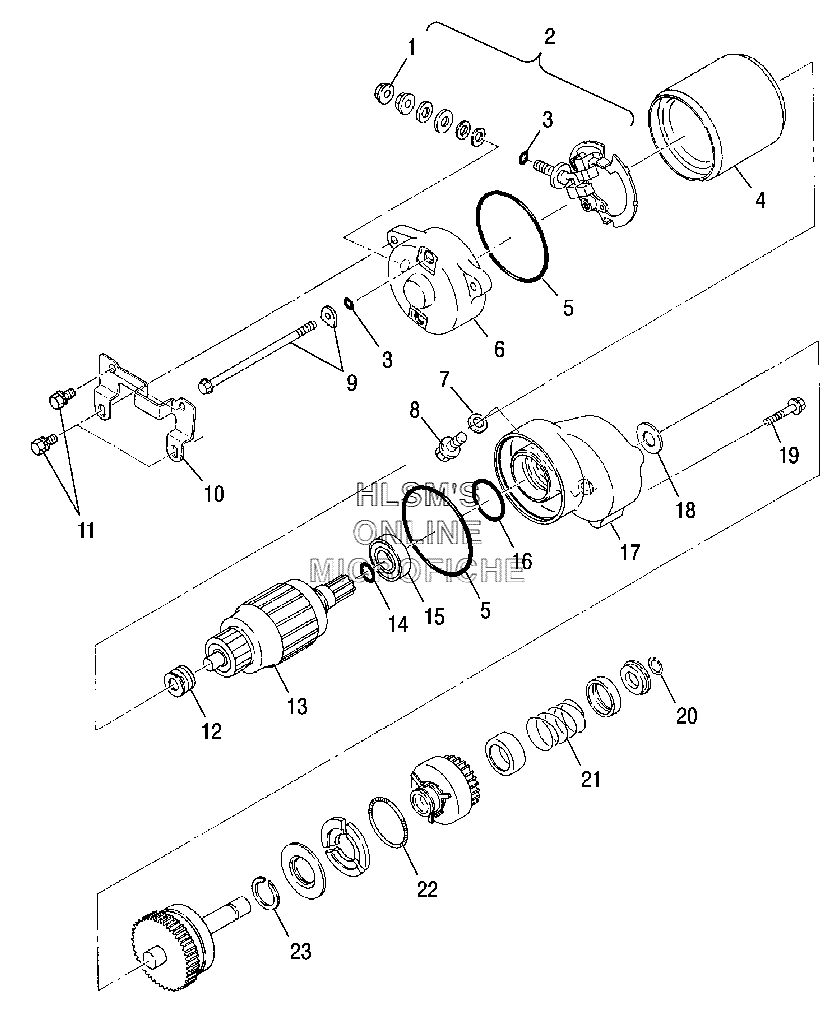

STARTING MOTOR для Polaris Trail Blazer (A06BA25CA) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3088166 NUT, FLANGE
    NUT, FLANGE
  • 2
    3088169 CARBON BRUSH SET
    CARBON BRUSH SET
  • 3
    3088165 O-RING
    O-RING
  • 4
    3087043 STARTING MOTOR ASSY (INCL. 1-6, 9, 12-17, 20-23)
    STARTING MOTOR ASSY (INCL. 1-6, 9, 12-17, 20-23)
  • 4
    3085393 STARTER MOTOR ASSY (INCL. 1-3, 5, 6, 9, 12-17)
    STARTER MOTOR ASSY (INCL. 1-3, 5, 6, 9, 12-17)
  • 5
    3088162 RING, RUBBER
    RING, RUBBER
  • 6
    3085032 COVER, REAR, STARTER
    COVER, REAR, STARTER
  • 7
    3082758 WASHER, FLAT
    WASHER, FLAT
  • 8
    3086782 BOLT, FLANGE
    BOLT, FLANGE
  • 9
    3084407 BOLT, THROUGH
    BOLT, THROUGH
  • 10
    3083650 BRACKET
    BRACKET
  • 11
    3081665 BOLT AND WASHER ASSY
    BOLT AND WASHER ASSY
  • 12
    3083754 WASHER SET
    WASHER SET
  • 13
    3084404 ARMATURE ASSY (INCL. 14, 15)
    ARMATURE ASSY (INCL. 14, 15)
  • 14
    3083934 O-RING
    O-RING
  • 15
    3083777 BALL BEARING
    BALL BEARING
  • 16
    3083741 O RING
    O RING
  • 17
    3085305 COVER, FRONT (INCL. 16)
    COVER, FRONT (INCL. 16)
  • 18
    3240134 WASHER
    WASHER
  • 19
    3082038 BOLT AND WASHER ASSY
    BOLT AND WASHER ASSY
  • 20
    3084409 CLIP
    CLIP
  • 21
    3084410 SPRING, RETURN
    SPRING, RETURN
  • 22
    3084411 SPRING, WEIGHT
    SPRING, WEIGHT
  • 23
    3084412 CLIP
    CLIP
  • -
    3087030 GEAR SHAFT ASSY (INCL. 20-23)
    GEAR SHAFT ASSY (INCL. 20-23)
