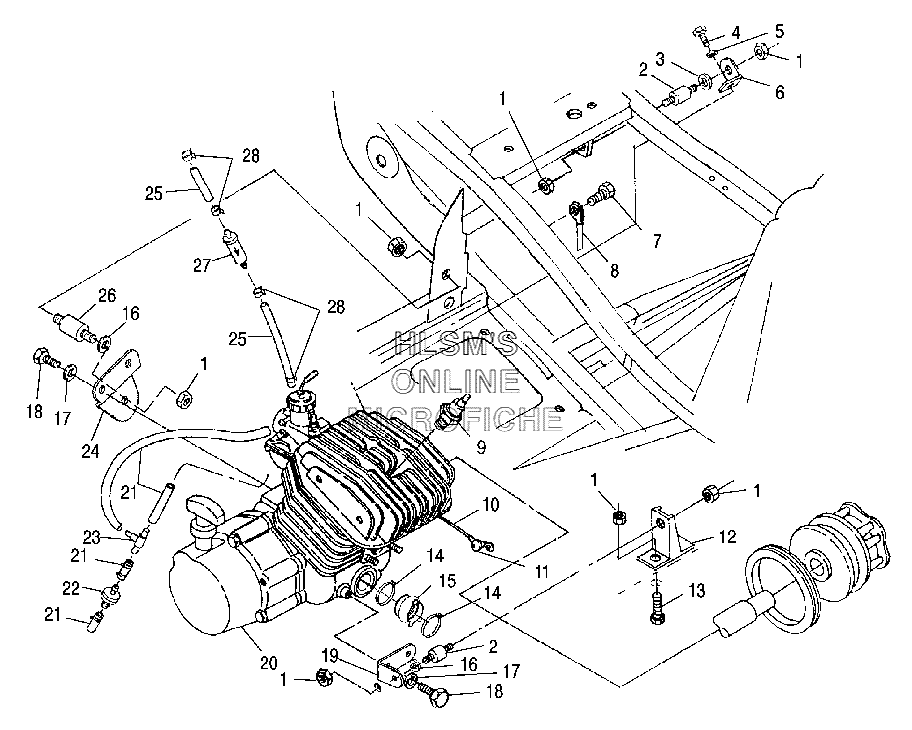

MOUNTING - ENGINE для Polaris Trail Blazer (A06BA25CA) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7547108 NUT
    NUT
  • 2
    3110026 MOUNT, MOTOR
    MOUNT, MOTOR
  • 3
    5430802 INSULATOR, MOTOR MOUNT
    INSULATOR, MOTOR MOUNT
  • 4
    7512315 BOLT
    BOLT
  • 5
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 6
    5248291 BRACKET-ENGINE MOUNT (TOP)
    BRACKET-ENGINE MOUNT (TOP)
  • 7
    7517386 SCREW
    SCREW
  • 8
    4010132 CABLE, GROUND-ENGINE
    CABLE, GROUND-ENGINE
  • 9
    3070156 PLUG, SPARK, NGK BR8ES
    PLUG, SPARK, NGK BR8ES
  • 10
    4010129 CABLE, SOL/START
    CABLE, SOL/START
  • 11
    5410346 INSUL.CABLE SOL
    INSUL.CABLE SOL
  • 12
    1040687-067 MOUNT, FRONT ENGINE (BLACK)
    MOUNT, FRONT ENGINE (BLACK)
  • 13
    7515481 BOLT
    BOLT
  • 14
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 15
    5412487 BOOT-CLUTCH, INTAKE
    BOOT-CLUTCH, INTAKE
  • 16
    7555823 WASHER
    WASHER
  • 17
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 18
    7512490 SCREW
    SCREW
  • 19
    5247947 BRACKET-ENGINE MOUNT (FRONT)
    BRACKET-ENGINE MOUNT (FRONT)
  • 20
    3089533 ENGINE (SHORT BLOCK)
    ENGINE (SHORT BLOCK)
  • 21
    8360009-600 LINE, FUEL (1/8 ID, 600 CM.)
    LINE, FUEL (1/8 ID, 600 CM.)
  • 22
    7051011 VALVE, CHECK
    VALVE, CHECK
  • 23
    7052005 FITTING, TEE
    FITTING, TEE
  • 24
    5247948 BRACKET-ENGINE MOUNT (REAR)
    BRACKET-ENGINE MOUNT (REAR)
  • 25
    8450003-1525 LINE, FUEL (1/4 ID 1525 CM.)
    LINE, FUEL (1/4 ID 1525 CM.)
  • 26
    3110028 MOUNT, ENGINE
    MOUNT, ENGINE
  • 27
    2530009 FILTER, SMALL, IN-LINE
    FILTER, SMALL, IN-LINE
  • 28
    7080003 CLAMP, HOSE
    CLAMP, HOSE
