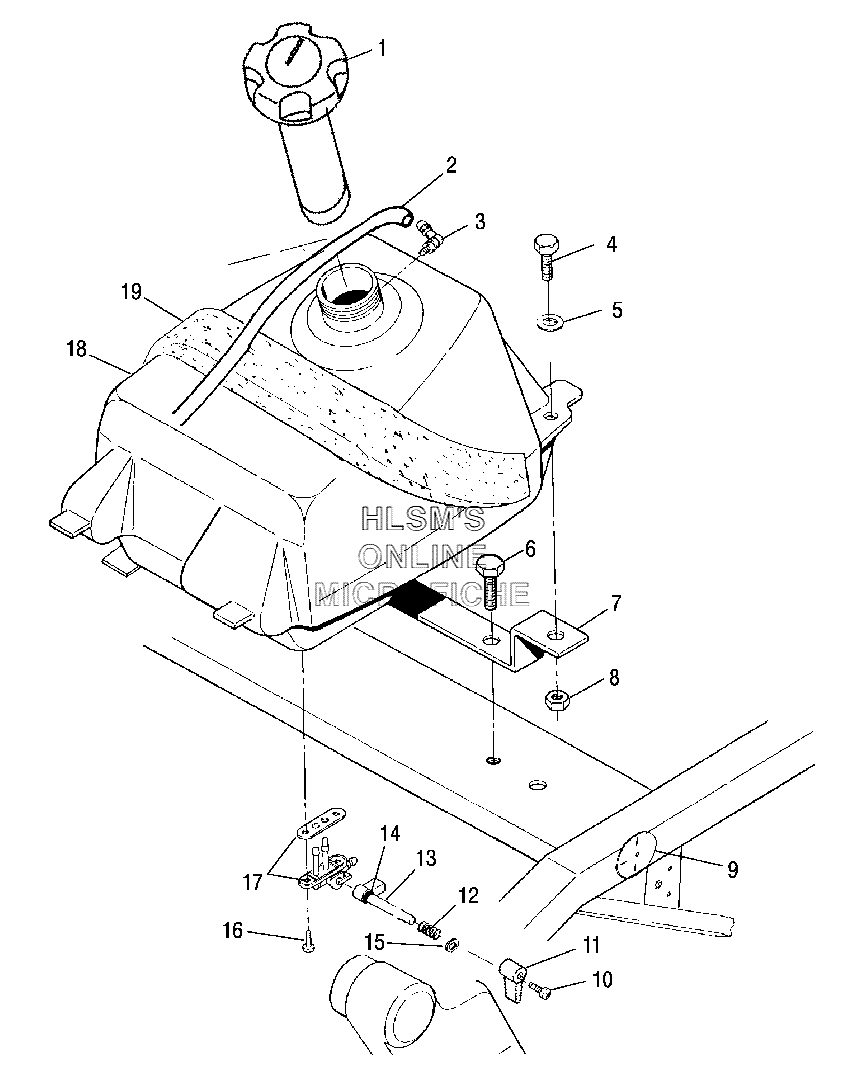

FUEL TANK для Polaris Trail Blazer (A06BA25CA) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2871441 CAP, FUEL GAUGE SHORT
    CAP, FUEL GAUGE SHORT
  • 2
    8360009-600 LINE, FUEL (1/8 ID, 600 CM.)
    LINE, FUEL (1/8 ID, 600 CM.)
  • 3
    5431053 VENT, TANK
    VENT, TANK
  • 4
    7512310 SCREW
    SCREW
  • 5
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 6
    7512208 SCREW
    SCREW
  • 7
    5220916-067 BRACKET, TANK MOUNT (REAR/BLACK)
    BRACKET, TANK MOUNT (REAR/BLACK)
  • 8
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 9
    7074637 DECAL FUEL LEVER DISC
    DECAL FUEL LEVER DISC
  • 10
    7511840 SCREW
    SCREW
  • 11
    5431021 LEVER, FUEL
    LEVER, FUEL
  • 12
    7041209 SPRING, LEVER COMPRESS
    SPRING, LEVER COMPRESS
  • 13
    5431391 EXT., FUEL LEVER
    EXT., FUEL LEVER
  • 14
    5412423 GROMMET (.50X1.12X.31)
    GROMMET (.50X1.12X.31)
  • 15
    7555726 WASHER
    WASHER
  • 16
    7515136 SCREW
    SCREW
  • 17
    7051006 VALVE ASSY, FUEL (INCL. GASKET)
    VALVE ASSY, FUEL (INCL. GASKET)
  • 17
    5810859 GASKET, FUEL VALVE
    GASKET, FUEL VALVE
  • 18
    2520241 FUEL TANK W/ VALVE ASSY (INCL. 3, 16, 17)
    FUEL TANK W/ VALVE ASSY (INCL. 3, 16, 17)
  • 19
    5811527 SEAL, FOAM
    SEAL, FOAM
