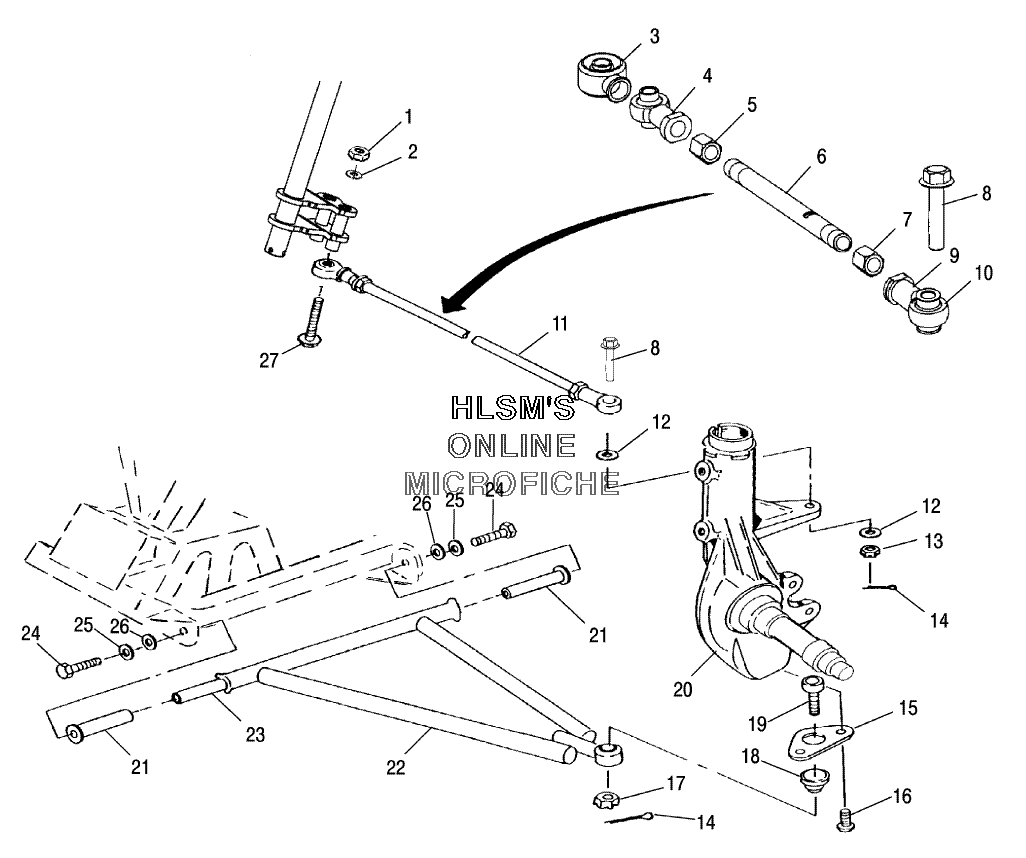

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris MAGNUM 330 2X4 (A05CB32AA) - 2005 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27558403 WASHER, WROUGHTWASHER, WROUGHT
-
35411291 SEAL, BOOT, ROD END, 1/2 INSEAL, BOOT, ROD END, 1/2 IN
-
47061034 ROD END (RIGHT)ROD END (RIGHT)
-
57542711 NUT-JAMNUT-JAM
-
65020927 ROD, TIEROD, TIE
-
77547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
87517909 BOLT-M10X1.25X65, HX WASH HDBOLT-M10X1.25X65, HX WASH HD
-
97061054 ROD, END, 10MM, 1/2-20 (LEFT), 42 DEGROD, END, 10MM, 1/2-20 (LEFT), 42 DEG
-
105411920 BOOT, SEAL, ROD END, 10MMBOOT, SEAL, ROD END, 10MM
-
111821498 TIE ROD ASSY. 1/2-20X13.4 (INCL. 3-9)TIE ROD ASSY. 1/2-20X13.4 (INCL. 3-9)
-
127556099 WASHERWASHER
-
137547177 NUT-M10X1.25-HX-LOCK-YNUT-M10X1.25-HX-LOCK-Y
-
147661203 PIN, COTTERPIN, COTTER
-
155240717 BRACKET, BALLJOINTBRACKET, BALLJOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
177542438 NUT, CASTLENUT, CASTLE
-
185410548 BOOT, RUBBERBOOT, RUBBER
-
197080927 BALL-JOINT, 52 DEGBALL-JOINT, 52 DEG
-
215434551 BUSHING-A-ARM, LONG, (BLACK)BUSHING-A-ARM, LONG, (BLACK)
-
222202276 KIT-A-FRAME (LEFT) (1541864) (INCL. 14, 21, 23-25)KIT-A-FRAME (LEFT) (1541864) (INCL. 14, 21, 23-25)
-
222202277 KIT-A-FRAME (RIGHT) (1541865) (INCL. 14, 21, 23-25)KIT-A-FRAME (RIGHT) (1541865) (INCL. 14, 21, 23-25)
-
235133806 SHAFT, A-ARMSHAFT, A-ARM
-
247512492 SCREWSCREW
-
257552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
267555832 WASHERWASHER
