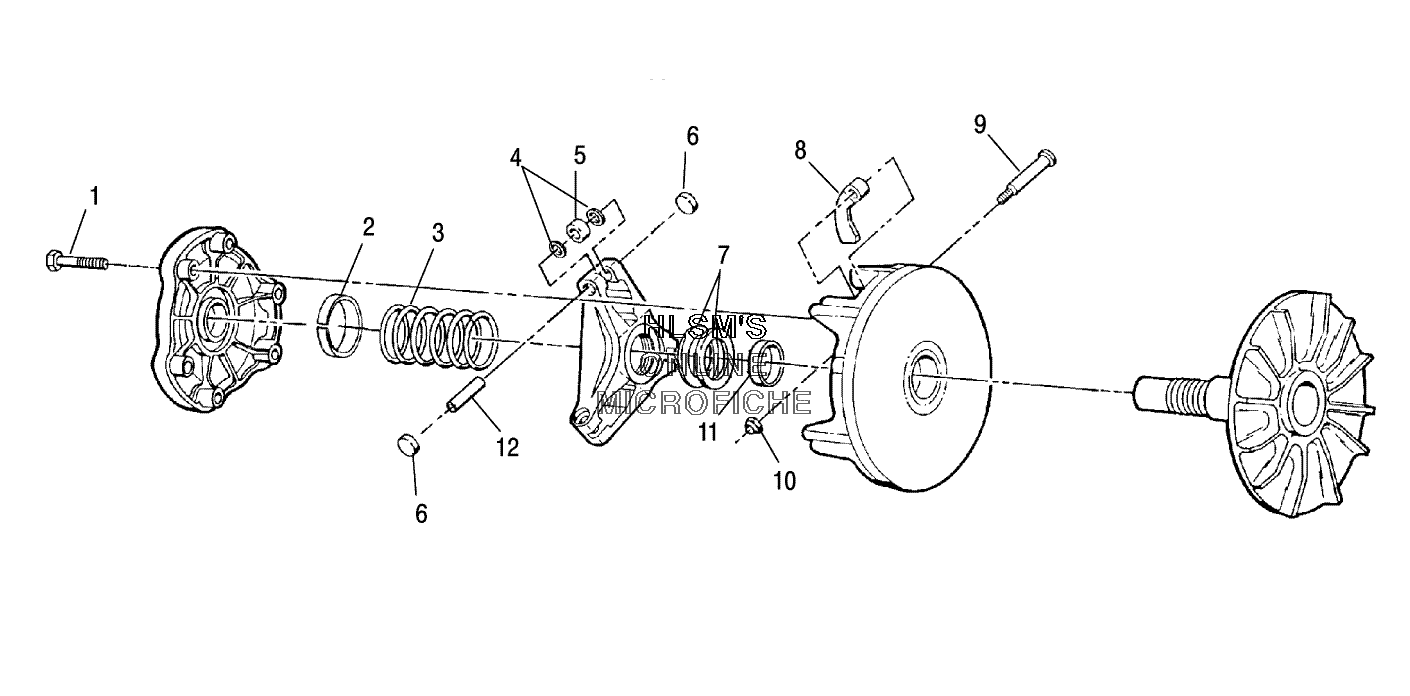

CLUTCH - DRIVE для Polaris MAGNUM 330 2X4 (A05CB32AA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7518062 SCR-1/4-20X1.25 HX/FL GR5
    SCR-1/4-20X1.25 HX/FL GR5
  • 2
    3576510 BEARING, COVER,
    BEARING, COVER,
  • 3
    7042202 SPRING-CLUTCH, BLUE/GRAY
    SPRING-CLUTCH, BLUE/GRAY
  • 4
    5430945 WASHER
    WASHER
  • 5
    1321457 ROLLER/BUSHING ASSY. (3)
    ROLLER/BUSHING ASSY. (3)
  • 6
    5431936 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 7
    5210752 SPACER .020
    SPACER .020
  • 7
    5242981 SPACER .025
    SPACER .025
  • 7
    5210753 SPACER .032
    SPACER .032
  • 7
    5210754 SPACER .050
    SPACER .050
  • 8
    5631356 WEIGHT-SHIFT, 20-40
    WEIGHT-SHIFT, 20-40
  • 9
    7512266 BOLT, SHOULDER
    BOLT, SHOULDER
  • 10
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 11
    3576504 BUSHING, MOVEABLE, 1/2 INCH
    BUSHING, MOVEABLE, 1/2 INCH
  • 12
    5020422 PIN-ROLLER,
    PIN-ROLLER,
  • 12
    1321976 ASSY.-DRIVE CLUTCH, WIDE (INCL. ALL LESS 3, 8)
    ASSY.-DRIVE CLUTCH, WIDE (INCL. ALL LESS 3, 8)
