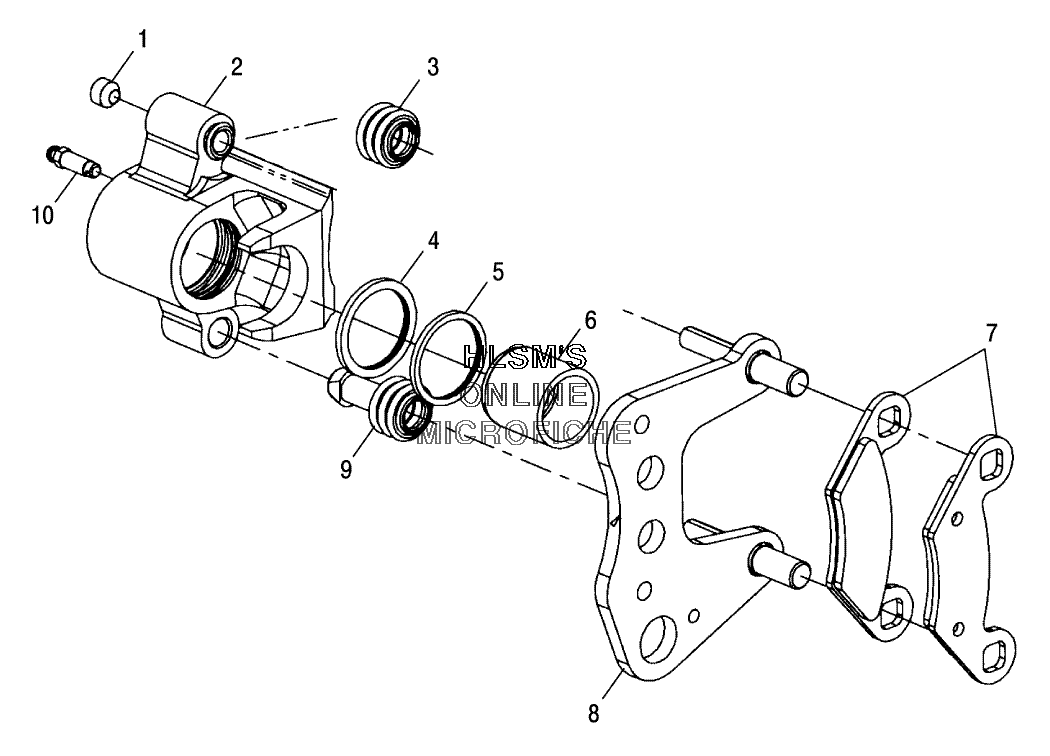

BRAKE - FRONT для Polaris MAGNUM 330 2X4 (A05CB32AA) - 2005 года выпуска
-
№АртикулНазвание
-
17515489 SCR-3/8-24X5/16 SOC SET-YSCR-3/8-24X5/16 SOC SET-Y
-
25134639 CALIPER-BRAKE (LEFT), 1-3/16 (MACH)CALIPER-BRAKE (LEFT), 1-3/16 (MACH)
-
25134640 CALIPER-BRAKE (RIGHT), 1-3/16 (MACH)CALIPER-BRAKE (RIGHT), 1-3/16 (MACH)
-
21930642 KIT, BOOT, FRONT BRAKEKIT, BOOT, FRONT BRAKE
-
35410494 BOOT, PIN SEALBOOT, PIN SEAL
-
45410779 RING, SQUARE, MOLDED .094RING, SQUARE, MOLDED .094
-
55410780 RING, SQUARE, MOLDED .103X.134RING, SQUARE, MOLDED .103X.134
-
65132294 SUBSTITUTED BY 1930665SUBSTITUTED BY 1930665
-
72202412 KIT-FRONT BRAKE PAD ASSY.KIT-FRONT BRAKE PAD ASSY.
-
81910411 MOUNT, ASSY. CALIPERMOUNT, ASSY. CALIPER
-
95410495 BOOT, BUSHINGBOOT, BUSHING
-
107080352 SCREW, BLEEDERSCREW, BLEEDER
-
101910841 CALIPER ASSY. BRAKE (LEFT), 1.187, 9" (INCL. 1-6, 8, 9)CALIPER ASSY. BRAKE (LEFT), 1.187, 9" (INCL. 1-6, 8, 9)
-
101910842 CALIPER ASSY. BRAKE (RIGHT), 1.187, 9" (INCL. 1-6, 8, 9)CALIPER ASSY. BRAKE (RIGHT), 1.187, 9" (INCL. 1-6, 8, 9)
