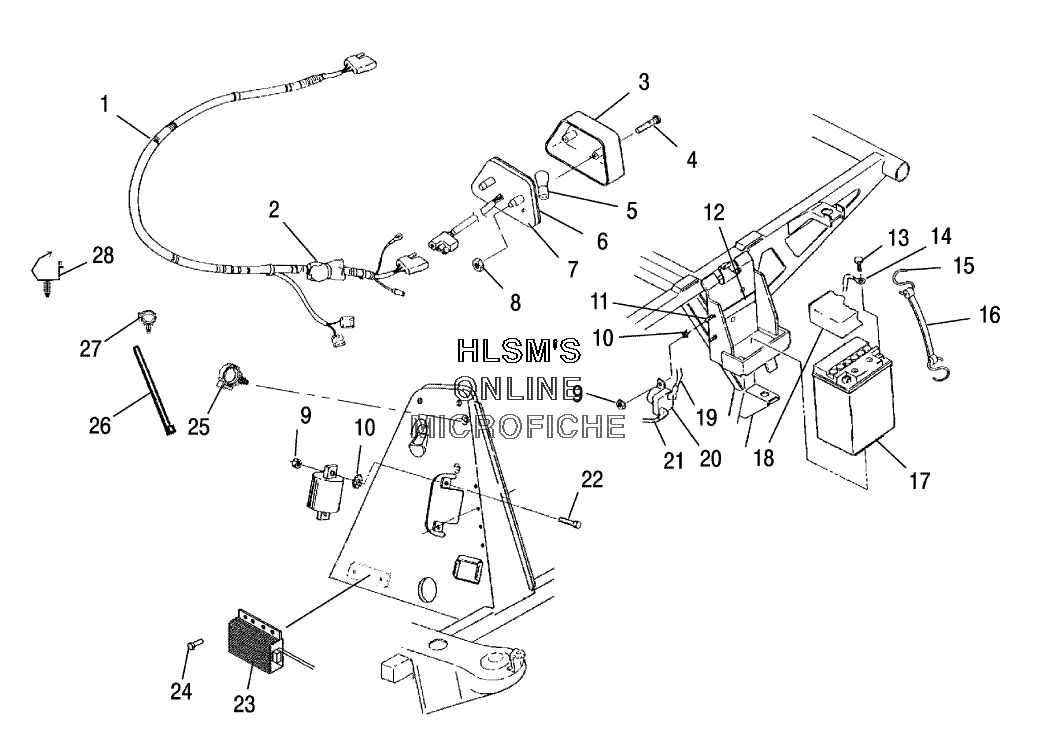

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris MAGNUM 330 2X4 (A05CB32AA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    2410500 HARNESS-MAIN
    HARNESS-MAIN
  • 2
    2200593 KIT, CKT.BRKR, 20 AMP-
    KIT, CKT.BRKR, 20 AMP-
  • 3
    4032046 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 4
    4032029 SCREW
    SCREW
  • 5
    4030043 BULB
    BULB
  • 6
    4032045 GASKET
    GASKET
  • 8
    7670054 NUT, PUSH-ON
    NUT, PUSH-ON
  • 9
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 10
    7571602 WASHER
    WASHER
  • 11
    7512027 SCREW
    SCREW
  • 12
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 13
    2202213 KIT-BATTERY BOLT (LONG)
    KIT-BATTERY BOLT (LONG)
  • 14
    4010095 CABLE, BATT/ENG. (BLACK).
    CABLE, BATT/ENG. (BLACK).
  • 15
    7010032 HOOK-BATTERY STRAP
    HOOK-BATTERY STRAP
  • 16
    5412499 STRAP-BATTERY HOLD DOWN-C
    STRAP-BATTERY HOLD DOWN-C
  • 17
    4010774 BATTERY-14AH, SEALED, CHARGED
    BATTERY-14AH, SEALED, CHARGED
  • 18
    5431769 COVER, BATTERY
    COVER, BATTERY
  • 19
    4010094 CABLE, BATT/SOLENOID, RED
    CABLE, BATT/SOLENOID, RED
  • 21
    4010093 CABLE, SOL/STARTER
    CABLE, SOL/STARTER
  • 22
    7512007 BOLT
    BOLT
  • 23
    4011088 CONTROLLER MODULE-FAN, CIR, REG
    CONTROLLER MODULE-FAN, CIR, REG
  • 24
    7512024 SCREW
    SCREW
  • 25
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 26
    7080138 CABLE TIE
    CABLE TIE
  • 27
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 28
    7670109 CLIP-ROUTING
    CLIP-ROUTING
  • 28
    2410320 ASSY.-TAILLIGHT, 12V, SERIES FIL (INCL. 3-8)
    ASSY.-TAILLIGHT, 12V, SERIES FIL (INCL. 3-8)
