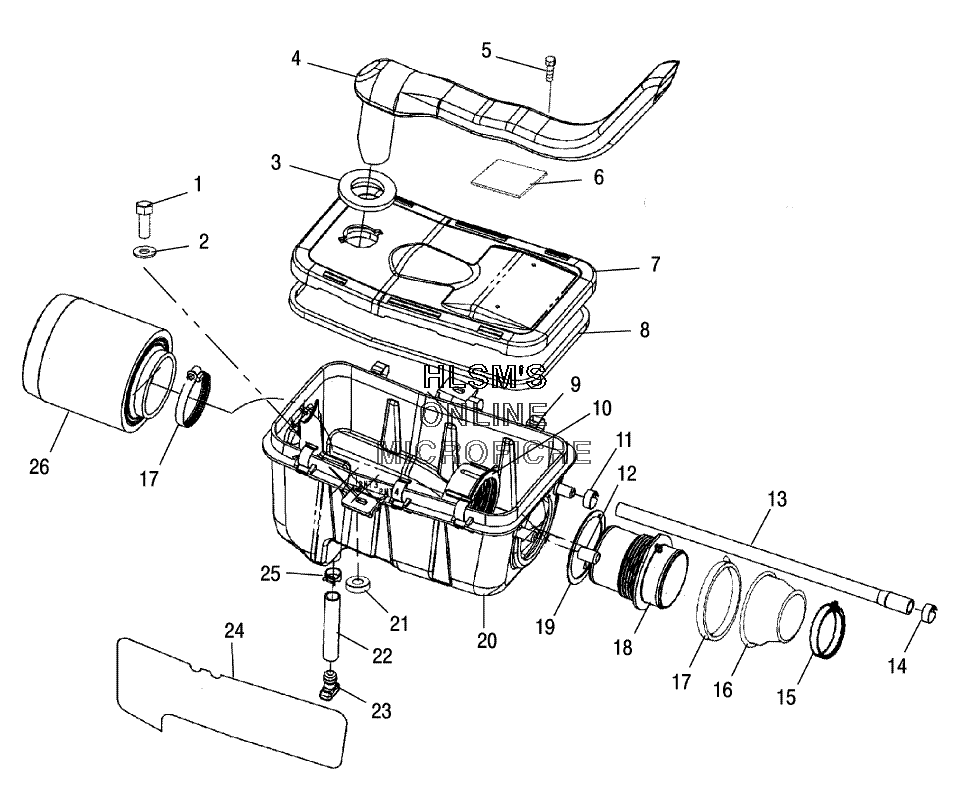

AIR BOX ASSY. для Polaris MAGNUM 330 2X4 (A05CB32AA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7518306 SCR-1/4-20X1.50-HX/W-TAPR-GP-Y
    SCR-1/4-20X1.50-HX/W-TAPR-GP-Y
  • 2
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 3
    5812023 SEAL
    SEAL
  • 4
    5433920 DUCT-INLET
    DUCT-INLET
  • 5
    7517317 SCREW
    SCREW
  • 6
    5810317 SUBSTITUTED BY 8360026
    SUBSTITUTED BY 8360026
  • 7
    5433769 COVER, AIRBOX
    COVER, AIRBOX
  • 8
    5811482 SEAL, COVER
    SEAL, COVER
  • 9
    5242044 CLIP
    CLIP
  • 10
    5432601 COLLAR, CARBURETOR, INLET
    COLLAR, CARBURETOR, INLET
  • 11
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    5433396 CAP, END, 406-12, 3/4(BLACK)
    CAP, END, 406-12, 3/4(BLACK)
  • 13
    5411866 HOSE, BREAHTER .47-.38X13.5"
    HOSE, BREAHTER .47-.38X13.5"
  • 14
    7080694 CLAMP, HOSE, SPRING
    CLAMP, HOSE, SPRING
  • 15
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 16
    5411588 BOOT-CARBURETOR
    BOOT-CARBURETOR
  • 17
    7080413 CLAMP, BAND, NARROW
    CLAMP, BAND, NARROW
  • 18
    5433180 DUCT, CARBURETOR INLET
    DUCT, CARBURETOR INLET
  • 19
    5830128 GASKET, CARBURETOR INLET DUCT
    GASKET, CARBURETOR INLET DUCT
  • 20
    5435758 BOX-AIR INTAKE
    BOX-AIR INTAKE
  • 21
    7556091 SPACER
    SPACER
  • 22
    8450059-100 SUBSTITUTED BY 8450059-150
    SUBSTITUTED BY 8450059-150
  • 23
    5432377 PLUG, TRAP
    PLUG, TRAP
  • 24
    5812111 FOIL (RIGHT)
    FOIL (RIGHT)
  • 25
    7080650 CLAMP, HOSE
    CLAMP, HOSE
