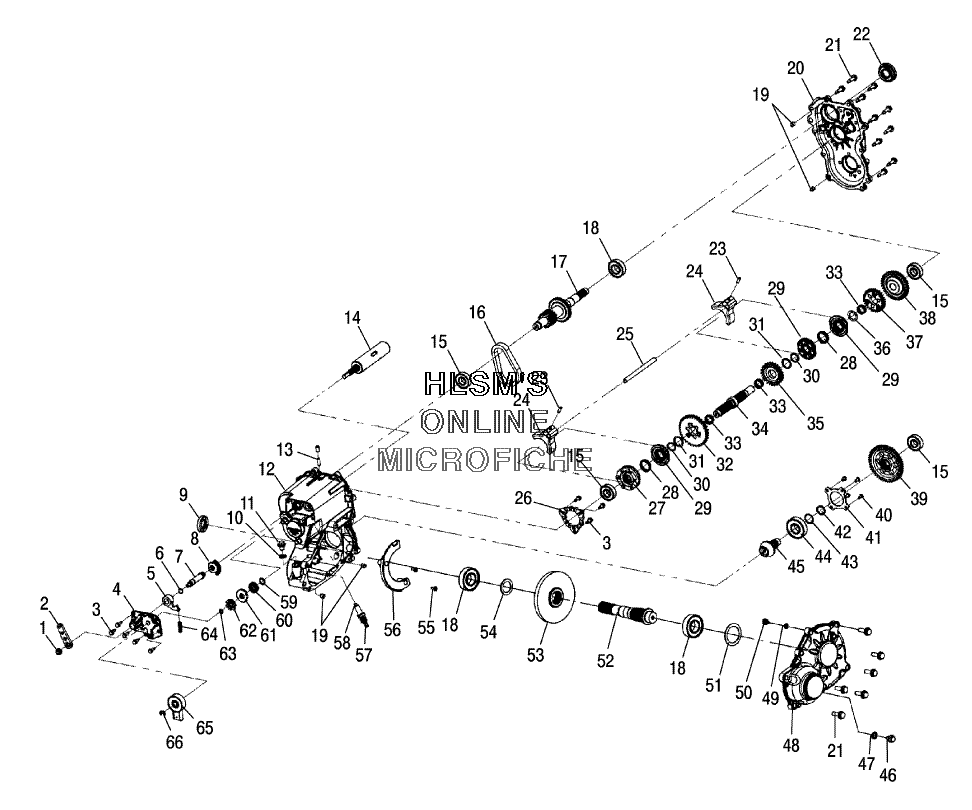

GEARCASE для Polaris MAGNUM 330 2X4 (A05CB32AA) - 2005 года выпуска
-
№АртикулНазвание
-
13233961 NUT-LOCK HEX FLANGE NYLON 5/16NUT-LOCK HEX FLANGE NYLON 5/16
-
23233906 BELLCRANK-SHIFT DRUMBELLCRANK-SHIFT DRUM
-
33233826 SCREWSCREW
-
43233827 COVER-SECTOR GEARSCOVER-SECTOR GEARS
-
53233829 PAWL-DETENTPAWL-DETENT
-
63233869 O-RINGO-RING
-
73233831 SHAFT-SHIFTSHAFT-SHIFT
-
83233832 GEAR-SECTOR, 31T-CUT TO 11TGEAR-SECTOR, 31T-CUT TO 11T
-
93233788 SEAL-TRIPLE LIPSEAL-TRIPLE LIP
-
103233324 WASHERWASHER
-
113233711 PLUG, OIL FILLPLUG, OIL FILL
-
123233867 GEARCASE-MAIN SECTIONGEARCASE-MAIN SECTION
-
133233524 TUBE, VENTTUBE, VENT
-
143233910 DRUM-SHIFTDRUM-SHIFT
-
153233018 BEARINGBEARING
-
163233036 CHAIN, SILENT, 34PCHAIN, SILENT, 34P
-
173234028 SHAFT, INPUTSHAFT, INPUT
-
183233019 BEARINGBEARING
-
193233529 PIPE, KNOCKPIPE, KNOCK
-
203233865 COVER-MAIN (LEFT)COVER-MAIN (LEFT)
-
213233846 SCREW-ROLL FORMINGSCREW-ROLL FORMING
-
223233874 SEAL-DUAL LIPSEAL-DUAL LIP
-
233233859 PIN-DOWELPIN-DOWEL
-
243233858 FORK-SHIFTFORK-SHIFT
-
253233860 RAIL-SHIFT SHAFT, C VERSIONRAIL-SHIFT SHAFT, C VERSION
-
263233915 PLATE-PARK 12 FACEPLATE-PARK 12 FACE
-
27
-
283233849 SPRING-WAVESPRING-WAVE
-
293233875 DOG-ENGAGEMENT, 6 FACEDOG-ENGAGEMENT, 6 FACE
-
303233850 RING-RETAININGRING-RETAINING
-
313233851 WASHERWASHER
-
323234027 GEAR-33T 6-FACEGEAR-33T 6-FACE
-
333233718 BEARING, NDL, SPLIT CAGEBEARING, NDL, SPLIT CAGE
-
343233853 SHAFT-REVERSESHAFT-REVERSE
-
353233854 SPROCKET-24T, 6 FACE ENGAGEMENTSPROCKET-24T, 6 FACE ENGAGEMENT
-
363233855 WASHERWASHER
-
373233856 GEAR-30T, 6 FACEGEAR-30T, 6 FACE
-
383234014 GEAR-36T HELICALGEAR-36T HELICAL
-
393233709 GEAR, HELICAL, 48TGEAR, HELICAL, 48T
-
403233608 SCREWSCREW
-
413233609 COVER, BEARINGCOVER, BEARING
-
423233106 RING, SNAPRING, SNAP
-
433233357 SPACERSPACER
-
443233607 BEARING, BALLBEARING, BALL
-
453233606 SHAFT, 10TSHAFT, 10T
-
463233777 PLUG-HEX FLANGEPLUG-HEX FLANGE
-
473233254 WASHER, PLUGWASHER, PLUG
-
483233713 GEARCASE-FRONT COVERGEARCASE-FRONT COVER
-
493233583 SHIM .450 X .265SHIM .450 X .265
-
503233582 BUTTON, THRUSTBUTTON, THRUST
-
513233611 SHIMSHIM
-
523233622 SHAFT, REAR OUTPUTSHAFT, REAR OUTPUT
-
533233621 GEAR, SPIRAL BEVEL 31TGEAR, SPIRAL BEVEL 31T
-
543233619 WASHER, THRUSTWASHER, THRUST
-
553233747 SCREW-TAPPING, W/LOCK WASHERSCREW-TAPPING, W/LOCK WASHER
-
563233712 DEFLECTOR-OILDEFLECTOR-OIL
-
573234013 CLAMP-TIECLAMP-TIE
-
583233917 SUBASSY.-PARK LOCKOUTSUBASSY.-PARK LOCKOUT
-
593233548 O-RINGO-RING
-
603233839 GEAR-SECTOR, 16TGEAR-SECTOR, 16T
-
613233838 DISC-LOCKOUTDISC-LOCKOUT
-
623233909 STAR-DETENTSTAR-DETENT
-
633233076 O-RINGO-RING
-
643233830 SPRING-COMPRESSIONSPRING-COMPRESSION
-
653233835 SWITCH-ROTARY, 6 PINSWITCH-ROTARY, 6 PIN
-
663233834 RING-RETAININGRING-RETAINING
