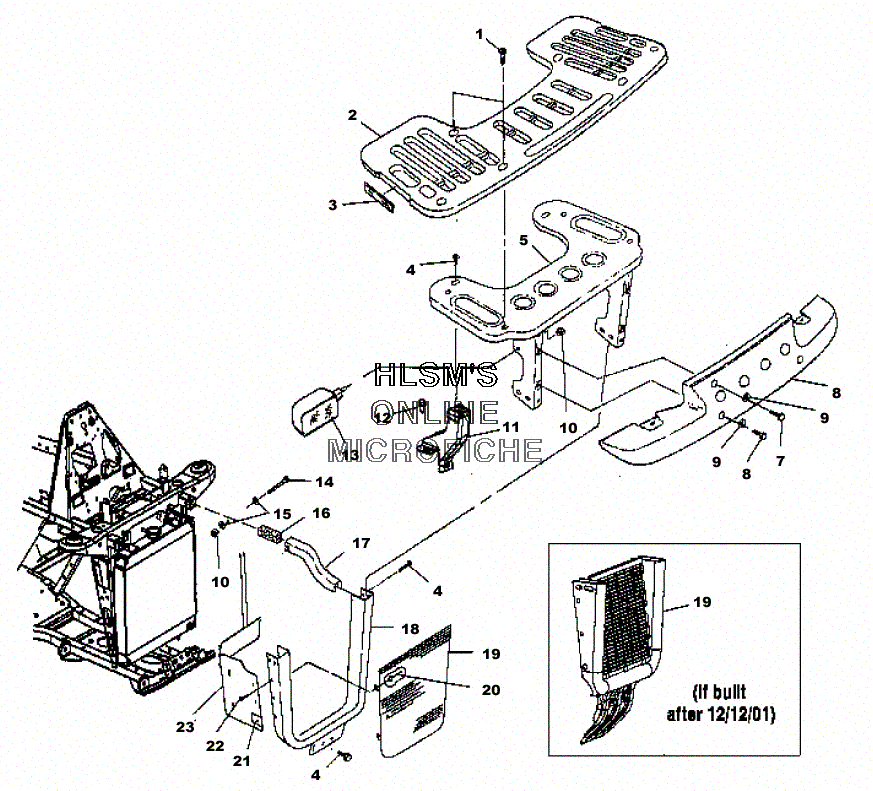

RACK AND BUMPER MOUNTING - FRONT для Polaris XPLORER 400 (A02CG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
22670180-070 RACK,FRONT,BLK (INCL. REF. 3 AND DECAL)RACK,FRONT,BLK (INCL. REF. 3 AND DECAL)
-
37079924 DECAL-REFLECT.2.88,AMBERDECAL-REFLECT.2.88,AMBER
-
47515399 SCREWSCREW
-
52200775 WELD-FRONT RACK SUPPORT,BLKWELD-FRONT RACK SUPPORT,BLK
-
65432155-070 BUMPER,BLK.BUMPER,BLK.
-
77515391 BOLTBOLT
-
87515390 BOLTBOLT
-
97555954 WASHERWASHER
-
107542324 NUTNUT
-
111013744-067 WELD-SUPPORT RACK,FRONT,LH,BLKWELD-SUPPORT RACK,FRONT,LH,BLK
-
111013746-067 WELD-SUPPORT,RACK,FRONT,RH,BLKWELD-SUPPORT,RACK,FRONT,RH,BLK
-
127512232 BOLTBOLT
-
132431011 H/L ASM,LH,30/30WH/L ASM,LH,30/30W
-
132431012 H/L ASM,RH,30/30WH/L ASM,RH,30/30W
-
134030061 BULB,H/L,30/30 W.BULB,H/L,30/30 W.
-
147512329 BOLTBOLT
-
157558402 WASHER STEELWASHER STEEL
-
165810467 PLUG, FRAMEPLUG, FRAME
-
175244729-067 EXTENSION-FRAME,LH,BLKEXTENSION-FRAME,LH,BLK
-
175244730-067 EXTENSION-FRAME,RH,BLKEXTENSION-FRAME,RH,BLK
-
185244731-067 WELD-BRUSH GUARD,BLKWELD-BRUSH GUARD,BLK
-
195240591-067 GRILL,BRUSHGUARD,BLK. (IF BUILT BEFORE 12/12/01)GRILL,BRUSHGUARD,BLK. (IF BUILT BEFORE 12/12/01)
-
191013772-067 WELD-BRUSH GUARD,BLK (IF BUILT AFTER 12/12/01)WELD-BRUSH GUARD,BLK (IF BUILT AFTER 12/12/01)
-
207621330 RIVET, POPRIVET, POP
-
217670094 NUTNUT
-
227512097 SCREWSCREW
-
235433923 SHIELD-RADIATOR,SIDE,LHSHIELD-RADIATOR,SIDE,LH
-
235433924 SHEILD-RADIATOR,SIDE,RHSHEILD-RADIATOR,SIDE,RH
