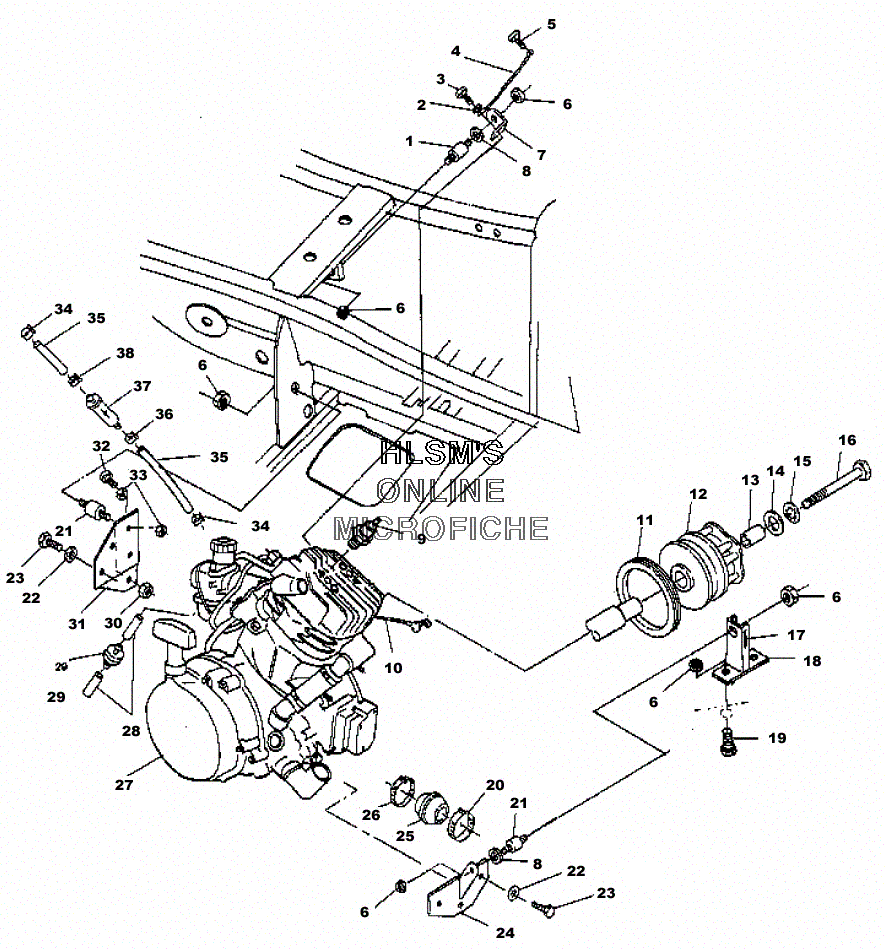

MOUNTING - ENGINE для Polaris XPLORER 400 (A02CG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
13110038 MT.,RUBBER,ENG.MT.,RUBBER,ENG.
-
27552901 LOCK WASHERLOCK WASHER
-
37512315 BOLTBOLT
-
44010132 CABLE,GND-ENGINECABLE,GND-ENGINE
-
57517386 SCREW,SCREW,
-
67547108 NUTNUT
-
75242692-067 BRKT,ENG.MT,TOP,BLK,400BRKT,ENG.MT,TOP,BLK,400
-
87555823 WASHERWASHER
-
93070156 SPARKPLUGSPARKPLUG
-
104010218 CABLE-RED,SOL/STRTR,DBLBOOT34''CABLE-RED,SOL/STRTR,DBLBOOT34''
-
135430261 BUSHING - RETAINING BOLTBUSHING - RETAINING BOLT
-
145210748 WASHERWASHER
-
157575202 WASHER LOCKWASHER LOCK
-
167512566 BOLTBOLT
-
178360012-04 EDGE TRIM-BLACK,04 CMEDGE TRIM-BLACK,04 CM
-
181040687-067 MOUNT,FR.ENGINE,BLK.MOUNT,FR.ENGINE,BLK.
-
197517289 SCREW ,SCREW ,
-
207080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
213110042 MOUNT,RUBBER,ENG.MOUNT,RUBBER,ENG.
-
227552603 WASHERWASHER
-
237512490 SCREWSCREW
-
241040231-067 MOUNT,ENGINEMOUNT,ENGINE
-
255411681 BOOT,CLUTCH INLET,2.4X2.1X5.2BOOT,CLUTCH INLET,2.4X2.1X5.2
-
267080656 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
273085821 ENGINE, SHORT BLOCK (EC38PLE10) (SEE NOTE)ENGINE, SHORT BLOCK (EC38PLE10) (SEE NOTE)
-
288360009-600 FUEL LINE,1/8 ID,600 CM.FUEL LINE,1/8 ID,600 CM.
-
297051011 VENT,CHECKVALVEVENT,CHECKVALVE
-
307542411 NUT LOCKNUT LOCK
-
315242463-067 BRKT,ENG.MT,REAR,BLKBRKT,ENG.MT,REAR,BLK
-
323110048 MT,TORQUE STOP,RUBBERMT,TORQUE STOP,RUBBER
-
337542432 NUT, JAMNUT, JAM
-
347080003 CLAMP,HOSECLAMP,HOSE
-
358450040-600 FUEL LINE,1/4 ID(600 CM.)FUEL LINE,1/4 ID(600 CM.)
-
367080534 CLAMP,SPRING,CLAMP,SPRING,
-
372530008 FILTER FUEL,FILTER FUEL,
