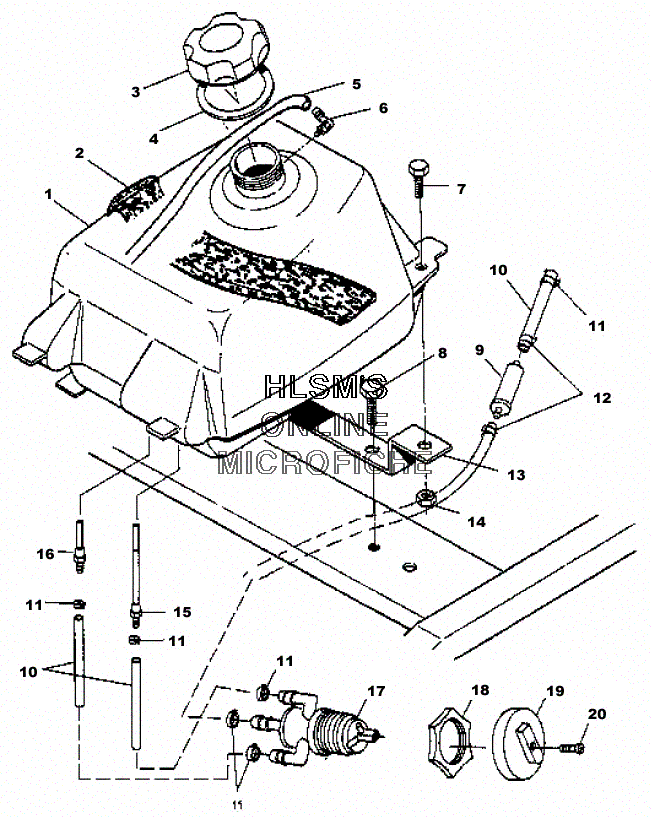

FUEL TANK для Polaris XPLORER 400 (A02CG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
12520183 TANK-FUEL,ASM. (INCL. 6,16,17)TANK-FUEL,ASM. (INCL. 6,16,17)
-
25811052 FOAM, SEALFOAM, SEAL
-
35433687 CAP,GAS TANKCAP,GAS TANK
-
45812123 GASKET,GAS CAPGASKET,GAS CAP
-
58360009-600 FUEL LINE,1/8 ID,600 CM.FUEL LINE,1/8 ID,600 CM.
-
65431053 VENT, TANKVENT, TANK
-
77512310 SCREWSCREW
-
87512208 SCREWSCREW
-
92530008 FILTER FUEL,FILTER FUEL,
-
108450040-600 FUEL LINE,1/4 ID(600 CM.)FUEL LINE,1/4 ID(600 CM.)
-
117080003 CLAMP,HOSECLAMP,HOSE
-
127080534 CLAMP,SPRING,CLAMP,SPRING,
-
135220916-067 BRKT,R.TANK MT,BLK.BRKT,R.TANK MT,BLK.
-
147542324 NUTNUT
-
157052146 FITTING,FUEL OUT,MAIN,YFITTING,FUEL OUT,MAIN,Y
-
167052149 FITTING,FUEL OUT,RES.,ZFITTING,FUEL OUT,RES.,Z
-
177052154 VALVE,3-WAY,HORIZ PORTSVALVE,3-WAY,HORIZ PORTS
-
185432733 NUT,FUELVALVE,ATVNUT,FUELVALVE,ATV
-
195432559 KNOB,FUEL VALVEKNOB,FUEL VALVE
-
207517505 SCREWSCREW
