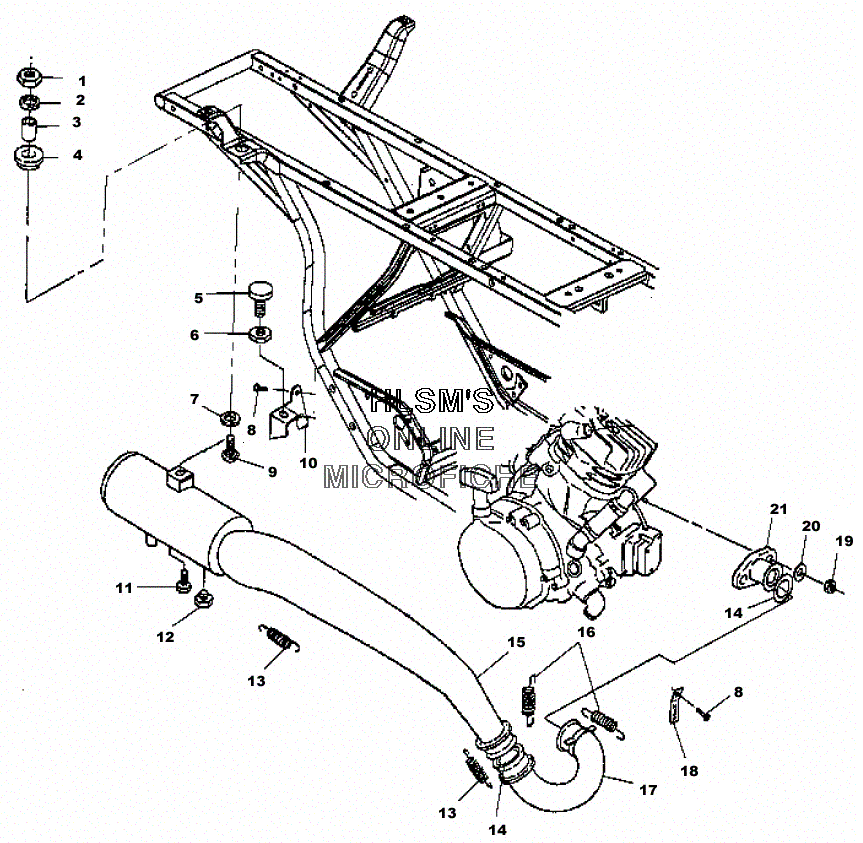

EXHAUST SYSTEM для Polaris XPLORER 400 (A02CG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
17542324 NUTNUT
-
27555716 WASHERWASHER
-
35010192 BUSHING-RES. MT.BUSHING-RES. MT.
-
45410241 DAMPENERDAMPENER
-
53110064 MOUNT,TORQUE-STOPMOUNT,TORQUE-STOP
-
67542301 NUT HEXNUT HEX
-
75410436 WASHER,RUBBERWASHER,RUBBER
-
87517386 SCREW,SCREW,
-
97515316 BOLTBOLT
-
105243199-067 BRKT-EXHAUST MOUNT,XPL 400,BLKBRKT-EXHAUST MOUNT,XPL 400,BLK
-
107547101 NUTSERT-5/16-18(.027-.150),HXYNUTSERT-5/16-18(.027-.150),HXY
-
117512666 BOLTBOLT
-
127052083 PLUG, CLEANOUTPLUG, CLEANOUT
-
137042031 SPRING,EXHAUSTSPRING,EXHAUST
-
145211688 GASKET,EXHAUSTGASKET,EXHAUST
-
151260906-029 EXHAUST,XPLORER 400,BLKEXHAUST,XPLORER 400,BLK
-
167042029 SPRING-EXHAUSTSPRING-EXHAUST
-
171260901-029 HEADPIPE,GEN 4,400,BLKHEADPIPE,GEN 4,400,BLK
-
185222665 TAB, SPRINGSTAB, SPRINGS
-
211260902-029 MANIFOLD,GEN 4,400,BLKMANIFOLD,GEN 4,400,BLK
