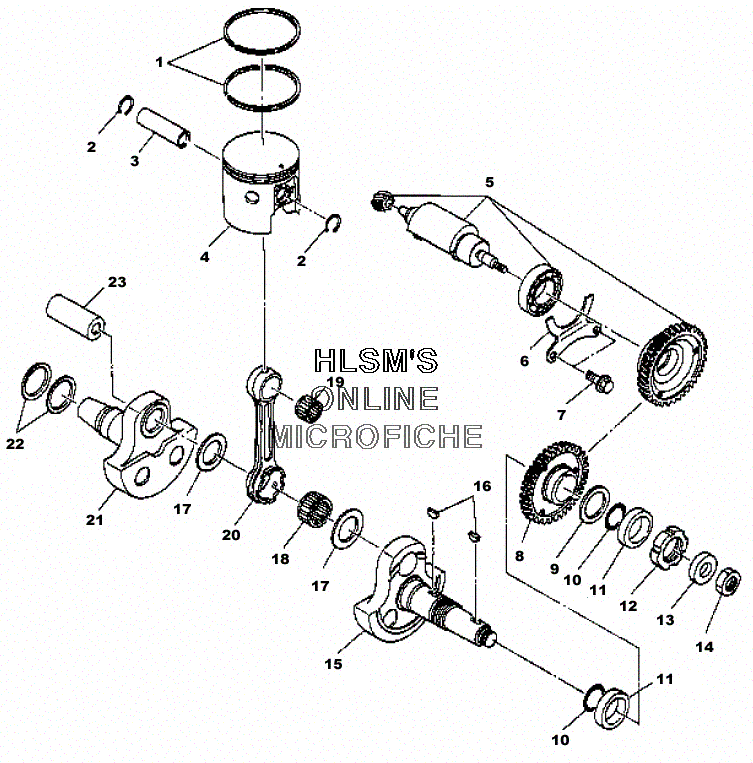

CRANKSHAFT W/ PISTON для Polaris XPLORER 400 (A02CG38CA) - 2002 года выпуска`
-
№АртикулНазвание
-
13084737 RING,PISTON, (STD)RING,PISTON, (STD)
-
13084738 RING,PISTON, (0.25MM O/S)RING,PISTON, (0.25MM O/S)
-
13084739 RING,PISTON, (0.50MM O/S)RING,PISTON, (0.50MM O/S)
-
23084167 CLIP,CLIP,
-
33083838 PIN, PISTONPIN, PISTON
-
43085886 PISTON SET (STD)PISTON SET (STD)
-
43085887 PISTON SET (0.25MM O/S)PISTON SET (0.25MM O/S)
-
43085888 PISTON SET (0.50MM O/S)PISTON SET (0.50MM O/S)
-
53087042 BALANCERBALANCER
-
63086768 PLATEPLATE
-
73084174 BOLT, FLANGEBOLT, FLANGE
-
83084156 GEAR, DRIVEGEAR, DRIVE
-
93086764 WASHER-GUIDEWASHER-GUIDE
-
103084160 O RINGO RING
-
113086763 COLLARCOLLAR
-
123086762 NUT,SLITNUT,SLIT
-
133086767 WASHERWASHER
-
143083905 LOCKNUTLOCKNUT
-
153084776 CRANKSHAFT ASM. (INCL. 15,17,18,20,21,23)CRANKSHAFT ASM. (INCL. 15,17,18,20,21,23)
-
153084149 CRANKSHAFT #1,MAG SIDECRANKSHAFT #1,MAG SIDE
-
163080130 KEY WOODRUFFKEY WOODRUFF
-
173084155 SPACER, CRANK PINSPACER, CRANK PIN
-
183084154 BEARING, LARGE ENDBEARING, LARGE END
-
193084168 BEARING, SMALL ENDBEARING, SMALL END
-
203084153 ROD, CONNECTINGROD, CONNECTING
-
213084777 CRANKSHAFT #2,PTO SIDECRANKSHAFT #2,PTO SIDE
-
223086765 SPACER-1SPACER-1
-
223086766 SPACER-2SPACER-2
-
233084152 PIN, CRANK #1PIN, CRANK #1
