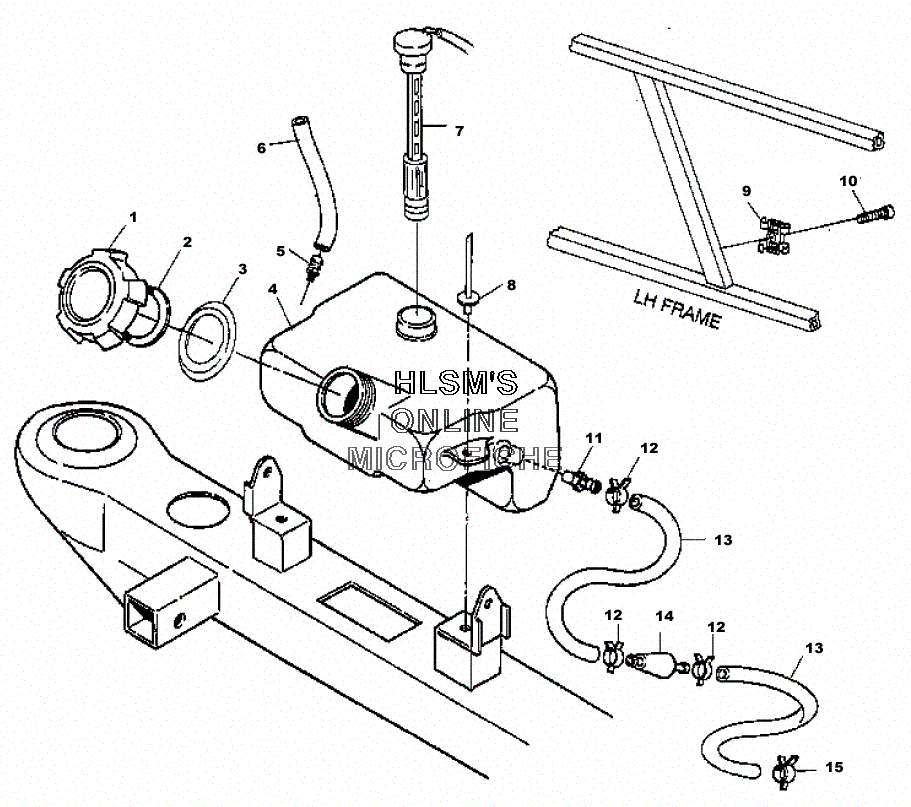

OIL TANK для Polaris XPLORER 400 (A02CG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
15430779 CAP,OIL TANKCAP,OIL TANK
-
25810141 GASKET-OIL CAPGASKET-OIL CAP
-
35410991 GROMMET,OIL TANKGROMMET,OIL TANK
-
45431793 TANK,OIL,DRILLEDTANK,OIL,DRILLED
-
57052077 FITTING,FITTING,
-
68360009-600 FUEL LINE,1/8 ID,600 CM.FUEL LINE,1/8 ID,600 CM.
-
74110265 SENSOR,OIL,W/CONNECOTRSENSOR,OIL,W/CONNECOTR
-
87621460 RIVETRIVET
-
97080525 T-CLIPT-CLIP
-
107517389 SCREWSCREW
-
117052153 FITTING,1/4 HOSEFITTING,1/4 HOSE
-
127080307 CLAMPCLAMP
-
138450003-1525 FUEL LINE,1/4 ID(1525 CM.)FUEL LINE,1/4 ID(1525 CM.)
-
142530009 FILTER,SMALL,IN-LINE,FILTER,SMALL,IN-LINE,
-
157080568 CLAMP,OIL LINE(300 ATV)CLAMP,OIL LINE(300 ATV)
