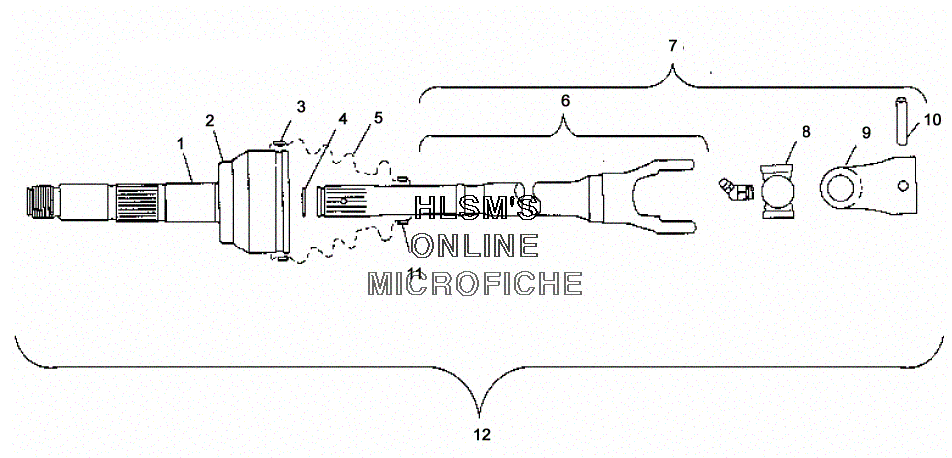

DRIVE SHAFT - REAR (BUILT AFTER 5/01/01) для Polaris DIESEL (A01CH46CA) - 2001 года выпуска`
-
№АртикулНазвание
-
11380114 DRIVESHAFT, W/SLEEVE KIT NEAPCODRIVESHAFT, W/SLEEVE KIT NEAPCO
-
25222299 SLEEVE, SEALSLEEVE, SEAL
-
33260121 CLAMP, BANDCLAMP, BAND
-
47670092 CIRCLIP, DRIVESHAFT NEAPCOCIRCLIP, DRIVESHAFT NEAPCO
-
52201015 BOOT, REPLACEMENT KITBOOT, REPLACEMENT KIT
-
61380060 SHAFT, WELD. (INCL. 4)SHAFT, WELD. (INCL. 4)
-
71380061 CARDAN WELD. (INCL. 4,6,8,9)CARDAN WELD. (INCL. 4,6,8,9)
-
83260104 KIT, CROSS AND BEARINGKIT, CROSS AND BEARING
-
93260101 YOKEYOKE
-
107661913 PIN, SPRINGPIN, SPRING
-
113260123 CLAMP, BANDCLAMP, BAND
-
122200960 DRIVESHAFT, W/SLEEVE KITDRIVESHAFT, W/SLEEVE KIT
