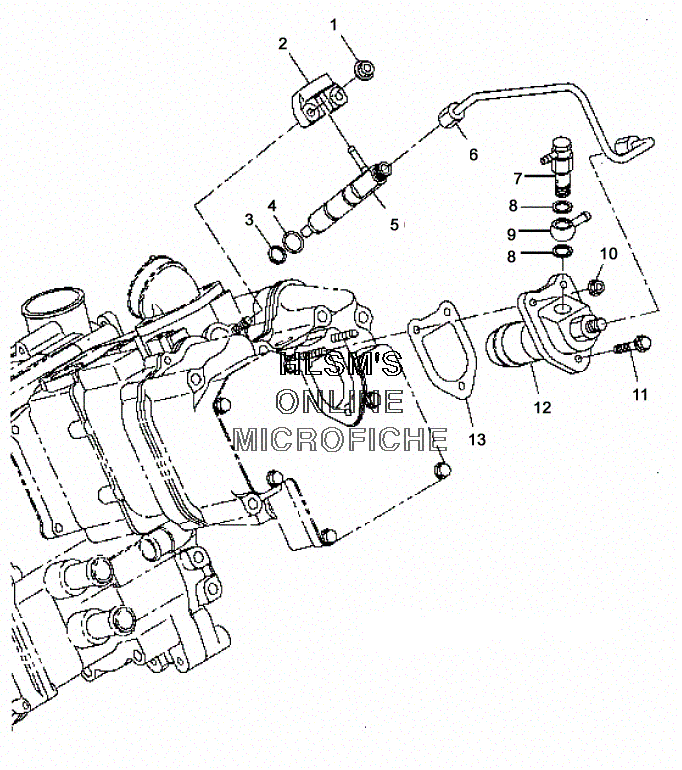

FUEL PUMP для Polaris DIESEL (A01CH46CA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3083856 NUT, FLANGE
    NUT, FLANGE
  • 2
    3087070 BRACKET, NOZZLE
    BRACKET, NOZZLE
  • 3
    3086068 GASKET, NOZZLE
    GASKET, NOZZLE
  • 4
    3086074 O-RING
    O-RING
  • 5
    3086067 NOZZLE, ASSY.
    NOZZLE, ASSY.
  • 6
    3087099 PIPE, INJECTION
    PIPE, INJECTION
  • 7
    3086069 BOLT, EYE
    BOLT, EYE
  • 8
    3086071 GASKET, PUMP
    GASKET, PUMP
  • 9
    3086070 BANJO
    BANJO
  • 10
    3082910 NUT, FLANGE
    NUT, FLANGE
  • 11
    3083891 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 12
    3086063 INJECTION, PUMP, ASSY.
    INJECTION, PUMP, ASSY.
  • 13
    3086064 GASKET (0.1)
    GASKET (0.1)
  • 13
    3086065 GASKET (0.3) (OPT)
    GASKET (0.3) (OPT)
  • 13
    3086066 GASKET (0.2) (OPT)
    GASKET (0.2) (OPT)
