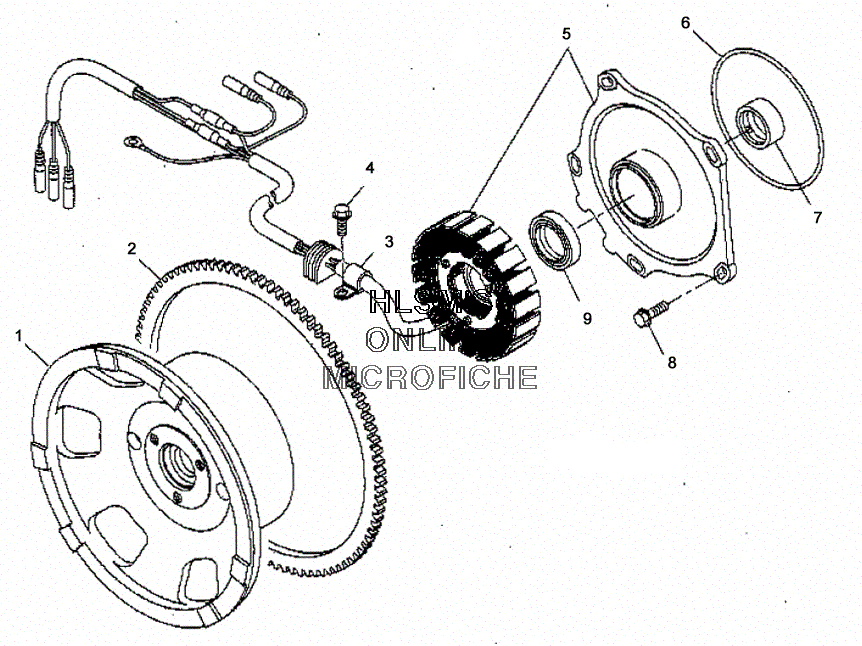

MAGNETO для Polaris DIESEL (A01CH46CA) - 2001 года выпуска
-
№АртикулНазвание
-
13087103 FLYWHEEL ASSY. (INCL. 5)FLYWHEEL ASSY. (INCL. 5)
-
13087104 FLYWHEELFLYWHEEL
-
23086078 GEAR, RINGGEAR, RING
-
33083391 CLAMPCLAMP
-
43083361 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
53086097 STATORSTATOR
-
63084978 O-RINGO-RING
-
73086234 BEARING, METALBEARING, METAL
-
83081657 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
93084973 SEAL, OILSEAL, OIL
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - PARK
- BRAKE - REAR W/ FOOT PEDAL
- CAMSHAFT W/ VALVE ASSY.
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DRIVE SHAFT - REAR (BUILT AFTER 5/01/01)
- DRIVE SHAFT - REAR (BUILT BEFORE 5/01/01)
- DRIVESHAFT - INTERMEDIATE (BUILT AFTER 12/07/00)
- DRIVESHAFT - INTERMEDIATE (BUILT BEFORE 12/07/00)
- DRIVESHAFT - REAR
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FRAME MOUNTING FOR GEAR SELECTOR
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE - CASE AND SNORKLE
- GEARCASE - INTERNAL COMPONENTS
- GOVERNOR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR W/ HEADLIGHT
- HITCH - THREE-POINT A-ARM MOUNTING
- • MAGNETO
- MOUNTING - ENGINE
- OIL FILTER
- OIL PUMP
- OIL TANK
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
