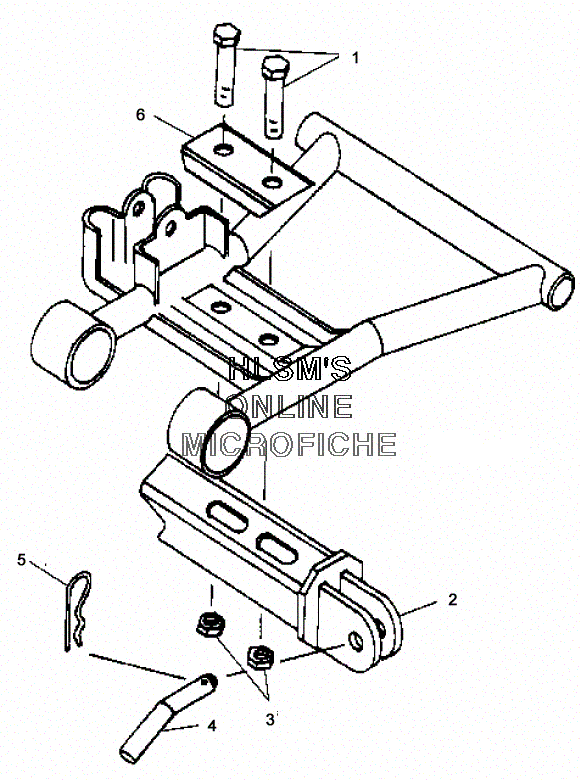

HITCH - THREE-POINT A-ARM MOUNTING для Polaris DIESEL (A01CH46CA) - 2001 года выпуска
-
№АртикулНазвание
-
17517604 BOLTBOLT
-
21013072 MOUNT, A-ARM (LEFT)MOUNT, A-ARM (LEFT)
-
21013073 MOUNT, A-ARM (RIGHT)MOUNT, A-ARM (RIGHT)
-
37547065 NUT, NYLOCKNUT, NYLOCK
-
47661066 PIN, BENT ARM (1/2X1 1/2)PIN, BENT ARM (1/2X1 1/2)
-
57661067 CLIP, HITCHPIN (.148X3 1/16)CLIP, HITCHPIN (.148X3 1/16)
-
65243953 PLATE, TOP A-ARMPLATE, TOP A-ARM
