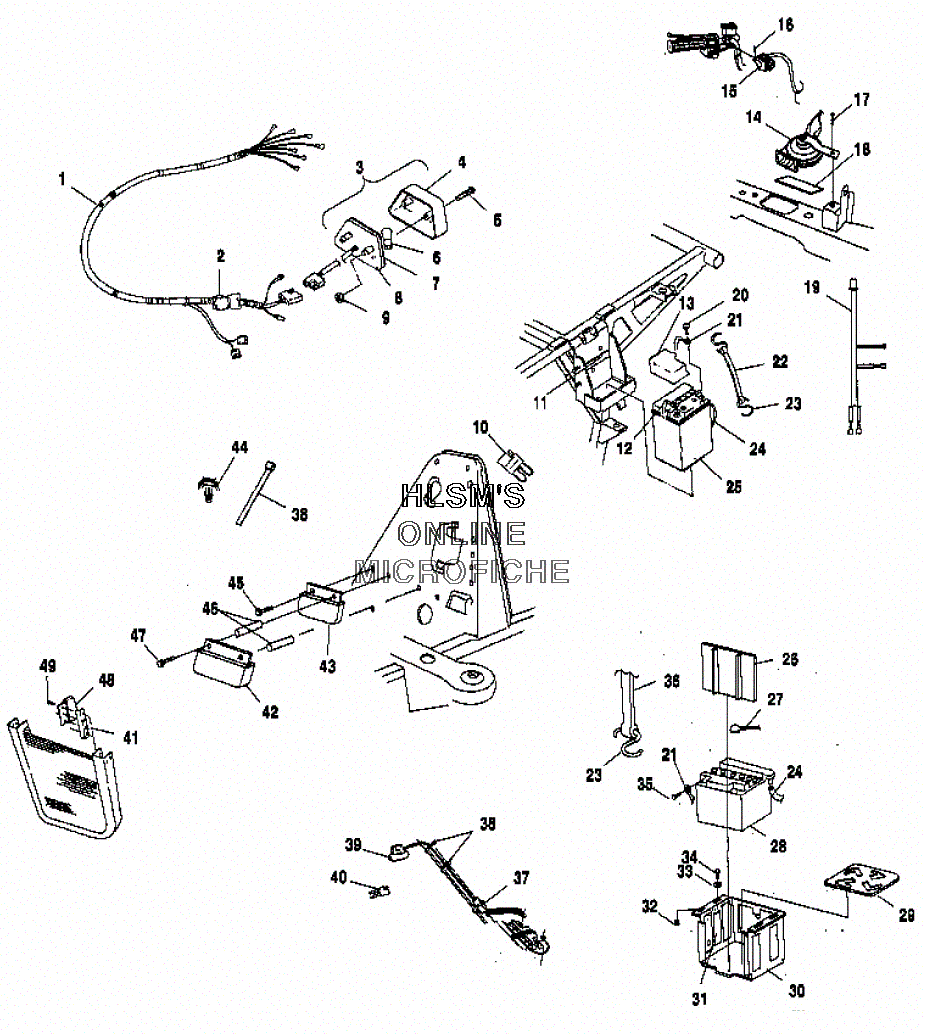

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris DIESEL (A01CH46CA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    2460893 HARNESS, MAINWIRE
    HARNESS, MAINWIRE
  • 2
    2200593 CIRCUIT BREAKER, KIT 20 AMP
    CIRCUIT BREAKER, KIT 20 AMP
  • 3
    2432034 TAIL LIGHT ASSY. (INCL. 4-9)
    TAIL LIGHT ASSY. (INCL. 4-9)
  • 4
    4032046 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 5
    4032029 SCREW, TAILLIGHT
    SCREW, TAILLIGHT
  • 6
    4030043 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 7
    4032045 GASKET, TAILLIGHT
    GASKET, TAILLIGHT
  • 8
    4032064 BACKING, TAILLIGHT
    BACKING, TAILLIGHT
  • 9
    7670054 NUT, PUSH-ON
    NUT, PUSH-ON
  • 10
    2460731 HARNESS, JUMPER, IM TO 3F .180
    HARNESS, JUMPER, IM TO 3F .180
  • 11
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 12
    4010148 CABLE, BATTERY (RED)
    CABLE, BATTERY (RED)
  • 13
    5431769 COVER, BATTERY
    COVER, BATTERY
  • 14
    4010310 HORN
    HORN
  • 15
    4010311 SWITCH, HORN
    SWITCH, HORN
  • 16
    7517386 SCREW
    SCREW
  • 17
    7512057 SCREW
    SCREW
  • 18
    5810317 PAD, FUELTANK BRACKET
    PAD, FUELTANK BRACKET
  • 19
    2460837 HARNESS, ADAPTER, HORN
    HARNESS, ADAPTER, HORN
  • 20
    2200360 BOLT, BATTERY, KIT LONG
    BOLT, BATTERY, KIT LONG
  • 21
    4010199 CABLE BATTERY (BLACK) 15''
    CABLE BATTERY (BLACK) 15''
  • 22
    5410424 STRAP, BATTERY HOLDDOWN
    STRAP, BATTERY HOLDDOWN
  • 23
    7010032 HOOK, BATTERY H/D
    HOOK, BATTERY H/D
  • 24
    5432077 TUBE, BATTERY VENT (OPT)
    TUBE, BATTERY VENT (OPT)
  • 25
    4140006 BATTERY
    BATTERY
  • 26
    5432840 RETAINER, BATTERY
    RETAINER, BATTERY
  • 27
    4010197 CABLE, BATTERY (RED)
    CABLE, BATTERY (RED)
  • 28
    4140012 BATTERY, 30 AMP
    BATTERY, 30 AMP
  • 29
    5811623 PAD, BATTERY
    PAD, BATTERY
  • 30
    1040665-067 BOX, BATTERY (BLACK)
    BOX, BATTERY (BLACK)
  • 31
    5811651 PAD, BATTERY, SIDE
    PAD, BATTERY, SIDE
  • 32
    7542122 NUT, LOCK
    NUT, LOCK
  • 33
    7558301 WASHER
    WASHER
  • 34
    7512130 BOLT
    BOLT
  • 35
    2201155 BOLT, BATTERY, KIT (30 AMP)
    BOLT, BATTERY, KIT (30 AMP)
  • 36
    5411456 STRAP, BATTERY HOLD-DOWN
    STRAP, BATTERY HOLD-DOWN
  • 37
    7080492 STRAP, WEATHER, RESIST (BLACK)
    STRAP, WEATHER, RESIST (BLACK)
  • 38
    7080138 STRAP, PANDUIT
    STRAP, PANDUIT
  • 39
    2410022 POWER ASSY, 12V
    POWER ASSY, 12V
  • 40
    2460442 PIGTAIL, POWER
    PIGTAIL, POWER
  • 41
    5131036 HEATSINK RECT.
    HEATSINK RECT.
  • 42
    4010215 ANTI-REV. ROTATIONAL MOD LR500
    ANTI-REV. ROTATIONAL MOD LR500
  • 43
    4060202 CUTOFF, (ALT.OPR)
    CUTOFF, (ALT.OPR)
  • 44
    7080965 MOUNT, CABLE TIE,.25
    MOUNT, CABLE TIE,.25
  • 45
    7512024 SCREW
    SCREW
  • 46
    5020864 SPACER
    SPACER
  • 47
    7512025 SCREW
    SCREW
  • 48
    4010182 RECTIFIER-REGULATOR,LR-300
    RECTIFIER-REGULATOR,LR-300
  • 49
    7512018 SCREW
    SCREW
