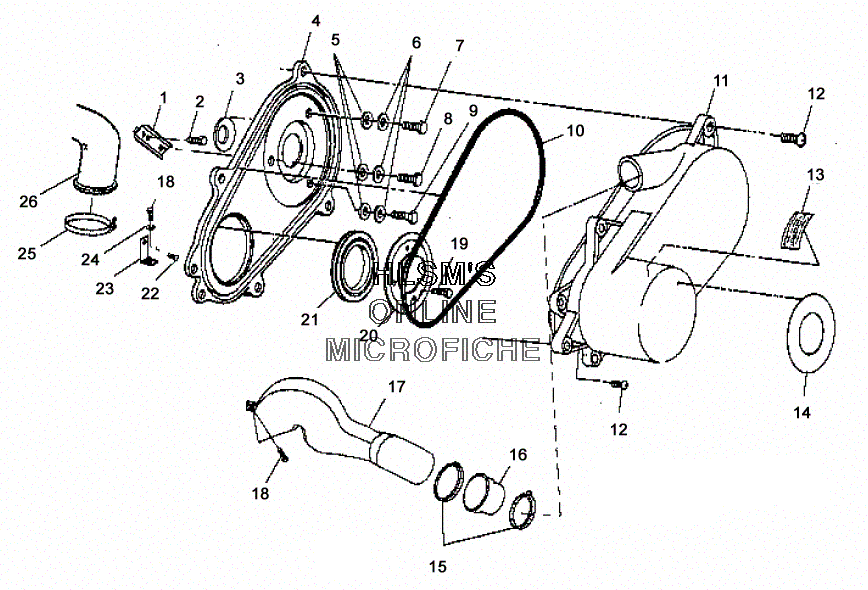

CLUTCH COVER для Polaris DIESEL (A01CH46CA) - 2001 года выпуска
-
№АртикулНазвание
-
11040519-067 BRACKET, CLUTCH COVER (REAR/BLACK)BRACKET, CLUTCH COVER (REAR/BLACK)
-
27512240 BOLTBOLT
-
35410489 SEAL, COVER CASESEAL, COVER CASE
-
42201851 COVER, INNER CLUTCH, KIT SERVICE, 863 (INCL. 10,12,21,22)COVER, INNER CLUTCH, KIT SERVICE, 863 (INCL. 10,12,21,22)
-
57555748 WASHERWASHER
-
67552605 WASHERWASHER
-
77512247 BOLTBOLT
-
87512277 BOLTBOLT
-
97512278 BOLTBOLT
-
105521301 SEAL, CLUTCH COVERSEAL, CLUTCH COVER
-
115433451-070 COVER, CLUTCH-OUTER, HV (BLACK)COVER, CLUTCH-OUTER, HV (BLACK)
-
127512094 SCREWSCREW
-
137078689 DECALDECAL
-
147077666 DECAL ''AUTO./EBS'',CLUTCHDECAL ''AUTO./EBS'',CLUTCH
-
157080761 STRAP, PANDUIT (14'')STRAP, PANDUIT (14'')
-
165411489 BOOT, DUCT, HI-FLOWBOOT, DUCT, HI-FLOW
-
175433980 DUCT, CLUTCH OUTLET (16.6)DUCT, CLUTCH OUTLET (16.6)
-
187512232 BOLTBOLT
-
193084205 SCREW AND WASHERSCREW AND WASHER
-
205242046-067 BRACKET, CLUTCH SEALBRACKET, CLUTCH SEAL
-
215410575 SEAL, COVER CASESEAL, COVER CASE
-
227512095 SCREWSCREW
-
235241156-067 BRACKET CLUTCH COVER (BLACK)BRACKET CLUTCH COVER (BLACK)
-
247555935 WASHERWASHER
-
257080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
