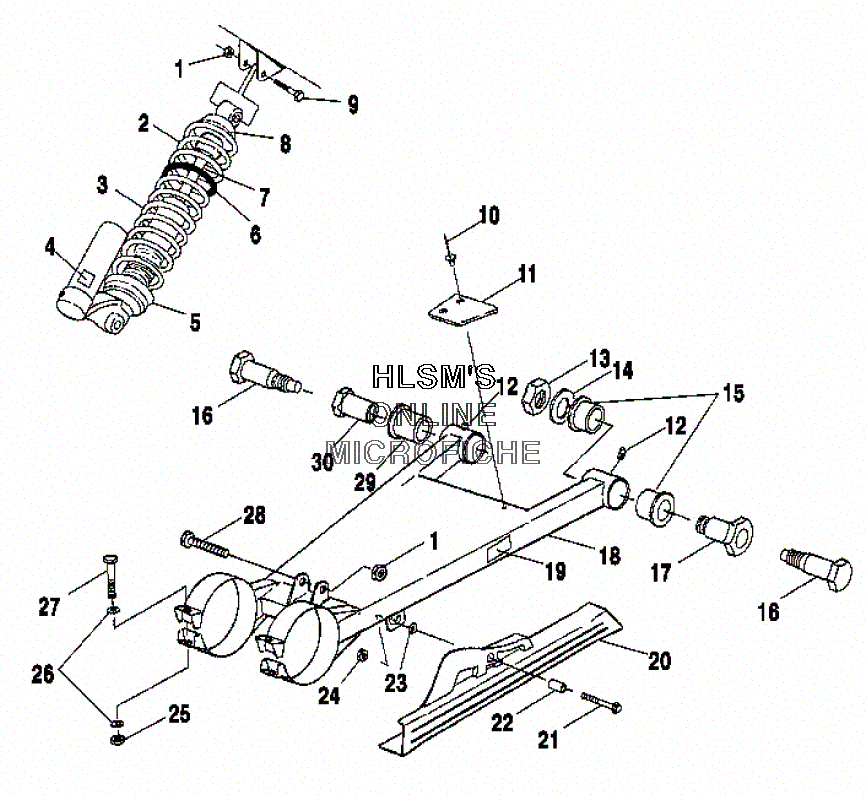

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris SCRABMLER 500 (A00BG50AA) - 2000 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, LOCKNUT, LOCK
-
27041865-067 SPRING, COMP 180#/IN, (BLACK)SPRING, COMP 180#/IN, (BLACK)
-
37041864-067 SPRING, COMP 280#/IN, (BLACK)SPRING, COMP 280#/IN, (BLACK)
-
47075343 DECAL, WARNINGDECAL, WARNING
-
51500278 RING, SPRING PRELOADRING, SPRING PRELOAD
-
65433550 SPACER SPRINGSPACER SPRING
-
77041867 SHOCK, MONO GAS CHSHOCK, MONO GAS CH
-
85631045 RETAINER, SPRINGRETAINER, SPRING
-
97515415 BOLTBOLT
-
107661046 RIVET, POPRIVET, POP
-
115432727 GUIDE, CHAIN PADGUIDE, CHAIN PAD
-
127080510 FITTING, ZERKFITTING, ZERK
-
137547082 NUT, HEXAGON JAMNUT, HEXAGON JAM
-
147556035 WASHER, FLATWASHER, FLAT
-
155433412 BUSHING, SWNG ARM (RIGHT)BUSHING, SWNG ARM (RIGHT)
-
165131697 BOLT, SWING ARM PIVOTBOLT, SWING ARM PIVOT
-
175131696 BUSHING, SWING ARM PIVOT (RIGHT)BUSHING, SWING ARM PIVOT (RIGHT)
-
181541395 SWING ARM ASSY., LNG TRVL (INCL. 12,15,29)SWING ARM ASSY., LNG TRVL (INCL. 12,15,29)
-
197078572 DECAL, ''CHAIN FREEPLAY''DECAL, ''CHAIN FREEPLAY''
-
205432854 GUARD, CHAIN REAR AXLEGUARD, CHAIN REAR AXLE
-
217515304 SCREW, FLANGEDSCREW, FLANGED
-
225332828 BUSHINGBUSHING
-
237558402 WASHER, STEELWASHER, STEEL
-
247542321 NUT, LOCKNUT, LOCK
-
257542503 NUT, LOCKNUT, LOCK
-
267555883 WASHERWASHER
-
277512576 BOLTBOLT
-
287517761 SCREWSCREW
-
295433411 BUSHING, SWING ARM (LEFT)BUSHING, SWING ARM (LEFT)
-
305131695 BUSHING, SWING ARM PIVOT (LEFT)BUSHING, SWING ARM PIVOT (LEFT)
