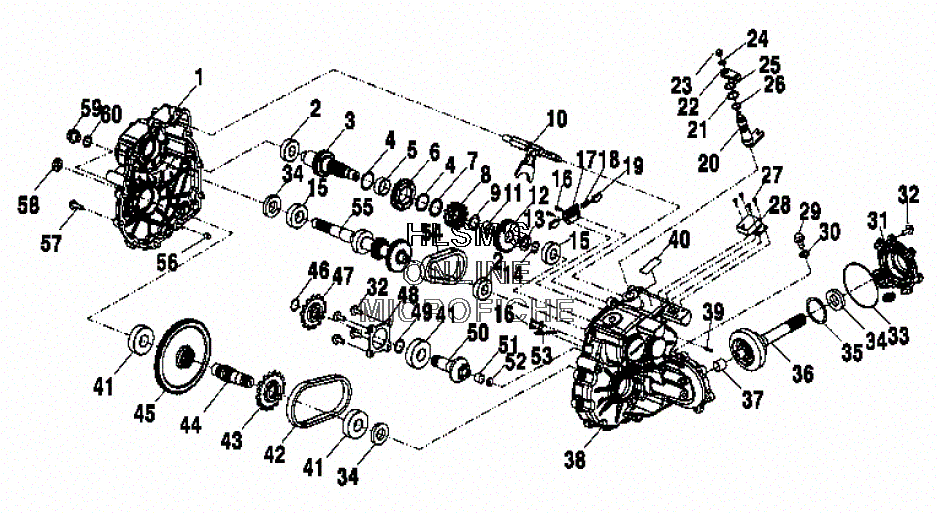

GEARCASE (BUILT BEFORE APRIL 23- 1999) для Polaris SCRABMLER 500 (A00BG50AA) - 2000 года выпуска
-
№АртикулНазвание
-
01341284 GEARCASE, HR CDS SCREW (INCL. 1-59) (BUILT BEFORE APRIL 23, 1999)GEARCASE, HR CDS SCREW (INCL. 1-59) (BUILT BEFORE APRIL 23, 1999)
-
13233632 GEARCASE (LEFT)GEARCASE (LEFT)
-
23233018 BEARINGBEARING
-
33233557 SHAFT, REVERSE (31 TEETH)SHAFT, REVERSE (31 TEETH)
-
43233012 WASHERWASHER
-
53233014 BEARING, NEEDLEBEARING, NEEDLE
-
63233532 SPROCKET (24 TEETH) (12-POINT)SPROCKET (24 TEETH) (12-POINT)
-
73233029 RING, RETAININGRING, RETAINING
-
83233533 DOG, ENGAGE 12-POINT HI/REVDOG, ENGAGE 12-POINT HI/REV
-
93233010 WASHERWASHER
-
103233633 FORK, SHIFT HIGH/REVERSEFORK, SHIFT HIGH/REVERSE
-
113233534 BUSHING, GARLOCKBUSHING, GARLOCK
-
123233535 GEAR, (30 TEETH) (12-POINT)GEAR, (30 TEETH) (12-POINT)
-
133233176 WASHERWASHER
-
143233177 RING, RETAININGRING, RETAINING
-
153233019 BEARINGBEARING
-
163233033 SCREW, TAPPING W/ LOCK WASHERSCREW, TAPPING W/ LOCK WASHER
-
173233309 BRACKET, INTERLOCKBRACKET, INTERLOCK
-
183233550 SPRING, SHIFT INTERLOCKSPRING, SHIFT INTERLOCK
-
193233308 PIN, INTERLOCKPIN, INTERLOCK
-
203233559 SHAFT, SHIFT HI/REVERSESHAFT, SHIFT HI/REVERSE
-
213233040 WASHERWASHER
-
223233547 BELLCRANKBELLCRANK
-
233233055 NUTNUT
-
243233054 WASHERWASHER
-
253233045 RING, RETAININGRING, RETAINING
-
263233548 O-RINGO-RING
-
273233616 SCREW, TAPSCREW, TAP
-
283233635 SWITCH, GEAR INDICATION 3 PISTONSWITCH, GEAR INDICATION 3 PISTON
-
293233325 PLUG, OIL FILLPLUG, OIL FILL
-
303233324 WASHERWASHER
-
313233556 COVER, SNORKELCOVER, SNORKEL
-
323233539 SCREWSCREW
-
333233555 O-RINGO-RING
-
343233248 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
353233554 SHIMSHIM
-
363233553 GEAR, SNORKELGEAR, SNORKEL
-
373233552 BUSHING, GARLOCKBUSHING, GARLOCK
-
383233634 GEARCASE (RIGHT/HR)GEARCASE (RIGHT/HR)
-
393233037 VENTVENT
-
398360009-600 FUEL LINE (OPT)FUEL LINE (OPT)
-
403233636 DECAL, SWITCHDECAL, SWITCH
-
413233020 BEARINGBEARING
-
423233546 CHAIN, ROLLERCHAIN, ROLLER
-
433233545 SPROCKET (16/26 TEETH)SPROCKET (16/26 TEETH)
-
443233544 SHAFT, OUTPUTSHAFT, OUTPUT
-
453233558 GEAR (98 TEETH) HCR.GEAR (98 TEETH) HCR.
-
463233537 RING, RETAININGRING, RETAINING
-
473233538 SPROCKET (14/22 TEETH)SPROCKET (14/22 TEETH)
-
483233263 COVER, CENTER DRIVE BEARINGCOVER, CENTER DRIVE BEARING
-
493233306 RING, RETAININGRING, RETAINING
-
503233540 SHAFT, PINION (13 TEETH)SHAFT, PINION (13 TEETH)
-
513233541 BUSHING, GARLOCKBUSHING, GARLOCK
-
523233542 WASHER, THRUSTWASHER, THRUST
-
533233043 DEFLECTOR, OILDEFLECTOR, OIL
-
543233036 CHAIN, SILENT 34PCHAIN, SILENT 34P
-
553233536 SHAFT, INPUT HI/REVERSE HCR. EXTERIORSHAFT, INPUT HI/REVERSE HCR. EXTERIOR
-
563233529 PIPE, KNOCKPIPE, KNOCK
-
573233252 SCREWSCREW
-
583233527 BUSHING, PIVOTBUSHING, PIVOT
-
593233448 PLUGPLUG
-
603233035 WASHERWASHER
