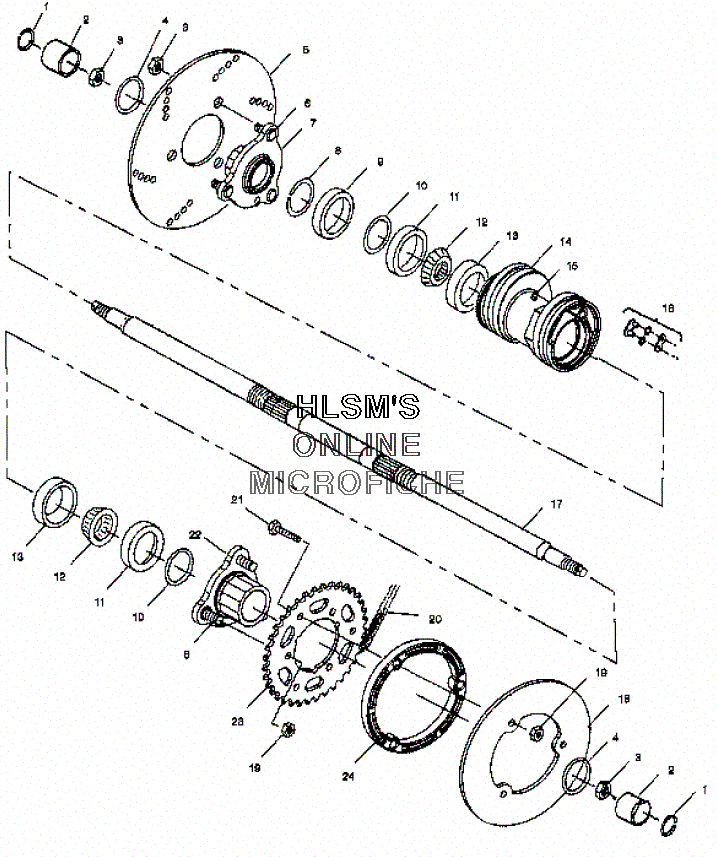

HOUSING - REAR W/ AXLE для Polaris SCRABMLER 500 (A00BG50AA) - 2000 года выпуска`
-
№АртикулНазвание
-
17710472 RING, RETAININGRING, RETAINING
-
25510313 EXTRUSION, RETAINER NUTEXTRUSION, RETAINER NUT
-
25510313 EXTRUSION, RETAINER NUTEXTRUSION, RETAINER NUT
-
37542439 NUT, LOCKNUT, LOCK
-
45411555 SEAL, FOAMSEAL, FOAM
-
55211849 DISC, BRAKE (VENTED)DISC, BRAKE (VENTED)
-
67515513 STUDSTUD
-
71520259 HUB ASSY. BRAKE DISC LOCKING (INCL. 6)HUB ASSY. BRAKE DISC LOCKING (INCL. 6)
-
87710496 RETAINING RING EATONRETAINING RING EATON
-
95010462 SPACER, AXLESPACER, AXLE
-
105410889 O-RINGO-RING
-
113610070 SEAL, LIPSEAL, LIP
-
123554518 BEARING, CONE TAPEREDBEARING, CONE TAPERED
-
133554517 BEARING, CUP TAPEREDBEARING, CUP TAPERED
-
145132098 HOUSING AXLE (REAR)HOUSING AXLE (REAR)
-
157080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
163225027 LINK, CONNECT, 520 ORDLINK, CONNECT, 520 ORD
-
175020944 AXLE ASSY. CDS KITAXLE ASSY. CDS KIT
-
185211585-067 GUARD 38 TEETH SPROCKET (BLACK/ALUM)GUARD 38 TEETH SPROCKET (BLACK/ALUM)
-
197547108 NUTNUT
-
203221111-076 CHAIN, O-RINGCHAIN, O-RING
-
217512404 BOLTBOLT
-
221520258 HUB ASSY. SPROCKET LOCKING (INCL. 6)HUB ASSY. SPROCKET LOCKING (INCL. 6)
-
233222109 SPROCKET (36 TEETH) REAR AXLESPROCKET (36 TEETH) REAR AXLE
-
245630586 SPACER, SPROCKET GUARDSPACER, SPROCKET GUARD
