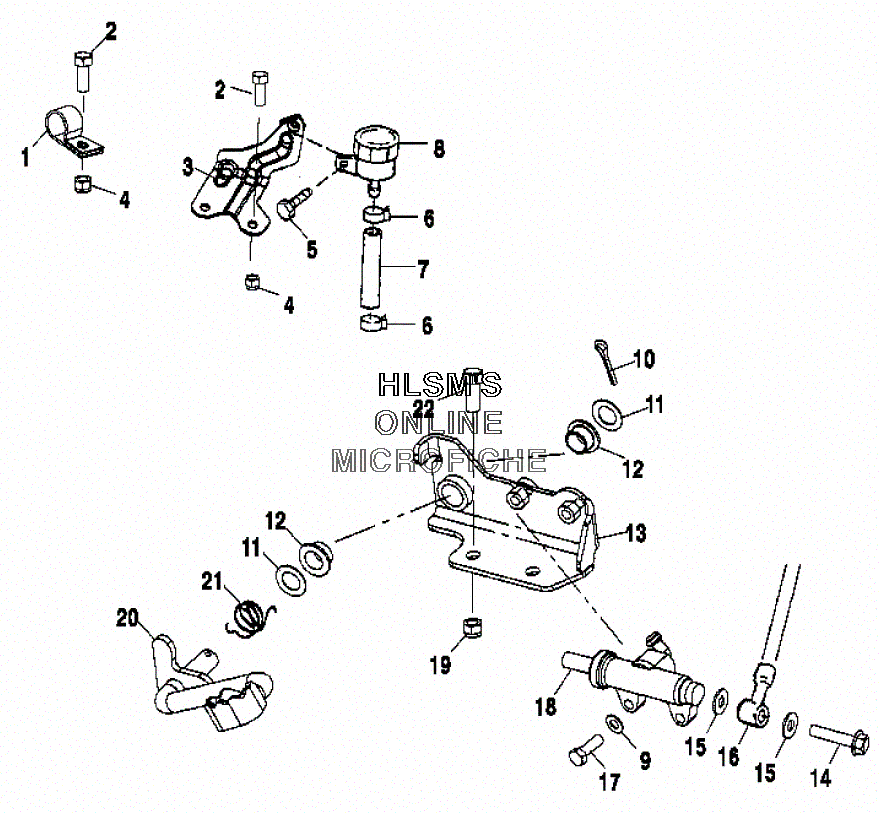

BRAKE - REAR MASTER CYLINDER для Polaris SCRABMLER 500 (A00BG50AA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7080880 CLAMP, HOSE DIA VINYL COATED
    CLAMP, HOSE DIA VINYL COATED
  • 2
    7512113 SCREW
    SCREW
  • 3
    5244091-067 BRACKET, RESERVOIR MOUNT (BLACK)
    BRACKET, RESERVOIR MOUNT (BLACK)
  • 4
    7542122 NUT, LOCK
    NUT, LOCK
  • 5
    7512208 SCREW
    SCREW
  • 6
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    1910404 HOSE, RESERVOIR
    HOSE, RESERVOIR
  • 8
    1930854 RESERVOIR ASSY. REAR BRAKE
    RESERVOIR ASSY. REAR BRAKE
  • 9
    7558301 WASHER
    WASHER
  • 10
    7661401 COTTER PIN
    COTTER PIN
  • 11
    7555919 WASHER
    WASHER
  • 12
    5431107 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 13
    1910375-067 MOUNT, BRAKE CDS (BLACK)
    MOUNT, BRAKE CDS (BLACK)
  • 14
    1930674 BOLT, BANJO BRAKE
    BOLT, BANJO BRAKE
  • 15
    5410988 SEAL
    SEAL
  • 17
    7512278 BOLT
    BOLT
  • 18
    1910311 BRAKE MASTER CYLINDER FOOT, BANJO
    BRAKE MASTER CYLINDER FOOT, BANJO
  • 19
    7542324 NUT
    NUT
  • 20
    1910377-067 BRAKE ROD, CDS GEN 3 (BLACK)
    BRAKE ROD, CDS GEN 3 (BLACK)
  • 21
    7041750 SPRING,TORSION BRAKE
    SPRING,TORSION BRAKE
  • 22
    7512383 BOLT
    BOLT
