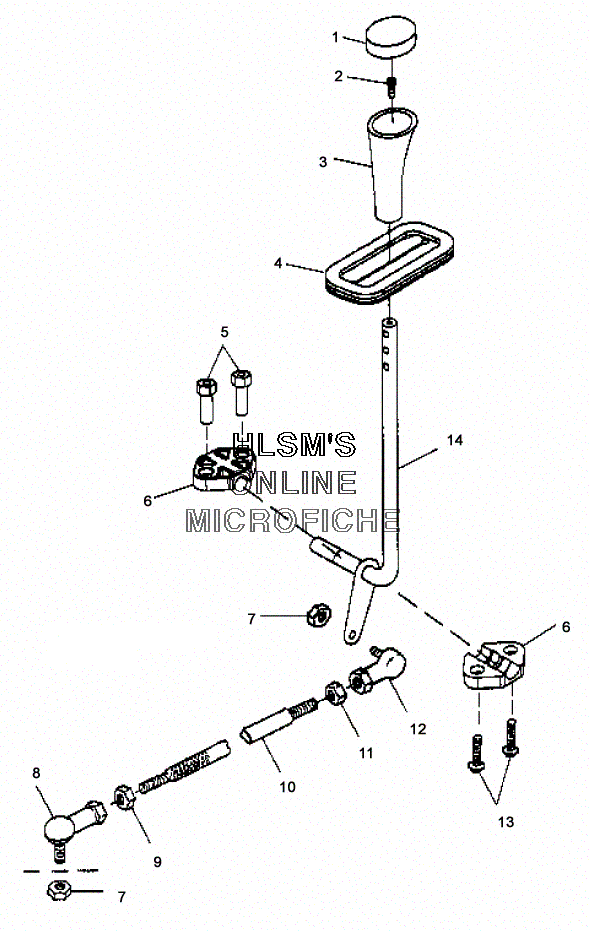

GEAR SELECTOR для Polaris SCRABMLER 500 (A00BG50AA) - 2000 года выпуска
-
№АртикулНазвание
-
15411006 KNOB ASSY. HI/REVERSEKNOB ASSY. HI/REVERSE
-
27512024 SCREWSCREW
-
35411007 KNOB ASSY. HI/REVERSEKNOB ASSY. HI/REVERSE
-
45411008 GROMMET, HR SHIFTERGROMMET, HR SHIFTER
-
55131976 SPACER, HEXAGON SHIFTER, HI/REVERSESPACER, HEXAGON SHIFTER, HI/REVERSE
-
65433103 MOUNT GEAR SELECTOR, HI/REVERSEMOUNT GEAR SELECTOR, HI/REVERSE
-
77546707 NUT, METRICNUT, METRIC
-
87061014 ROD END (RIGHT)ROD END (RIGHT)
-
97546701 NUTNUT
-
105020955 ROD, SHIFT LINKAGEROD, SHIFT LINKAGE
-
117546702 NUTNUT
-
127061013 ROD END (LEFT)ROD END (LEFT)
-
137515133 SCREWSCREW
-
141012797-067 GEAR, SELECTOR SCREW (BLACK)GEAR, SELECTOR SCREW (BLACK)
