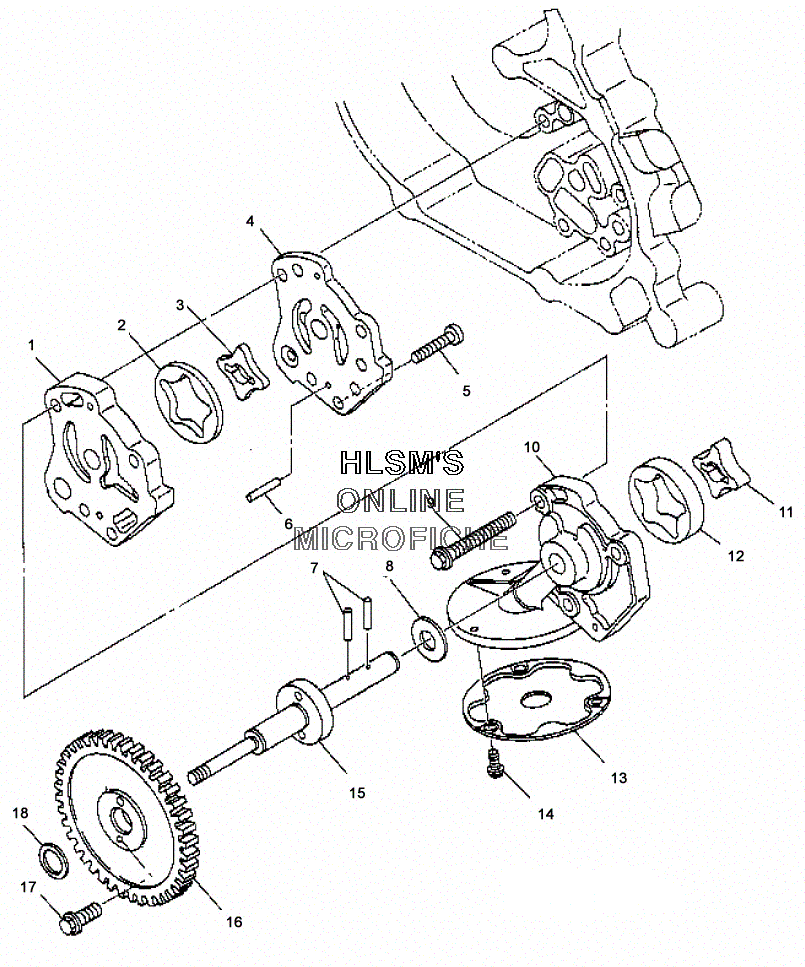

OIL PUMP для Polaris SCRABMLER 500 (A00BG50AA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3084946 CASE #2, OIL PUMP
    CASE #2, OIL PUMP
  • 2
    3084949 ROTOR, OUTER (FEED)
    ROTOR, OUTER (FEED)
  • 3
    3084948 ROTOR, INNER(FEED)
    ROTOR, INNER(FEED)
  • 4
    3084945 CASE #1, OIL PUMP
    CASE #1, OIL PUMP
  • 4
    3085817 PUMP ASSY., OIL (INCL. 1-8,10-15)
    PUMP ASSY., OIL (INCL. 1-8,10-15)
  • 5
    3085535 SCREW
    SCREW
  • 6
    3084955 PIN, DOWEL
    PIN, DOWEL
  • 7
    3084954 PIN, DOWEL
    PIN, DOWEL
  • 8
    3084953 WASHER
    WASHER
  • 9
    3084962 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 10
    3084947 CASE #3, OIL PUMP
    CASE #3, OIL PUMP
  • 11
    3084950 ROTOR, INNER SCAV
    ROTOR, INNER SCAV
  • 12
    3084951 ROTOR, OUTER
    ROTOR, OUTER
  • 13
    3084956 STRAINER UNIT OIL
    STRAINER UNIT OIL
  • 14
    3084205 SCREW AND WASHER
    SCREW AND WASHER
  • 15
    3085818 SHAFT (PUMP)
    SHAFT (PUMP)
  • 16
    3085859 PUMP GEAR
    PUMP GEAR
  • 17
    3085820 BOLT, FLANGE
    BOLT, FLANGE
  • 18
    3084959 SPACER (OPT)
    SPACER (OPT)
  • 18
    3084960 SPACER (OPT)
    SPACER (OPT)
  • 18
    3084961 SPACER (OPT)
    SPACER (OPT)
