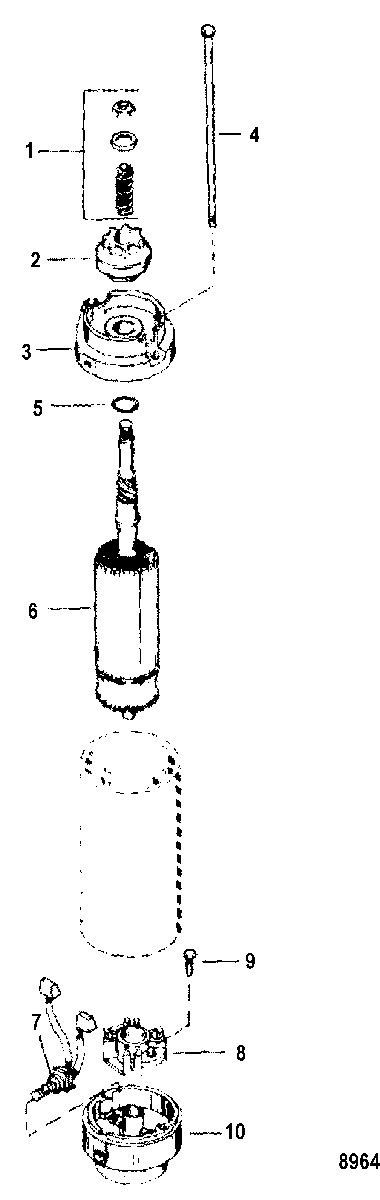

Starter Motor Assembly для Mercury - XR-4 0C100861 THRU 0C239552
-
№АртикулНазвание
-
-50-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190645 DRIVE KITDRIVE KIT
-
213310T1 PINION ASSEMBLY, DrivePINION ASSEMBLY, Drive
-
375660 PLATE, Drive EndPLATE, Drive End
-
410-74968 BOLT, ThruBOLT, Thru
-
5NSS NOT SOLD SEPARATE, Washer-Thru Bolt
(American Bosh #WA3122)NOT SOLD SEPARATE, Washer-Thru Bolt
(American Bosh #WA3122) -
679216 ARMATUREARMATURE
-
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
8898265014 HOLDER, BrushHOLDER, Brush
-
910-68586 SCREW, Brush and HolderSCREW, Brush and Holder
-
1015386001 END CAP, CommutatorEND CAP, Commutator
