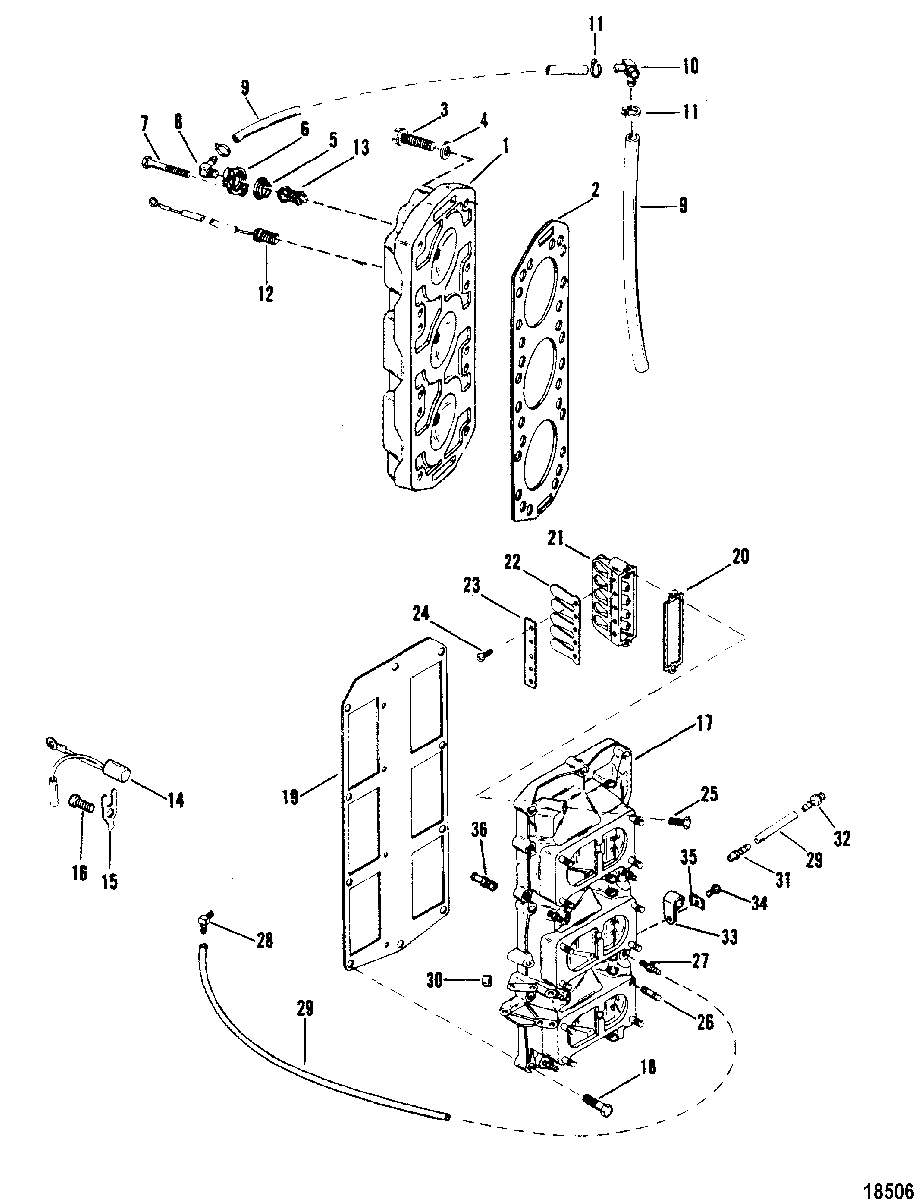

Reed Block and Cylinder Head для Mercury - XR-4 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    15221A5 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 2
    27-41247T01 GASKET, CYLINDER COVER
    GASKET, CYLINDER COVER
  • 3
    10-98534 SCREW, (.375-16 x 2.30), CYLINDER HEAD
    SCREW, (.375-16 x 2.30), CYLINDER HEAD
  • 4
    12-25909 WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
    WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
  • 5
    27-62386001 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • 6
    90390A1 COVER KIT, THERMOSTAT
    COVER KIT, THERMOSTAT
  • 7
    10-35386 SCREW, (.312-18 x 1.00), THERMOSTAT COVER
    SCREW, (.312-18 x 1.00), THERMOSTAT COVER
  • 8
    22-687271 FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
    FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
  • 9
    32-77653101 HOSE, (24.500 Inches Bulk), WATER DISTRUBUTION
    HOSE, (24.500 Inches Bulk), WATER DISTRUBUTION
  • 10
    22-68728 FITTING, THERMOSTAT COVER TO WATER HOSES
    FITTING, THERMOSTAT COVER TO WATER HOSES
  • 11
    54-816311T TIE STRAP, WATER HOSES
    TIE STRAP, WATER HOSES
  • 12
    97465 SENDER, Temperature (STARBOARD)
    SENDER, Temperature (STARBOARD)
  • 13
    75692 THERMOSTAT
    THERMOSTAT
  • 14
    13536A7 SENSOR ASSEMBLY, Temperature (PORT)
    SENSOR ASSEMBLY, Temperature (PORT)
  • 15
    137151 RETAINER, SENSOR AND SENDER
    RETAINER, SENSOR AND SENDER
  • 16
    10-98257 SCREW, (.312-18 x .500), RETAINER
    SCREW, (.312-18 x .500), RETAINER
  • 17
    99747A9 HOUSING, REED BLOCK
    HOUSING, REED BLOCK
  • 18
    10-24878 SCREW, (.250-20 x 1.25), REED BLOCK HOUSING
    SCREW, (.250-20 x 1.25), REED BLOCK HOUSING
  • 18
    10-69093 SCREW, (.250-20 x 1.50), REED BLOCK HOUSING
    SCREW, (.250-20 x 1.50), REED BLOCK HOUSING
  • 18
    10-69067 SCREW, (.250-20 x 1.375), REED BLOCK HOUSING
    SCREW, (.250-20 x 1.375), REED BLOCK HOUSING
  • 19
    27-935361 GASKET, REED BLOCK HOUSING
    GASKET, REED BLOCK HOUSING
  • 20
    27-657443 GASKET, REED BLOCK
    GASKET, REED BLOCK
  • 21
    75953 REED BLOCK
    REED BLOCK
  • 22
    34-75362A1 REED ASSEMBLY
    REED ASSEMBLY
  • 23
    961832 CLAMP, Reed
    CLAMP, Reed
  • 24
    10-57583T SCREW, (#8-32 x .375), REED TO REED BLOCK
    SCREW, (#8-32 x .375), REED TO REED BLOCK
  • 25
    10-65746 SCREW, (.250-20 x .750), REED BLOCK ATTACHING
    SCREW, (.250-20 x .750), REED BLOCK ATTACHING
  • 26
    16-270372 STUD, (.250-28 x 1.125), CARBURETOR MOUNTING
    STUD, (.250-28 x 1.125), CARBURETOR MOUNTING
  • 27
    21-426585 CHECK VALVE, BLEED HOSE TO REED BLOCK HOUSING
    CHECK VALVE, BLEED HOSE TO REED BLOCK HOUSING
  • 28
    22-15133 FITTING, BLEED HOSE TO CYLINDER BLOCK (90 DEG.)
    FITTING, BLEED HOSE TO CYLINDER BLOCK (90 DEG.)
  • 29
    32-892024122 TUBING, (20.00 Feet Bulk), BLEED LINE
    TUBING, (20.00 Feet Bulk), BLEED LINE
  • 30
    21-42657A3 CHECK VALVE
    CHECK VALVE
  • 31
    22-56759 CONNECTOR, BLEED HOSE (PRESS-IN)
    CONNECTOR, BLEED HOSE (PRESS-IN)
  • 32
    21-64871A2 CHECK VALVE
    CHECK VALVE
  • 33
    54-23567 CLIP (9/16")
    CLIP (9/16")
  • 33
    54-26404 CLAMP (1")
    CLAMP (1")
  • 34
    10-69079 SCREW, (#10-16 x .440), CLIP
    SCREW, (#10-16 x .440), CLIP
  • 35
    8M0084613 C WASHER
    C WASHER
  • 36
    22-64705 FITTING
    FITTING
  • -
    27-11338A88 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
