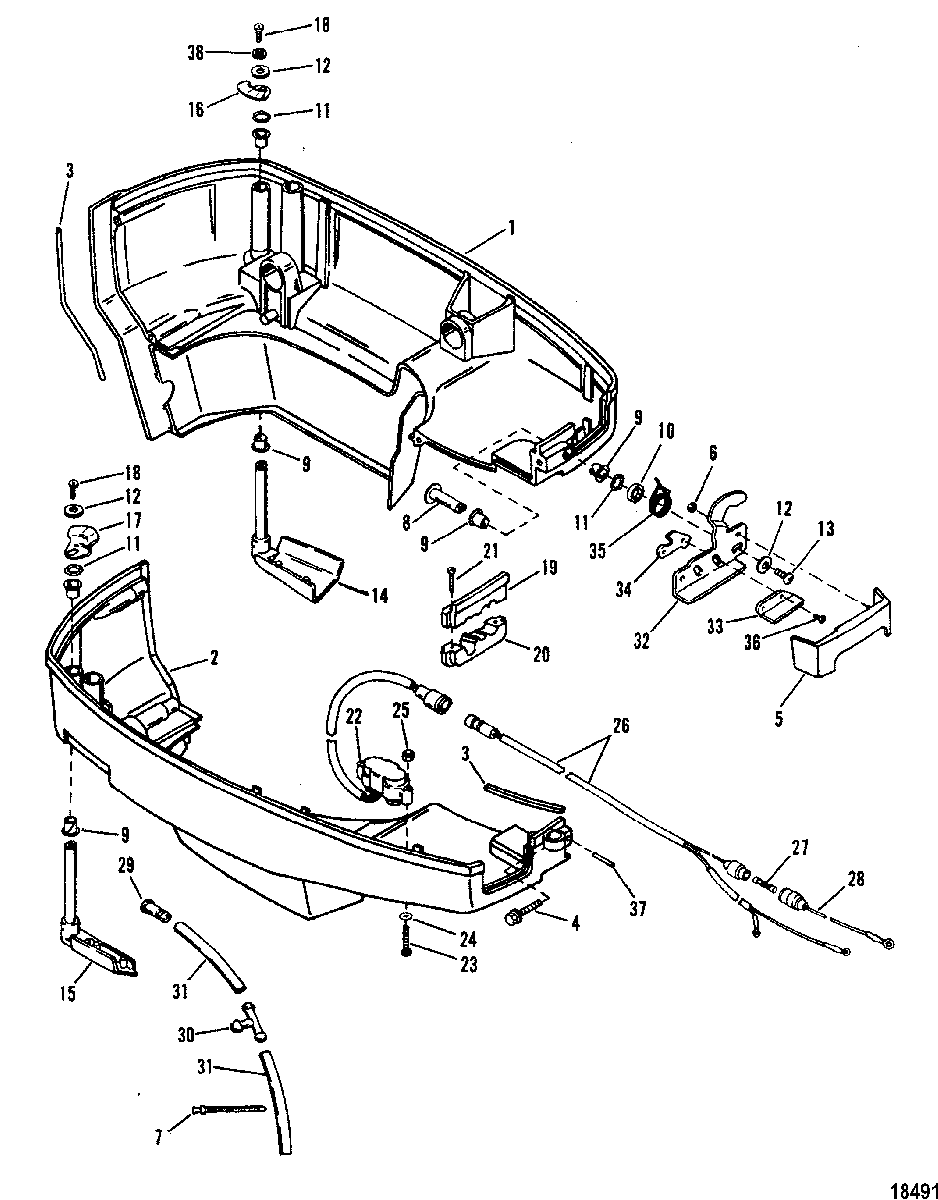

Bottom Cowl для Mercury - XR-4 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    2197-9744A16 BOTTOM COWL ASSEMBLY
    (Black-Port-Without Decals)
    BOTTOM COWL ASSEMBLY
    (Black-Port-Without Decals)
  • 1
    2197-9744A16 BOTTOM COWL ASSEMBLY
    (Gray-Port-Without Decals)
    BOTTOM COWL ASSEMBLY
    (Gray-Port-Without Decals)
  • 2
    2197-9745A1 BOTTOM COWL ASSEMBLY
    (Black-Starboard-Without Decals)
    BOTTOM COWL ASSEMBLY
    (Black-Starboard-Without Decals)
  • 2
    2197-9745A2 BOTTOM COWL ASSEMBLY
    (Gray-Starboard-Without Decals)
    BOTTOM COWL ASSEMBLY
    (Gray-Starboard-Without Decals)
  • 3
    18701A1 SEAL KIT, Bottom Cowls
    SEAL KIT, Bottom Cowls
  • 4
    10-18699 SCREW, (.250-20 x 1.320), Cowl (Starboard)
    SCREW, (.250-20 x 1.320), Cowl (Starboard)
  • 5
    18872A1 COVER ASSEMBLY
    (Black)
    COVER ASSEMBLY
    (Black)
  • 5
    18872A1 COVER ASSEMBLY
    (Gray)
    COVER ASSEMBLY
    (Gray)
  • 6
    11-8136921 LOCKNUT
    LOCKNUT
  • 7
    54-816311T TIE STRAP
    TIE STRAP
  • 8
    18727 ROD
    ROD
  • 9
    23-65830 NYLINER
    NYLINER
  • 10
    23-19666 BUSHING
    BUSHING
  • 11
    13-99611 WAVE WASHER
    WAVE WASHER
  • 12
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 13
    10-18192 SCREW, (.250-20 x .620)
    SCREW, (.250-20 x .620)
  • 14
    19648A2 HANDLE ASSEMBLY
    (Black-Port)
    HANDLE ASSEMBLY
    (Black-Port)
  • 14
    19648A2 HANDLE ASSEMBLY
    (Gray-Port)
    HANDLE ASSEMBLY
    (Gray-Port)
  • 15
    19647A3 HANDLE ASSEMBLY
    (Black-Starboard)
    HANDLE ASSEMBLY
    (Black-Starboard)
  • 15
    19647A3 HANDLE ASSEMBLY
    (Gray-Starboard)
    HANDLE ASSEMBLY
    (Gray-Starboard)
  • 16
    19370 PAWL (Port)
    Order 813096A1 Rear Latch Kit when replacing non-roller components.(A product improvement)
    PAWL (Port)
    Order 813096A1 Rear Latch Kit when replacing non-roller components.(A product improvement)
  • 17
    19369 PAWL (Starboard)
    Order 813096A1 Rear Latch Kit when replacing non-roller components.(A product improvement)
    PAWL (Starboard)
    Order 813096A1 Rear Latch Kit when replacing non-roller components.(A product improvement)
  • 18
    10-90047 SCREW
    SCREW
  • 19
    54-19749 CLAMP, Upper
    CLAMP, Upper
  • 20
    54-197481 CLAMP, Lower
    CLAMP, Lower
  • 21
    10-92799 SCREW, (#10-16 x 1.12)
    SCREW, (#10-16 x 1.12)
  • 22
    84-16636A1 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 23
    10-72202 SCREW, (#10-32 x 1.25)
    SCREW, (#10-32 x 1.25)
  • 24
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 25
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
  • 26
    84-16639A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 27
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 28
    84-95084A2 CABLE ASSEMBLY, Fuse
    CABLE ASSEMBLY, Fuse
  • 29
    22-813613 FITTING, Telltale
    FITTING, Telltale
  • 30
    22-90824001 TEE, Telltale
    TEE, Telltale
  • 31
    32-8M0108355 LINE, (57.00 Inches Bulk), Telltale
    LINE, (57.00 Inches Bulk), Telltale
  • 32
    813076A2 FRONT HANDLE ASSEMBLY
    FRONT HANDLE ASSEMBLY
  • 33
    813076A2 HANDLE LOCK
    HANDLE LOCK
  • 34
    813076A2 HANDLE
    HANDLE
  • 35
    813076A2 SPRING
    SPRING
  • 36
    10-69079 SCREW, (#10-16 x .440)
    SCREW, (#10-16 x .440)
  • 37
    17-815296 PIN, Lock
    PIN, Lock
  • 38
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • -
    813096A1 REAR LATCH KIT
    (Order when replacing Non-Roller Components)
    REAR LATCH KIT
    (Order when replacing Non-Roller Components)
