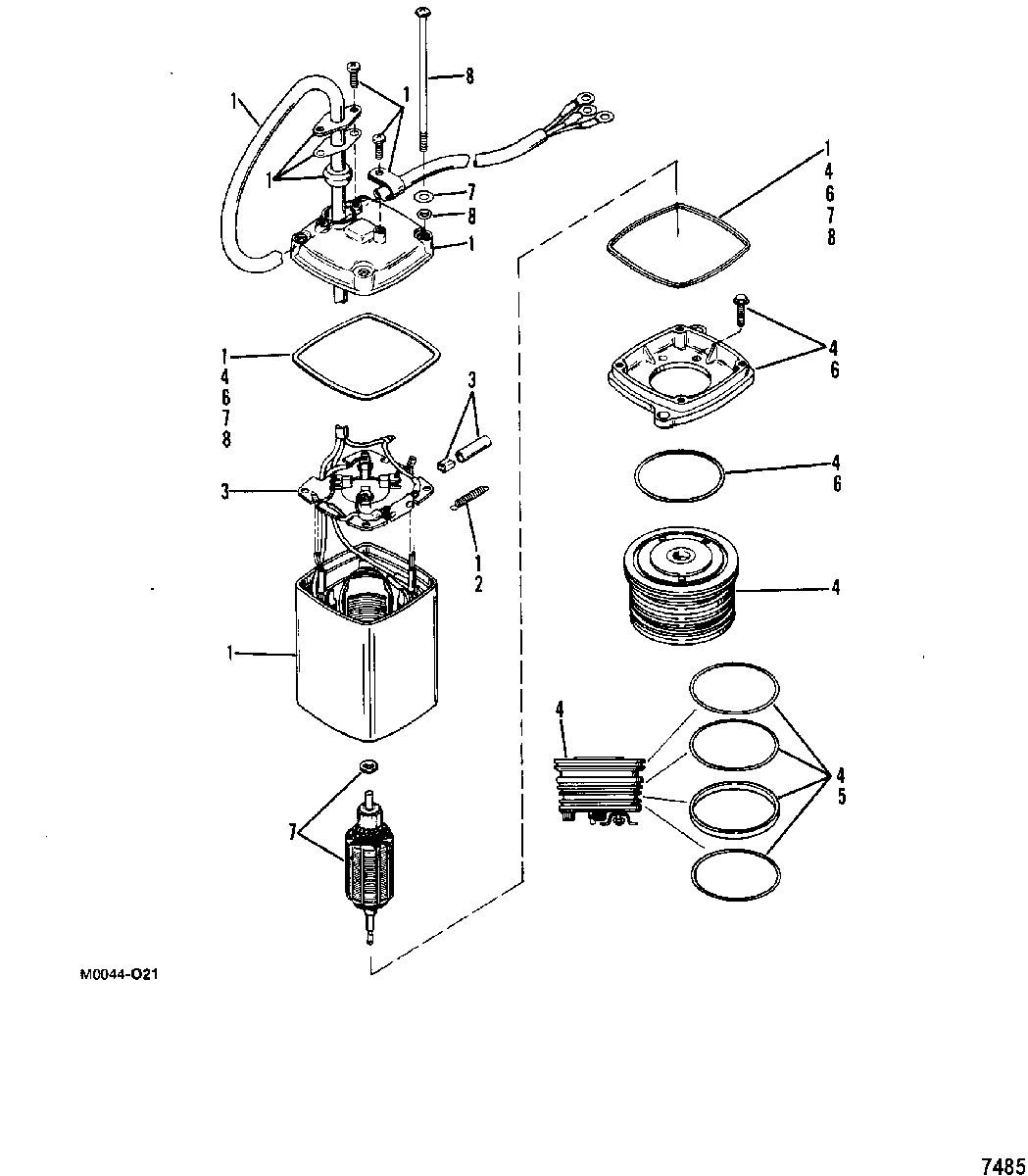

Power Trim Pump для Mercury - XR-4 0C100861 THRU 0C239552
-
№АртикулНазвание
-
-826729A10 PUMP AND MOTORPUMP AND MOTOR
-
1826729A10 FRAME AND FIELD KITFRAME AND FIELD KIT
-
212665 SPRING KIT, BrushSPRING KIT, Brush
-
3826729A10 BRUSH CARD KITBRUSH CARD KIT
-
4826729A10 PUMP AND END FRAME KITPUMP AND END FRAME KIT
-
5126631 SEAL KIT, PumpSEAL KIT, Pump
-
6826729A10 END FRAME KITEND FRAME KIT
-
7826729A10 ARMATURE KITARMATURE KIT
-
812664 THRU BOLT KITTHRU BOLT KIT
