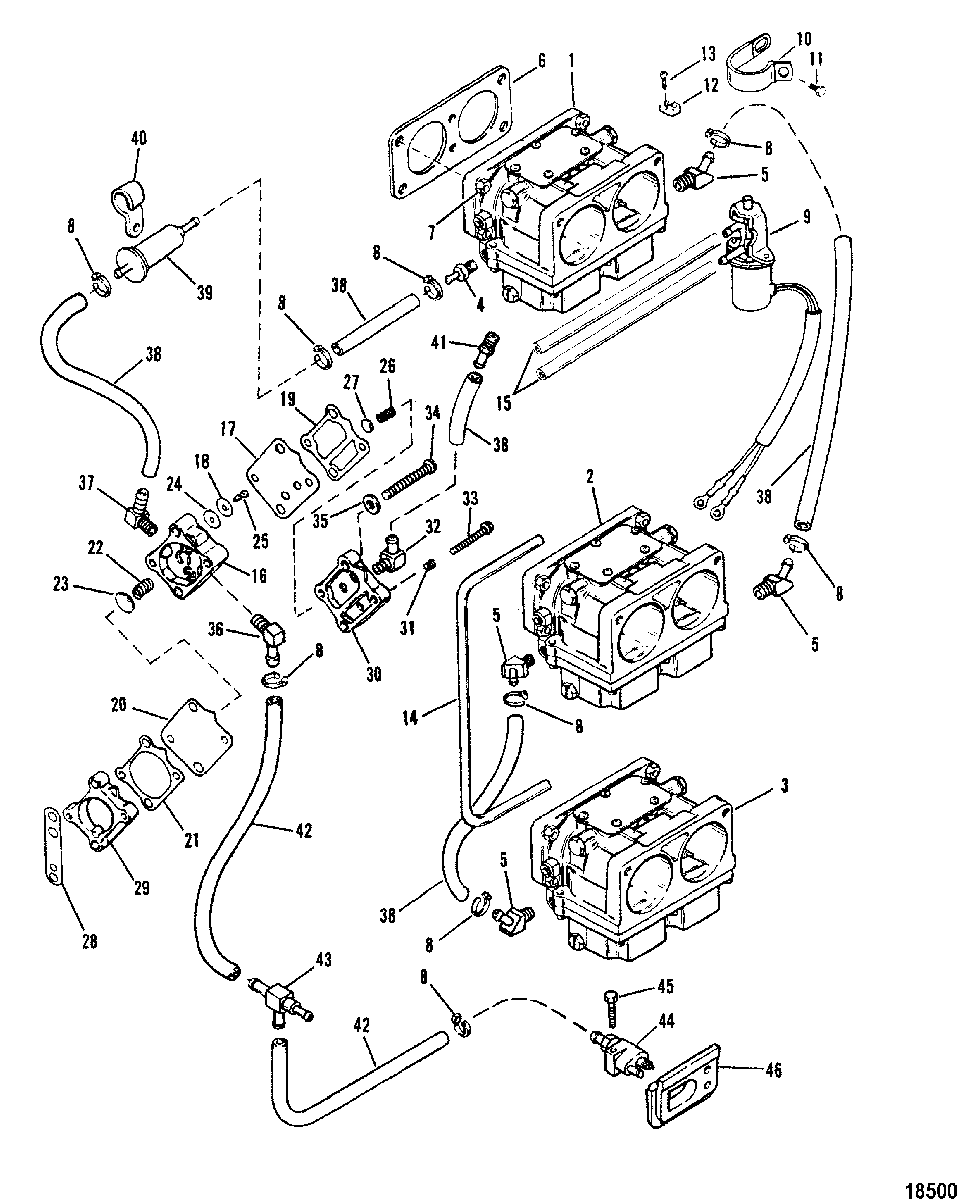

Fuel Pump and Carburetor для Mercury - XR-4 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    3307-9671A1 CARBURETOR
    (TOP) (WH-41)
    CARBURETOR
    (TOP) (WH-41)
  • 1
    3307-9671A7 CARBURETOR
    (TOP) (WH-41A)
    CARBURETOR
    (TOP) (WH-41A)
  • 2
    3307-9671A2 CARBURETOR
    (CENTER) (WH-41)
    CARBURETOR
    (CENTER) (WH-41)
  • 2
    3307-9671A8 CARBURETOR
    (CENTER) (WH-41A)
    CARBURETOR
    (CENTER) (WH-41A)
  • 3
    3307-9671A3 CARBURETOR
    (BOTTOM) (WH-41)
    CARBURETOR
    (BOTTOM) (WH-41)
  • 3
    3307-9671A9 CARBURETOR
    (BOTTOM) (WH-41A)
    CARBURETOR
    (BOTTOM) (WH-41A)
  • 4
    1395-6232 FITTING, FUEL INLET (UPPER)
    FITTING, FUEL INLET (UPPER)
  • 5
    22-70007 FITTING, 45 Degree, FUEL INLET
    FITTING, 45 Degree, FUEL INLET
  • 6
    27-904301 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 7
    11-20184 NUT, (1/4-28X7/32), CARBURETOR MOUNTING
    NUT, (1/4-28X7/32), CARBURETOR MOUNTING
  • 8
    54-816311T TIE STRAP, FUEL HOSE TO CARBURETOR
    TIE STRAP, FUEL HOSE TO CARBURETOR
  • 9
    42859A2 VALVE ASSEMBLY, Enrichner
    VALVE ASSEMBLY, Enrichner
  • 10
    54-633001 CLAMP, ENRICHENER VALVE
    CLAMP, ENRICHENER VALVE
  • 11
    10-73286 SCREW, (.250-20 x .500) Stainless Steel, VALVE CLAMP
    SCREW, (.250-20 x .500) Stainless Steel, VALVE CLAMP
  • 12
    86-45915 TERMINAL BLOCK, REED BLOCK HOUSING
    TERMINAL BLOCK, REED BLOCK HOUSING
  • 13
    10-35519 SCREW, (#10-16 x .500), TERMINAL BLOCK ATTACHING
    SCREW, (#10-16 x .500), TERMINAL BLOCK ATTACHING
  • 14
    32-892024122 TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE (7.75 Inches)
    TUBING, (20.00 Feet Bulk), TOP CARBURETOR TO VALVE (7.75 Inches)
  • 15
    32-9912688 TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR (4.25 Inches)
    TUBING, (36.00 Inches Bulk), CARBURETOR TO CARBURETOR (4.25 Inches)
  • 16
    15930A15 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 17
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 18
    NSS NOT SOLD SEPARATE, Check Valve-Rubber
    NOT SOLD SEPARATE, Check Valve-Rubber
  • 19
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 20
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 21
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 22
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 23
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 24
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 25
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 26
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 27
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 28
    27-987691 GASKET, BASE
    GASKET, BASE
  • 29
    144303 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 30
    987752 PLATE, FUEL PUMP
    PLATE, FUEL PUMP
  • 31
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 32
    22-19688 FITTING
    FITTING
  • 33
    10-16452 SCREW, (#12-24 x 2.00), FUEL PUMP
    SCREW, (#12-24 x 2.00), FUEL PUMP
  • 34
    10-4000310 SCREW, (M5 x 40), FUEL PUMP TO CRANKCASE
    SCREW, (M5 x 40), FUEL PUMP TO CRANKCASE
  • 35
    12-4002314 WASHER, FUEL PUMP SCREW
    WASHER, FUEL PUMP SCREW
  • 36
    22-14868 FITTING, FUEL PUMP
    FITTING, FUEL PUMP
  • 37
    22-19688 FITTING, FUEL PUMP
    FITTING, FUEL PUMP
  • 38
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 39
    35-816296Q03 FILTER, Fuel
    FILTER, Fuel
  • 40
    54-15279 CLAMP, FUEL FILTER
    CLAMP, FUEL FILTER
  • 41
    22-64705 FITTING, PULSE HOSE
    FITTING, PULSE HOSE
  • 42
    32-8M0108349 TUBING
    TUBING
  • 43
    22-424253 TEE
    TEE
  • 44
    22-816856Q3 CONNECTOR, Fuel
    CONNECTOR, Fuel
  • 45
    10-69067 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
  • 46
    812782 SEAL
    SEAL
  • -
    1395-6452 GASKET KIT
    GASKET KIT
  • -
    1395-8506 REPAIR KIT, Carburetor
    (WH-41)
    REPAIR KIT, Carburetor
    (WH-41)
  • -
    814787 REPAIR KIT, Carburetor
    (WH-41A)
    REPAIR KIT, Carburetor
    (WH-41A)
  • -
    27-11338A88 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
