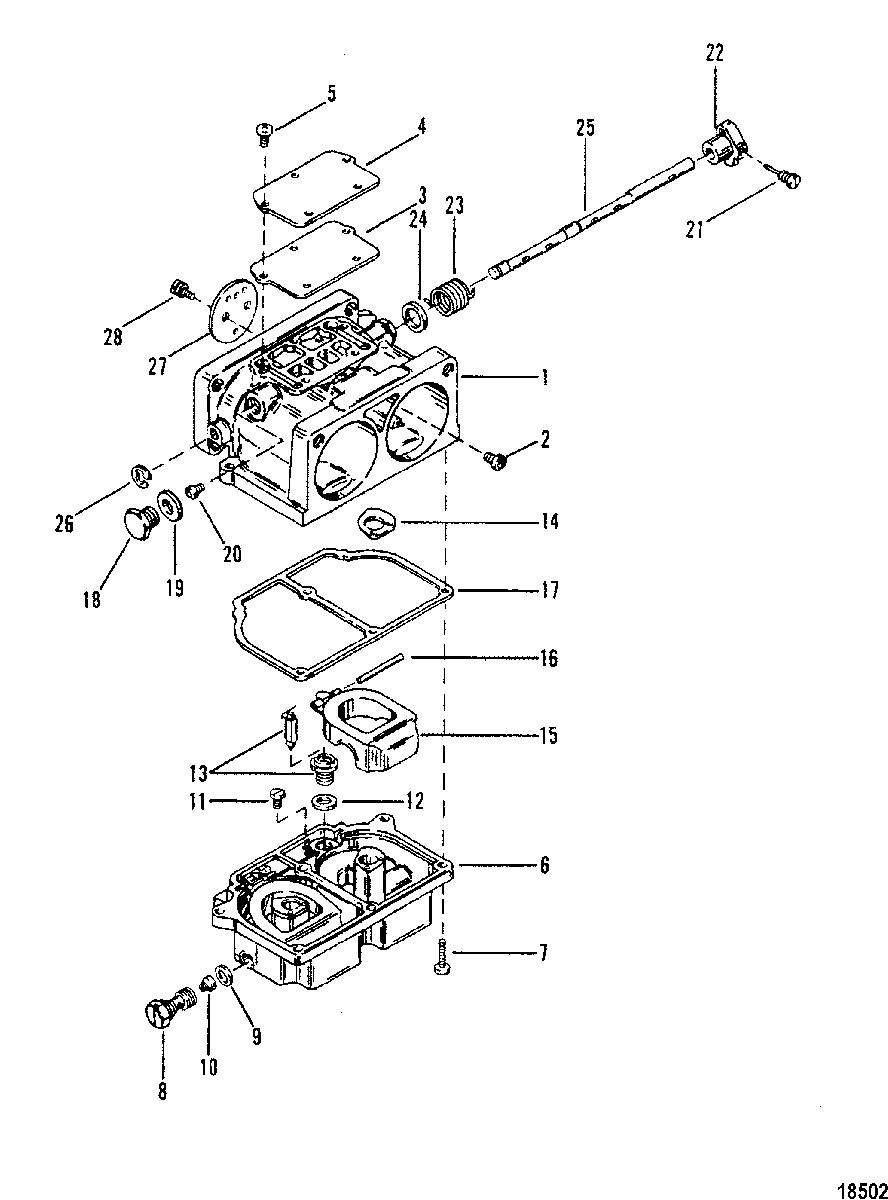

Carburetor Assembly для Mercury - XR-4 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    3307-9671A1 CARBURETOR
    (Top)(WH-41)
    CARBURETOR
    (Top)(WH-41)
  • 1
    3307-9671A7 CARBURETOR
    (Top)(WH-41A)
    CARBURETOR
    (Top)(WH-41A)
  • 1
    3307-9671A2 CARBURETOR
    (Center)(WH-41)
    CARBURETOR
    (Center)(WH-41)
  • 1
    3307-9671A8 CARBURETOR
    (Center)(WH-41A)
    CARBURETOR
    (Center)(WH-41A)
  • 1
    3307-9671A3 CARBURETOR
    (Bottom)(WH-41)
    CARBURETOR
    (Bottom)(WH-41)
  • 1
    3307-9671A9 CARBURETOR
    (Bottom)(WH-41A)
    CARBURETOR
    (Bottom)(WH-41A)
  • 2
    1399-3796 JET, (.076), Bowl Vent
    JET, (.076), Bowl Vent
  • 3
    NSS NOT SOLD SEPARATE, Gasket-Cover Plate
    NOT SOLD SEPARATE, Gasket-Cover Plate
  • 4
    1395-6032 PLATE, Cover
    PLATE, Cover
  • 5
    NSS NOT SOLD SEPARATE, Screw-Cover Plate
    NOT SOLD SEPARATE, Screw-Cover Plate
  • 6
    1395-7823 BOWL, Fuel
    (Top)
    BOWL, Fuel
    (Top)
  • 6
    1395-7822 BOWL, Fuel
    (Center/Bottom)
    BOWL, Fuel
    (Center/Bottom)
  • 7
    NSS NOT SOLD SEPARATE, Screw-Fuel Bowl
    NOT SOLD SEPARATE, Screw-Fuel Bowl
  • 8
    1395-6025 PLUG, Main Jet
    PLUG, Main Jet
  • 9
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 10
    1399-3794 JET, (.074), Main Fuel (For High Altitude jets, consult your service manual for correct sizes and part numbers)
    JET, (.074), Main Fuel (For High Altitude jets, consult your service manual for correct sizes and part numbers)
  • 11
    NSS NOT SOLD SEPARATE, Screw-Float Pin
    NOT SOLD SEPARATE, Screw-Float Pin
  • 12
    NSS NOT SOLD SEPARATE, Gasket-Inlet Needle and Seat
    NOT SOLD SEPARATE, Gasket-Inlet Needle and Seat
  • 13
    1395-7824 NEEDLE/SEAT ASSEMBLY, Inlet
    (WH-41)
    NEEDLE/SEAT ASSEMBLY, Inlet
    (WH-41)
  • 13
    814786 NEEDLE/SEAT ASSEMBLY, Inlet
    (WH-41A)
    NEEDLE/SEAT ASSEMBLY, Inlet
    (WH-41A)
  • 14
    NSS NOT SOLD SEPARATE, Gasket-Nozzle Boss
    NOT SOLD SEPARATE, Gasket-Nozzle Boss
  • 15
    1395-9267 FLOAT
    FLOAT
  • 16
    NSS NOT SOLD SEPARATE, Pin-Float Lever
    NOT SOLD SEPARATE, Pin-Float Lever
  • 17
    NSS NOT SOLD SEPARATE, Gasket-Fuel Bowl
    NOT SOLD SEPARATE, Gasket-Fuel Bowl
  • 18
    1395-4541 SCREW, Idle Air Bleed Jet
    SCREW, Idle Air Bleed Jet
  • 19
    NSS NOT SOLD SEPARATE, Gasket-Bleed Jet Plug
    NOT SOLD SEPARATE, Gasket-Bleed Jet Plug
  • 20
    1395-6359 JET, (.052), Idle Air Bleed
    (WH-41)
    JET, (.052), Idle Air Bleed
    (WH-41)
  • 20
    1395-6246 JET, (.048), Idle Air Bleed
    (WH-41A)
    JET, (.048), Idle Air Bleed
    (WH-41A)
  • 21
    1395-6027 SCREW, Throttle Lever
    SCREW, Throttle Lever
  • 22
    814679 LEVER, Throttle
    LEVER, Throttle
  • 23
    NSS NOT SOLD SEPARATE, Spring-Throttle Return
    NOT SOLD SEPARATE, Spring-Throttle Return
  • 24
    1395-6031 SPACER, Throttle Lever
    SPACER, Throttle Lever
  • 25
    1395-6022 SHAFT, Throttle
    SHAFT, Throttle
  • 26
    NSS NOT SOLD SEPARATE, Ring-Retainer-Throttle Shaft
    NOT SOLD SEPARATE, Ring-Retainer-Throttle Shaft
  • 27
    1395-6023 VALVE, Throttle
    VALVE, Throttle
  • 28
    NSS NOT SOLD SEPARATE, Screw-Throttle Valve
    NOT SOLD SEPARATE, Screw-Throttle Valve
  • -
    1395-6452 GASKET KIT
    GASKET KIT
  • -
    1395-8506 REPAIR KIT, Carburetor
    (WH-41)
    REPAIR KIT, Carburetor
    (WH-41)
  • -
    814787 REPAIR KIT, Carburetor
    (WH-41A)
    REPAIR KIT, Carburetor
    (WH-41A)
