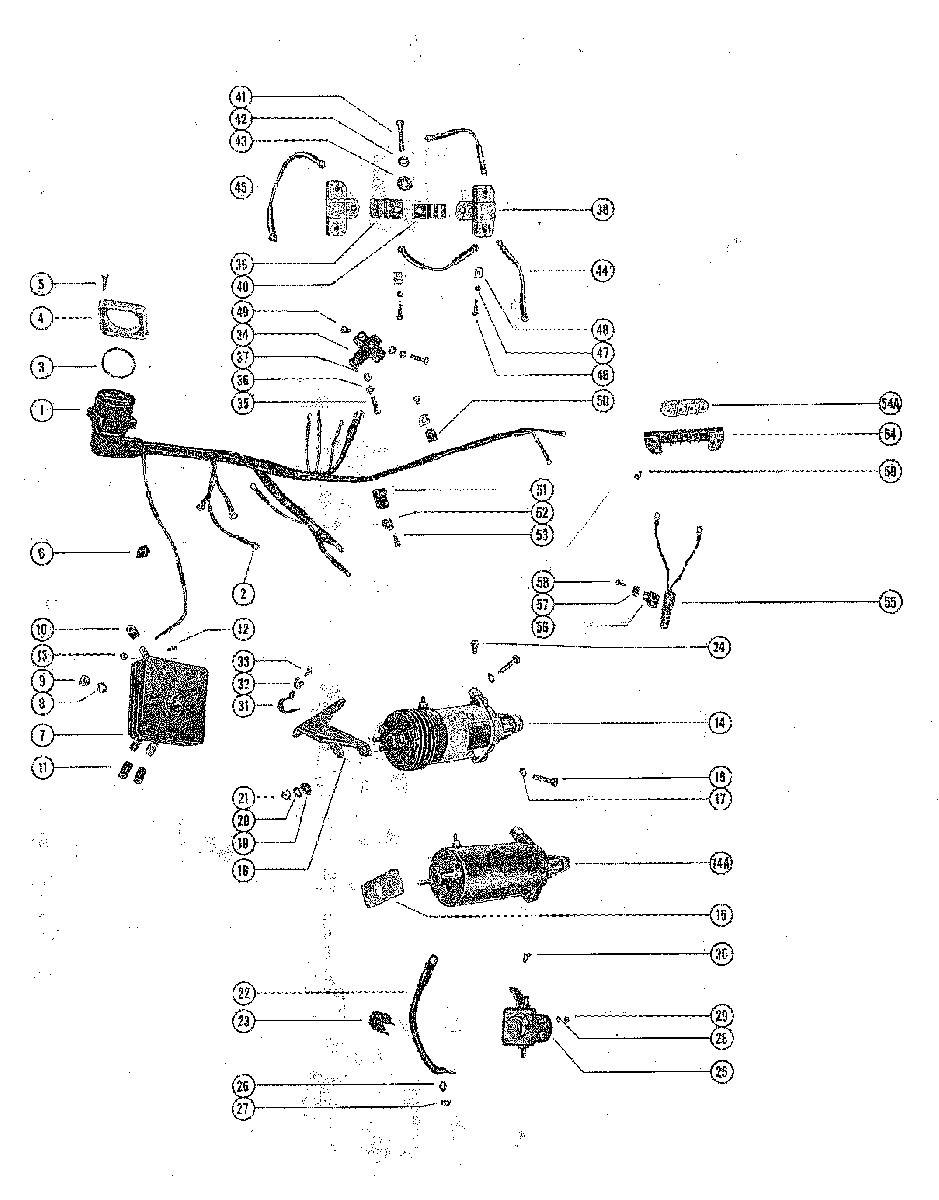

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 800 (6 CYL.) 1398630 THRU 1566239

  • №
    Артикул
    Название
  • 1
    30472 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 2
    30050 TERMINAL, HARNESS AND MERCURY SWITCH LEADS
    TERMINAL, HARNESS AND MERCURY SWITCH LEADS
  • 3
    24-28975 SPRING, GARTER-INTERNAL WIRING HARNESS
    SPRING, GARTER-INTERNAL WIRING HARNESS
  • 4
    26079A2 PLATE, WIRING HARNESS TO BOTTOM COWL
    PLATE, WIRING HARNESS TO BOTTOM COWL
  • 5
    10-45893 SCREW,HARNESS PLATE FASTENING
    SCREW,HARNESS PLATE FASTENING
  • 6
    54-22783 "S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL
    "S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL
  • 7
    32177A2 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 8
    13-26993 LOCKWASHER, RECTIFIER MOUNTING SCREW
    LOCKWASHER, RECTIFIER MOUNTING SCREW
  • 9
    11-21929 NUT, RECTIFIER MOUNTING SCREW
    NUT, RECTIFIER MOUNTING SCREW
  • 10
    32-28052 SLEEVE, RUBBER- RECTIFIER HARNESS LEAD
    SLEEVE, RUBBER- RECTIFIER HARNESS LEAD
  • 11
    32-28373 SLEEVE, RUBBER-RECTIFIER STATOR LEAD
    SLEEVE, RUBBER-RECTIFIER STATOR LEAD
  • 12
    10-35400 SCREW, HARNESS AND STATOR LEADS TO RECTIFIER
    SCREW, HARNESS AND STATOR LEADS TO RECTIFIER
  • 13
    11-826709106 NUT, HARNESS AND STATOR LEADS FASTENING SCREW
    NUT, HARNESS AND STATOR LEADS FASTENING SCREW
  • 14
    50-30575 STARTER MOTOR ASSEMBLY(BOSCH)
    THE 50-30575 STARTER MOTOR (BOSCH) USED ON EARLY PRODUCTION ENGINES IS NO LONGER AVAILABE, FOR REPLACEMENT, ORDER 50-30842 STARTER MOTOR (DELCO-REMY) AND COMPONENT PARTS.
    STARTER MOTOR ASSEMBLY(BOSCH)
    THE 50-30575 STARTER MOTOR (BOSCH) USED ON EARLY PRODUCTION ENGINES IS NO LONGER AVAILABE, FOR REPLACEMENT, ORDER 50-30842 STARTER MOTOR (DELCO-REMY) AND COMPONENT PARTS.
  • 14A
    50-30842 STARTER MOTOR ASSEMBLY (DELCO-REMY)
    STARTER MOTOR ASSEMBLY (DELCO-REMY)
  • 15
    31057 PLATE, SPACER-STARTER MOTOR-
    USE ONLY WITH 50-30842 STARTER MOTOR ON EARLY PRODUCTION ENGINES
    PLATE, SPACER-STARTER MOTOR-
    USE ONLY WITH 50-30842 STARTER MOTOR ON EARLY PRODUCTION ENGINES
  • --
    21098 BUMPER, RUBBER-STARTER MOTOR DRIVE END PLATE
    USE ONLY WITH 50-30842 STARTER MOTOR ON EARLY PRODUCTION ENGINES
    BUMPER, RUBBER-STARTER MOTOR DRIVE END PLATE
    USE ONLY WITH 50-30842 STARTER MOTOR ON EARLY PRODUCTION ENGINES
  • --
    12-31364 WASHER, RUBBER-STARTER MOTOR DRIVE END PLATE
    USE ONLY WITH 50-30842 STARTER MOTOR ON EARLY PRODUCTION ENGINES
    WASHER, RUBBER-STARTER MOTOR DRIVE END PLATE
    USE ONLY WITH 50-30842 STARTER MOTOR ON EARLY PRODUCTION ENGINES
  • 16
    10-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGE
    SCREW, STARTER MOTOR TO CRANKCASE FLANGE
  • 17
    13-26993 LOCKWASHER, STARTER MOTOR FASTENING SCREW
    LOCKWASHER, STARTER MOTOR FASTENING SCREW
  • 18
    38747 BRACKET, SUPPORT-STARTER MOTOR
    BRACKET, SUPPORT-STARTER MOTOR
  • 19
    12-24664 WASHER, THRU BOLT-BRACKET TO STARTER MOTOR
    WASHER, THRU BOLT-BRACKET TO STARTER MOTOR
  • 20
    13-26992 LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR
    LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR
  • 21
    11-20890 NUT, THRU BOLT-BRACKET TO STARTER MOTOR
    NUT, THRU BOLT-BRACKET TO STARTER MOTOR
  • 22
    84-93389A12 CABLE,WIRE-STARTER TO STARTER SOLENOID
    CABLE,WIRE-STARTER TO STARTER SOLENOID
  • 23
    54-20534 CLAMP, LOWER CABLE-STARTER TO SOLENOID
    CLAMP, LOWER CABLE-STARTER TO SOLENOID
  • 24
    10-69035 SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR
    SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR
  • 25
    32268 SOLENOID, STARTER
    SOLENOID, STARTER
  • 26
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16)
    LOCKWASHER, SOLENOID TERMINAL (5/16)
  • 27
    11-22053 NUT, SOLENOID TERMINAL (5/16)
    NUT, SOLENOID TERMINAL (5/16)
  • 28
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 29
    11-68219 NUT, SOLENOID TERMINAL(#10)
    NUT, SOLENOID TERMINAL(#10)
  • 30
    10-29238 SCREW< SOLENOID TO STARTER MOTOR
    SCREW< SOLENOID TO STARTER MOTOR
  • 31
    54-22627 CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET
    CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET
  • 32
    8M0084613 "D" WASHER, HARNESS CLAMP
    "D" WASHER, HARNESS CLAMP
  • 33
    10-62568 SCREW, HARNESS CLAMP FASTENING
    SCREW, HARNESS CLAMP FASTENING
  • 34
    29714 BLOCK, TERMINAL-UPPER FUEL PUMP PAD
    BLOCK, TERMINAL-UPPER FUEL PUMP PAD
  • 35
    10-22245 SCREW, TERMINAL BLOCK FASTENING
    SCREW, TERMINAL BLOCK FASTENING
  • 36
    13-26996 LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
    LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
  • 37
    12-26014 WASHER, TERMINAL BLOCK FASTENING SCREW
    WASHER, TERMINAL BLOCK FASTENING SCREW
  • 38
    393-1572 RESISTOR
    RESISTOR
  • 39
    30449 SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
    SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
  • 40
    30449 SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
    SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
  • 41
    10-24770 SCREW,RESISTOR, SNUBBER AND COVER MOUNTING (1 3/8")
    SCREW,RESISTOR, SNUBBER AND COVER MOUNTING (1 3/8")
  • 42
    13-26992 LOCKWASHER, RESISTOR, SNUBBER AND COVER MOUNTING SCREW
    LOCKWASHER, RESISTOR, SNUBBER AND COVER MOUNTING SCREW
  • 43
    12-69057 WASHER, RESISTOR, SNUBBER AND COVER MOUNTING SCREW
    WASHER, RESISTOR, SNUBBER AND COVER MOUNTING SCREW
  • 44
    29112 JUMPER, RESISTOR TO RESISTOR AND RESISTOR TO TERMINAL BLOCK
    JUMPER, RESISTOR TO RESISTOR AND RESISTOR TO TERMINAL BLOCK
  • 45
    30020 JUMPER, RESISTOR TO TERMINAL BLOCK
    JUMPER, RESISTOR TO TERMINAL BLOCK
  • 46
    10-46718 SCREW,JUMPER LEADS TO RESISTOR
    SCREW,JUMPER LEADS TO RESISTOR
  • 47
    13-26995 LOCKWASHER, JUMPER LEADS FASTENING SCREW
    LOCKWASHER, JUMPER LEADS FASTENING SCREW
  • 48
    12-30191 WASHER, JUMPER LEADS FASTENING SCREW
    WASHER, JUMPER LEADS FASTENING SCREW
  • 49
    10-35400 SCREW, HARNESS AND JUMPER LEADS TO TERMINAL BLOCK
    SCREW, HARNESS AND JUMPER LEADS TO TERMINAL BLOCK
  • 50
    26836 CLIP, WIRING HARNESS TO CRANKCASE FLANGE
    CLIP, WIRING HARNESS TO CRANKCASE FLANGE
  • 51
    54-24836 CLIP, WIRING HARNESS TO CYLINDER BLOCK COVER
    CLIP, WIRING HARNESS TO CYLINDER BLOCK COVER
  • 52
    8M0084613 "D" WASHER, HARNESS CLIP
    "D" WASHER, HARNESS CLIP
  • 53
    10-8M0113176 SCREW, HARNESS CLIP FASTENING
    SCREW, HARNESS CLIP FASTENING
  • 54
    29765A1 TERMINAL BLOCK ASSEMBLY, EXHAUST COVER
    TERMINAL BLOCK ASSEMBLY, EXHAUST COVER
  • 54A
    30212 TERMINAL BLOCK, EXHAUST COVER
    TERMINAL BLOCK, EXHAUST COVER
  • -
    37-30649 LABEL, TERMINAL BLOCK COLOR LEADS
    LABEL, TERMINAL BLOCK COLOR LEADS
  • 55
    58124A1 SWITCH, MERCURY
    SWITCH, MERCURY
  • 56
    54-22875 CLAMP, MERCURY SWITCH
    CLAMP, MERCURY SWITCH
  • 57
    8M0084613 "D" WASHER, CLAMP FASTENING SCREW
    "D" WASHER, CLAMP FASTENING SCREW
  • 58
    10-20401 SCREW, MERCURY SWITCH CLAMP TO EXHAUST COVER
    SCREW, MERCURY SWITCH CLAMP TO EXHAUST COVER
  • 59
    10-35400 SCREW, HARNESS LEADS TO TERMINAL BLOCK
    SCREW, HARNESS LEADS TO TERMINAL BLOCK
  • 59
    10-72169 SCREW, HARNESS LEADS TO TERMINAL BLOCK
    SCREW, HARNESS LEADS TO TERMINAL BLOCK
  • 59
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK
    SCREW, HARNESS LEADS TO TERMINAL BLOCK
