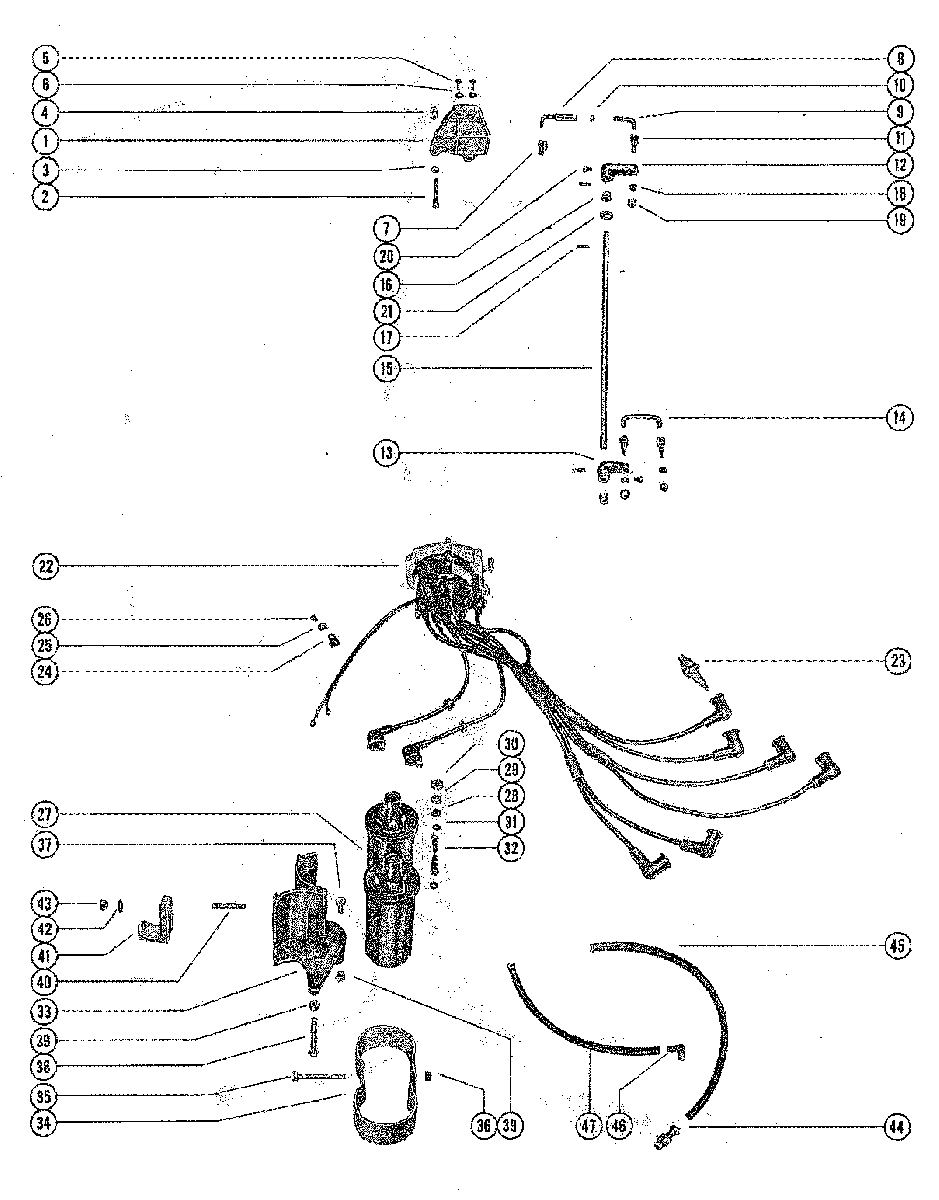

DISTRIBUTOR VERTICAL LINKAGE AND IGNITION COILS для Mercury - 800 (6 CYL.) 1398630 THRU 1566239

  • №
    Артикул
    Название
  • 1
    55805 BRACKET, STOP
    BRACKET, STOP
  • 2
    10-24228 SCREW, STOP BRACKET ADJUSTING
    SCREW, STOP BRACKET ADJUSTING
  • 3
    11-20890 NUT, STOP BRACKET ADJUSTING SCREW
    NUT, STOP BRACKET ADJUSTING SCREW
  • 4
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 5
    10-28636 SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR
    SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR
  • 6
    12-20533 WASHER, STOP BRACKET FASTENING SCREW
    WASHER, STOP BRACKET FASTENING SCREW
  • 7
    27947 SWIVEL, LINKAGE - ECONOMIZER COLLAR
    SWIVEL, LINKAGE - ECONOMIZER COLLAR
  • 8
    25996A1 SWIVEL AND LINK ROD ASSEMBLY
    SWIVEL AND LINK ROD ASSEMBLY
  • 9
    27949 ROD, LINK - UPPER
    ROD, LINK - UPPER
  • 10
    11-25168 NUT, UPPER LINK ROD ADJUSTING
    NUT, UPPER LINK ROD ADJUSTING
  • 11
    27948 SWIVEL, UPPER AND LOWER LINK RODS
    SWIVEL, UPPER AND LOWER LINK RODS
  • 12
    30582 LEVER, LINKAGE - UPPER
    LEVER, LINKAGE - UPPER
  • 13
    30619 LEVER, LINKAGE - LOWER
    LEVER, LINKAGE - LOWER
  • 14
    30623 ROD, LINK - LOWER
    ROD, LINK - LOWER
  • 15
    30629 SHAFT, VERTICAL
    SHAFT, VERTICAL
  • 16
    23-26954 BUSHING, NYLON - VERTICAL SHFT
    BUSHING, NYLON - VERTICAL SHFT
  • 17
    17-25319 ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS
    ROLL PIN, VERTICAL SHAFT AND LINKAGE LEVERS
  • 18
    12-29245 WASHER, UPPER AND LOWER SWIVEL
    WASHER, UPPER AND LOWER SWIVEL
  • 19
    11-8267089 NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET
    NUT, UPPER AND LOWER SWIVEL TO LEVER AND BRACKET
  • 20
    10-25781 SCREW, SET - LINKAGE LEVER
    SCREW, SET - LINKAGE LEVER
  • 21
    12-20553 WASHER, VERTICAL SHAFT - CENTER
    WASHER, VERTICAL SHAFT - CENTER
  • 22
    393-1282A17 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 23
    33-813413 SPARK PLUG (J4J)
    SPARK PLUG (J4J)
  • 24
    54-24836 CLIP, DISTRIBUTOR PRIMARY GROUND LEAD (1/4-6)
    CLIP, DISTRIBUTOR PRIMARY GROUND LEAD (1/4-6)
  • 25
    8M0084613 "D" WASHER, GROUND LEAD CLIP SCREW
    "D" WASHER, GROUND LEAD CLIP SCREW
  • 26
    10-8M0113176 SCREW, DISTRIBUTOR GROUND LEAD CLIP TO CRANKCASE
    SCREW, DISTRIBUTOR GROUND LEAD CLIP TO CRANKCASE
  • 27
    898253T24 COIL, IGNITION
    COIL, IGNITION
  • 28
    13-20554 LOCKWASHER, IGNITION COIL TERMINALS
    LOCKWASHER, IGNITION COIL TERMINALS
  • 29
    13-26996 LOCKWASHER, IGNITION COIL TERMINALS
    LOCKWASHER, IGNITION COIL TERMINALS
  • 30
    11-68219 NUT, IGNITION COIL TERMINALS
    NUT, IGNITION COIL TERMINALS
  • 31
    25-26543 "O" RING, IGNITION COIL
    "O" RING, IGNITION COIL
  • 32
    28922 JUMPER, COIL TO COIL
    JUMPER, COIL TO COIL
  • 33
    26514 BRACKET, COIL FASTENING
    BRACKET, COIL FASTENING
  • 34
    26512 BAND, COIL BRACKET
    BAND, COIL BRACKET
  • 35
    10-26889 SCREW, COIL BAND TO BRACKET
    SCREW, COIL BAND TO BRACKET
  • 36
    11-20184 NUT, COIL BAND SCREW
    NUT, COIL BAND SCREW
  • 37
    10-20784 SCREW, COIL BRACKET TO BOTTOM COWL (1 1/2")
    SCREW, COIL BRACKET TO BOTTOM COWL (1 1/2")
  • 38
    10-26889 SCREW, COIL BRACKET TO BOTTOM COWL (2 1?4")
    SCREW, COIL BRACKET TO BOTTOM COWL (2 1?4")
  • 39
    11-20184 NUT, COIL BRACKET SCREW
    NUT, COIL BRACKET SCREW
  • 40
    16-20077 STUD, COIL BRACKET TO SUPPORT
    STUD, COIL BRACKET TO SUPPORT
  • 41
    30238 SUPPORT, EXTERNAL WIRING HARNESS
    SUPPORT, EXTERNAL WIRING HARNESS
  • 42
    12-20084 WASHER, COIL BRACKET STUD
    WASHER, COIL BRACKET STUD
  • 43
    11-862902 NUT, COIL BRACKEET STUD
    NUT, COIL BRACKEET STUD
  • 44
    22-291112 CONNECTOR, DISTRIBUTOR VENT TUBE
    CONNECTOR, DISTRIBUTOR VENT TUBE
  • 45
    32-8M0108355 HOSE, VENT - DISTRIBUTOR TO CONNECTOR (13")
    HOSE, VENT - DISTRIBUTOR TO CONNECTOR (13")
  • 46
    22-996642 ELBOW, DISTRIBUTOR VENT TUBE
    ELBOW, DISTRIBUTOR VENT TUBE
  • 47
    32-8M0108355 HOSE, VENT - DISTRIBUTOR TO ELBOW (16")
    HOSE, VENT - DISTRIBUTOR TO ELBOW (16")
