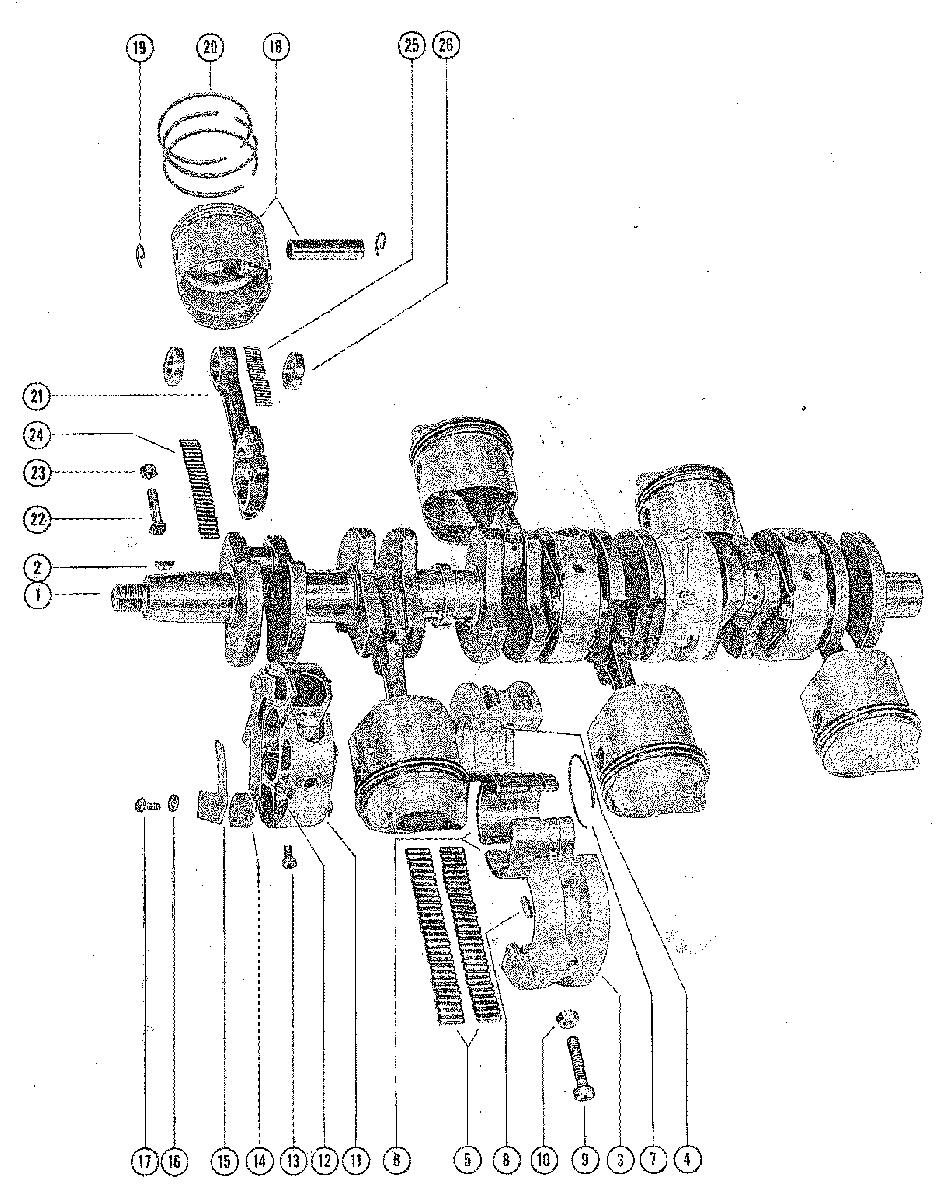

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 800 (6 CYL.) 1398630 THRU 1566239

  • №
    Артикул
    Название
  • 1
    417-1787 CRANKSHAFT
    CRANKSHAFT
  • 2
    28-45554 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 3
    521-1490A1 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 4
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 5
    29-714221 BEARING, NEEDLE-OUTER RACE
    BEARING, NEEDLE-OUTER RACE
  • 6
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 7
    53-26933 RING, SNAP-OUTER RACE
    RING, SNAP-OUTER RACE
  • 8
    17-27732 DOWEL PIN, STEPPED
    DOWEL PIN, STEPPED
  • 9
    10-22968 SCREW, CENTER MAIN BEARING CLAMPING
    SCREW, CENTER MAIN BEARING CLAMPING
  • 10
    11-20184 NUT, BEARING CLAMPING SCREW
    NUT, BEARING CLAMPING SCREW
  • 11
    527-1932A2 MAIN BEARING ASSEMBLY, VALVE TYPE
    MAIN BEARING ASSEMBLY, VALVE TYPE
  • 12
    17-20032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
  • 13
    10-25313 SCREW, MAIN BEARING CLAMPING-SEE NOTE BELOW
    ON EARLIER MERC 800E ENGINES, A C-10-30259 SCREW (MAIN BEARING CLAMPING) WAS USED WITH NO NUT. FOR REPLACEMENT ORDER C-10-25313 SCREW AND C-11-29469 NUT AS LISTED.
    SCREW, MAIN BEARING CLAMPING-SEE NOTE BELOW
    ON EARLIER MERC 800E ENGINES, A C-10-30259 SCREW (MAIN BEARING CLAMPING) WAS USED WITH NO NUT. FOR REPLACEMENT ORDER C-10-25313 SCREW AND C-11-29469 NUT AS LISTED.
  • --
    11-29469 NUT, MAIN BEARING CLAMPING SCREW
    ON EARLIER MERC 800E ENGINES, A C-10-30259 SCREW (MAIN BEARING CLAMPING) WAS USED WITH NO NUT. FOR REPLACEMENT ORDER C-10-25313 SCREW AND C-11-29469 NUT AS LISTED.
    NUT, MAIN BEARING CLAMPING SCREW
    ON EARLIER MERC 800E ENGINES, A C-10-30259 SCREW (MAIN BEARING CLAMPING) WAS USED WITH NO NUT. FOR REPLACEMENT ORDER C-10-25313 SCREW AND C-11-29469 NUT AS LISTED.
  • 14
    34-88498A1 REED SET, MATCHED-MAIN BEARING
    REED SET, MATCHED-MAIN BEARING
  • 15
    34-20053 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 16
    12-26014 WASHER, REED STOP MOUNTING SCREW
    WASHER, REED STOP MOUNTING SCREW
  • 17
    10-20055 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • --
    11-29469 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 18
    729-1948A2 PISTON AND PISTON PIN ASSEMLBY
    PISTON AND PISTON PIN ASSEMLBY
  • 19
    40-30002 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 20
    39-30587A12 RING, PISTON
    RING, PISTON
  • 21
    611-1747A3 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
  • 22
    10-45379 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 23
    11-20061 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 24
    29-47897 BEARING, NEEDLE-CRANKPIN
    BEARING, NEEDLE-CRANKPIN
  • 25
    29-39656 BEARING, NEEDLE-PISTON PIN
    BEARING, NEEDLE-PISTON PIN
  • 26
    12-29681 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • --
    729-1949A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
    OVERSIZE PISTONS AND RINGS
    PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
    OVERSIZE PISTONS AND RINGS
  • --
    39-30704A12 RING, PISTON (.015 OVERSIZE)
    OVERSIZE PISTONS AND RINGS
    RING, PISTON (.015 OVERSIZE)
    OVERSIZE PISTONS AND RINGS
