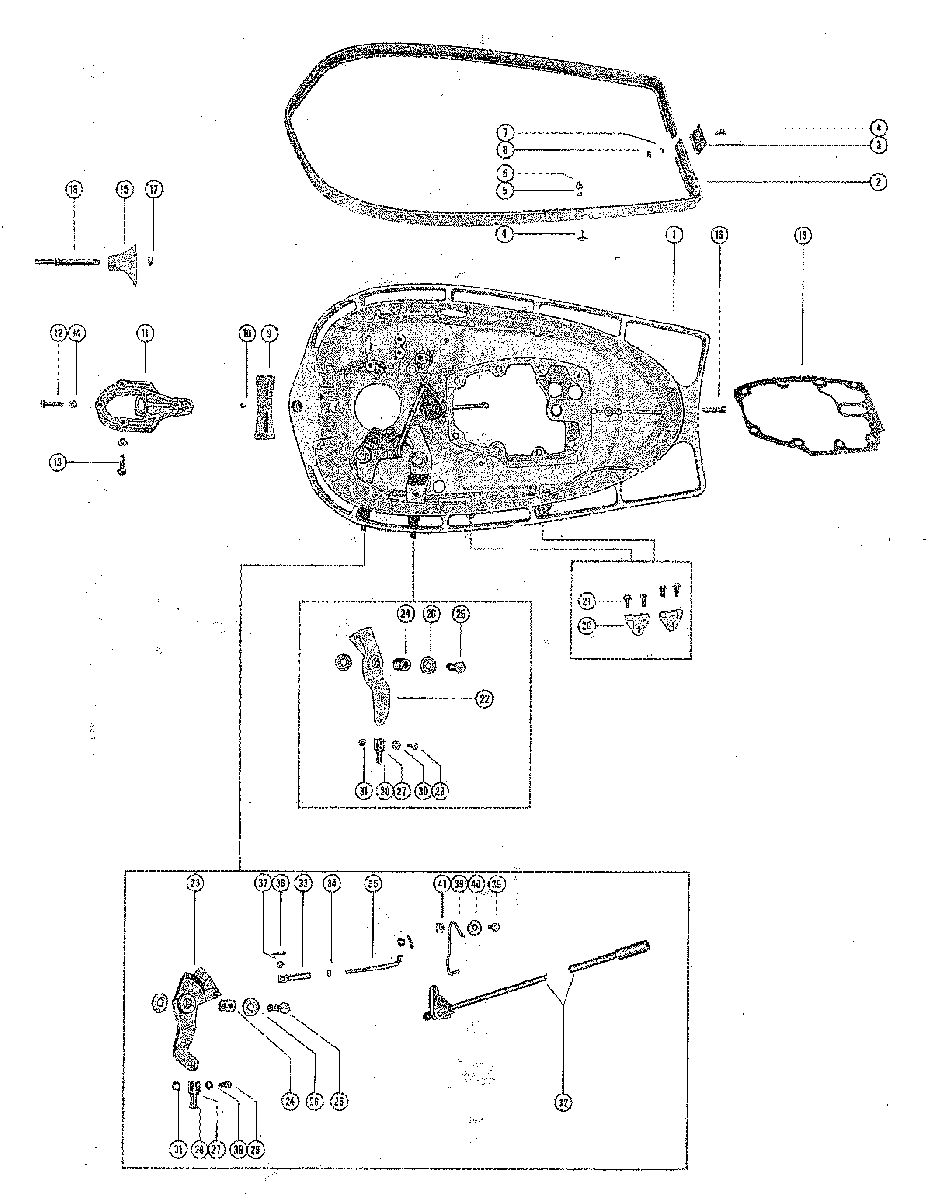

BOTTOM COWL ASSEMBLY для Mercury - 800 (6 CYL.) 1398630 THRU 1566239

  • №
    Артикул
    Название
  • 1
    186-1781A2 BOTTOM COWL ASSEMBLY
    BOTTOM COWL ASSEMBLY
  • -
    37-30860 DECAL, BOTTOM COWL ("8 H.P. SIX") PORT
    DECAL, BOTTOM COWL ("8 H.P. SIX") PORT
  • -
    37-30861 DECAL, BOTTOM COWL ("80 H.P. SIX") STARBOARD
    DECAL, BOTTOM COWL ("80 H.P. SIX") STARBOARD
  • -
    19-31469 PLUG, HOLE - BOTTOM COWL (TO PLUG 3/4" HOLE IN BOTTOM COWL)
    PLUG, HOLE - BOTTOM COWL (TO PLUG 3/4" HOLE IN BOTTOM COWL)
  • 2
    29997A1 TRIM MOULDING ASSEMBLY
    TRIM MOULDING ASSEMBLY
  • 3
    29998 SPLICER, TRIM MOULDING - REAR
    SPLICER, TRIM MOULDING - REAR
  • 4
    10-29226 SCREW, DECORATIVE - MOULDING TO BOTTOM COWL
    SCREW, DECORATIVE - MOULDING TO BOTTOM COWL
  • 5
    12-24671 WASHER, FIBER - MOULDING FASTENING SCREW
    WASHER, FIBER - MOULDING FASTENING SCREW
  • 6
    11-29225 NUT, NYLON CAP - MOULDING FASTENING SCREW
    NUT, NYLON CAP - MOULDING FASTENING SCREW
  • 7
    13-26995 LOCKWASHER, MOULDING FASTENING SCREW
    LOCKWASHER, MOULDING FASTENING SCREW
  • 8
    11-26419 NUT, BRASS - MOULDING FASTENING SCREW
    NUT, BRASS - MOULDING FASTENING SCREW
  • 9
    30005 BAFFLE, BOTTOM COWL
    BAFFLE, BOTTOM COWL
  • 10
    10-21106 SCREW, BAFFLE TO BOTTOM COWL
    SCREW, BAFFLE TO BOTTOM COWL
  • 11
    30768 BRACKET, RECTIFIER MOUNTING
    BRACKET, RECTIFIER MOUNTING
  • 12
    10-21091 SCREW, BRACKET TO BOTTOM COWL (1 1/8")
    SCREW, BRACKET TO BOTTOM COWL (1 1/8")
  • 13
    10-56500 SCREW, BRACKET TO BOTTOM COWL (1 1/4")
    SCREW, BRACKET TO BOTTOM COWL (1 1/4")
  • 14
    11-20184 NUT, RECTIFIER BRACKET MOUNTING SCREW
    NUT, RECTIFIER BRACKET MOUNTING SCREW
  • 15
    30003 BRACKET, PIVOT PIN TO BOTTOM COWL
    BRACKET, PIVOT PIN TO BOTTOM COWL
  • 16
    17-30004 PIN, PIVOT - BOTTOM COWL
    PIN, PIVOT - BOTTOM COWL
  • 17
    11-20696 NUT, PIVOT PIN FASTENING
    NUT, PIVOT PIN FASTENING
  • 18
    27-29914 GASKET, POWERHEAD TO BOTTOM COWL
    GASKET, POWERHEAD TO BOTTOM COWL
  • 19
    10-21504 SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING
    IF REPLACEMENT IS REQUIRED ON THIS SCREW, CHECK LENGTH OF SCREW BEFORE REPLACING, AS ENGINES WERE PRODUCED WITH TWO DIFFERENT LENGTH SCREWS, SUCH AS, C-10-24963 (7/8" LONG) AND C-10-21504 (1 1/4" LONG).
    SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING
    IF REPLACEMENT IS REQUIRED ON THIS SCREW, CHECK LENGTH OF SCREW BEFORE REPLACING, AS ENGINES WERE PRODUCED WITH TWO DIFFERENT LENGTH SCREWS, SUCH AS, C-10-24963 (7/8" LONG) AND C-10-21504 (1 1/4" LONG).
  • 20
    20557 BRACKET, CABLE END ANCHOR
    BRACKET, CABLE END ANCHOR
  • 21
    10-29200 SCREW, ANCHOR BRAKCET TO BOTTOM COWL
    SCREW, ANCHOR BRAKCET TO BOTTOM COWL
  • 22
    29532 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 23
    30612 LEVER, SHIFT CONTROL
    LEVER, SHIFT CONTROL
  • 24
    23-29529 BUSHING, THROTTLE AND SHIFT LEVER
    BUSHING, THROTTLE AND SHIFT LEVER
  • 25
    10-47273 SCREW, THROTTLE AND SHIFT LEVER FASTENING
    SCREW, THROTTLE AND SHIFT LEVER FASTENING
  • 26
    12-8M0042641 WASHER, THROTTLE AND SHIFT LEVER FASTENING SCREW
    WASHER, THROTTLE AND SHIFT LEVER FASTENING SCREW
  • 27
    17-30978A1 PIN ASSEMBLY, CLEVIS YOKE
    PIN ASSEMBLY, CLEVIS YOKE
  • 28
    17-239281 ROLL PIN, CLEVIS YOKE PIN
    ROLL PIN, CLEVIS YOKE PIN
  • 29
    10-20584 SCREW, CLEVIS PIN FASTENING
    SCREW, CLEVIS PIN FASTENING
  • 30
    13-29402 WASHER, WAVE - PIN FASTENING SCREW
    WASHER, WAVE - PIN FASTENING SCREW
  • 31
    11-826709106 NUT, PIN FASTENING SCREW
    NUT, PIN FASTENING SCREW
  • 32
    30789A1 SHIFT SHAFT ASSEMBLY, UPPER
    SHIFT SHAFT ASSEMBLY, UPPER
  • 33
    27714 ROD (SLEEVE), SHIFT CONTROL END
    ROD (SLEEVE), SHIFT CONTROL END
  • 34
    11-25168 NUT, SHIFT SHAFT END ADJUSTING
    NUT, SHIFT SHAFT END ADJUSTING
  • 35
    30630 ROD, LINK - SHIFT SHAFT END
    ROD, LINK - SHIFT SHAFT END
  • 36
    18-210711 COTTER PIN, LINK ROD TO SHIFT SHAFT
    COTTER PIN, LINK ROD TO SHIFT SHAFT
  • 37
    12-20583 WASHER, LINK ROD
    WASHER, LINK ROD
  • 38
    24-30621 SPRING, DETENT
    SPRING, DETENT
  • 39
    10-98256 SCREW, DETENT SPRING TO BOTTOM COWL
    SCREW, DETENT SPRING TO BOTTOM COWL
  • 40
    12-69057 WASHER, DETENT SPRING SCREW
    WASHER, DETENT SPRING SCREW
  • 41
    11-20184 NUT, DETENT SPRING SCREW
    NUT, DETENT SPRING SCREW
