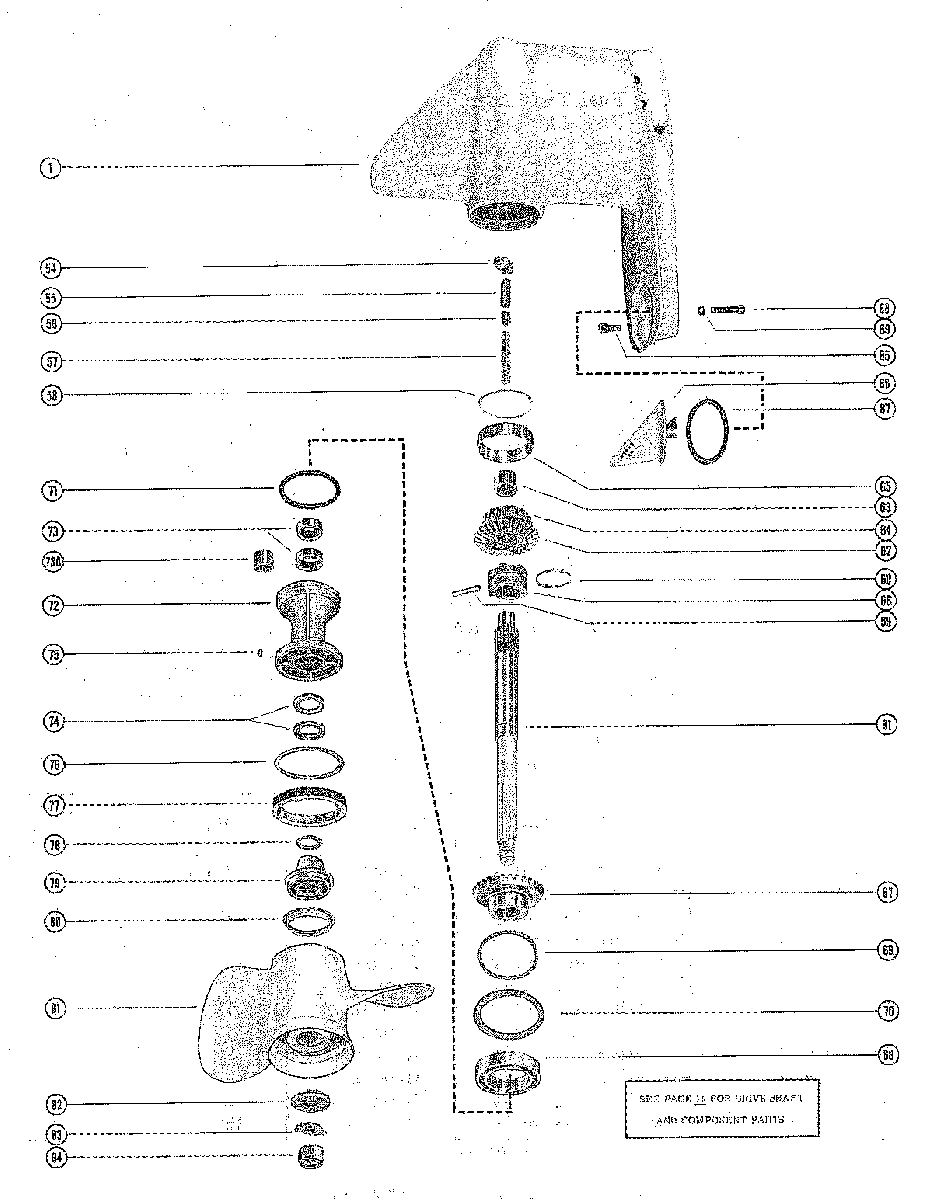

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 800 (6 CYL.) 1398630 THRU 1566239

  • №
    Артикул
    Название
  • -
    1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • -
    1623-2022A6 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • -
    1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • -
    1623-2022A6 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 1
    1623-2041A2 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 54
    760394 CAM, SHIFT
    CAM, SHIFT
  • 55
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
  • 56
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 57
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 58
    15-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING
    SHIM, BEARING OUTER RACE TO GEAR HOUSING
  • 59
    17-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 60
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 61
    44-47900A2 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • --
    43-30938A2 FORWARD GEAR ASSEMBLY, COMPLETE
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    FORWARD GEAR ASSEMBLY, COMPLETE
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • 62
    43-30938A2 FORWARD GEAR ASSEMBLY, COMPLETE
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    FORWARD GEAR ASSEMBLY, COMPLETE
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • 63
    31-30895T BEARING, ROLLER - FORWARD GEAR
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    BEARING, ROLLER - FORWARD GEAR
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • 64
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    TAPERED ROLLER BEARING ASSEMBLY
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • 65
    31-31092 CUP, TAPERED ROLLER BEARING
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    CUP, TAPERED ROLLER BEARING
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • 66
    52-30941 RATCHET, SLIDING CLUTCH
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    RATCHET, SLIDING CLUTCH
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • --
    43-30937 REVERSE GEAR ASSEMBLY, COMPLETE
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    REVERSE GEAR ASSEMBLY, COMPLETE
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • 67
    43-30937 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 68
    30-30548 BEARING, BALL - REVERSE GEAR
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    BEARING, BALL - REVERSE GEAR
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • 69
    15-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    SHIM, THRUST WASHER TO GEAR HOUSING
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • 70
    12-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • --
    43-53100A3 FORWARD GREAR ASSEMBLY, COMPLETE
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    FORWARD GREAR ASSEMBLY, COMPLETE
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 62
    43-53100A3 FORWARD GEAR ASSEMBLY
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    FORWARD GEAR ASSEMBLY
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 63
    31-30895T BEARING, ROLLER - FORWARD GEAR
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    BEARING, ROLLER - FORWARD GEAR
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 64
    31-30894A1 TAPRERED ROLLER BEARING ASSEMBLY
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    TAPRERED ROLLER BEARING ASSEMBLY
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 65
    31-31092 CUP, TAPERED ROLLER BEARING
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    CUP, TAPERED ROLLER BEARING
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 66
    52-822539T RATCHET, SLIDING CLUTCH
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    RATCHET, SLIDING CLUTCH
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 67
    43-31887 REVERSE GEAR ASSEMBLY
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    REVERSE GEAR ASSEMBLY
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 68
    12-31262 BEARING, BALL - REVERSE GEAR
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    BEARING, BALL - REVERSE GEAR
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 69
    15-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    SHIM, THRUST WASHER TO GEAR HOUSING
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 70
    12-31797 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 71
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 72
    30579A1 BEARING CARRIER ASSY (4 45/64" OVERALL LENGTH)
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
    BEARING CARRIER ASSY (4 45/64" OVERALL LENGTH)
    USE ON ENGINES FROM SERIAL #1406322 AND BELOW
  • 72
    31284T1 BEARING CARRIER ASSY (4 5/8" OVERALL LENGTH)
    USE ON ENGINES FROM SERIAL #1406323 AND UP
    BEARING CARRIER ASSY (4 5/8" OVERALL LENGTH)
    USE ON ENGINES FROM SERIAL #1406323 AND UP
  • 73
    31-30616 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 73A
    31-30956T BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 74
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 75
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 76
    12-29957 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 77
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 78
    12-31013 WASHER, THRUST - BEARING CARRIER
    WASHER, THRUST - BEARING CARRIER
  • 79
    30581A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 80
    12-29590 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 81
    48-65588A1 PROPELLER ASSEMBLY, COMPLETE (2 BLADE - ALUMINUM)
    PROPELLER ASSEMBLY, COMPLETE (2 BLADE - ALUMINUM)
  • 82
    12-30967 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 82
    12-31211Q03 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 83
    14-30963 TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 83
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 84
    11-29594 NUT, PROPELLER
    NUT, PROPELLER
  • 85
    10-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 86
    31237 WATER PICKUP, GEAR HOUSING
    WATER PICKUP, GEAR HOUSING
  • 87
    27-30557 GASKET, WATER PICKUP TO GEAR HOUSING
    GASKET, WATER PICKUP TO GEAR HOUSING
  • 88
    10-30559 SCREW, WATER PICKUP TO GEAR HOUSING (2 1/4")
    SCREW, WATER PICKUP TO GEAR HOUSING (2 1/4")
  • 89
    13-26993 LOCKWASHER, WATER PICKUP FASTENING SCREW
    LOCKWASHER, WATER PICKUP FASTENING SCREW
