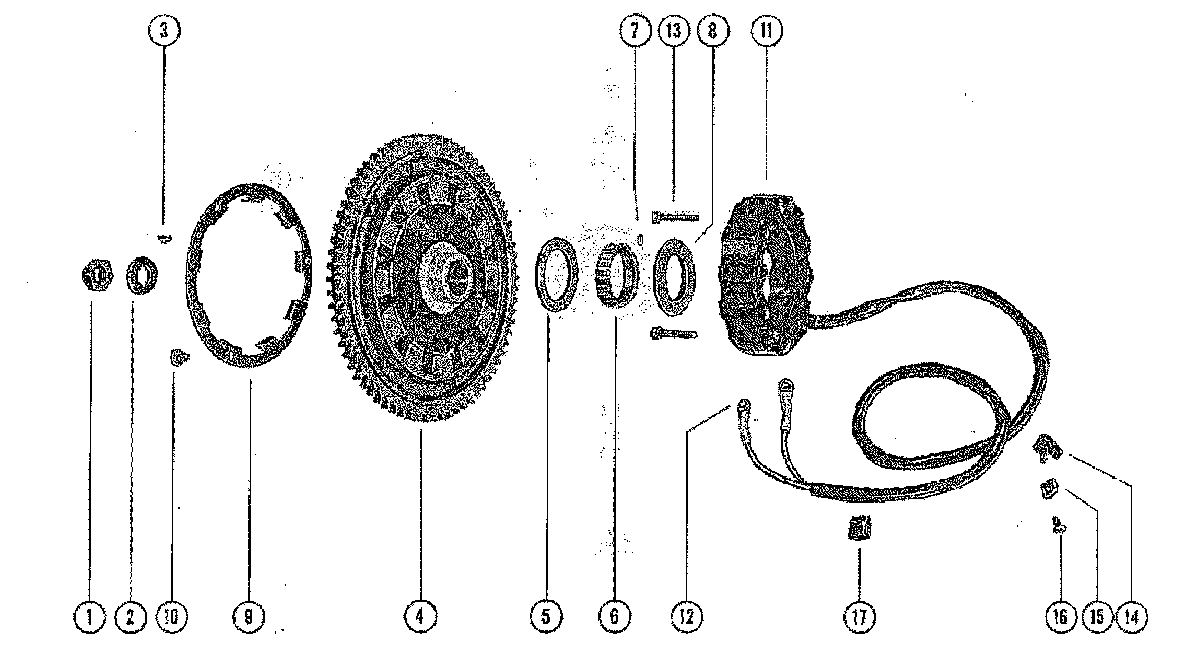

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 800 (6 CYL.) 1398630 THRU 1566239

  • №
    Артикул
    Название
  • 1
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-26617 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    28-45554 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 4
    213-1683A4 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 5
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 6
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 7
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 8
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 9
    50-30745 RATCHET, FLYWHEEL
    RATCHET, FLYWHEEL
  • 10
    10-29238 SCREW, RATCHET TO FLYWHEEL
    WHERE NO LOCKWASHER IS INCLUDED WITH 10-31208 SCREW, USE 13-26992 LOCKWASHER
    SCREW, RATCHET TO FLYWHEEL
    WHERE NO LOCKWASHER IS INCLUDED WITH 10-31208 SCREW, USE 13-26992 LOCKWASHER
  • 11
    398-2035 STATOR, ALTERNATOR
    STATOR, ALTERNATOR
  • 12
    30050 TERMINAL, STATOR LEAD WIRE
    TERMINAL, STATOR LEAD WIRE
  • 13
    10-29283 SCREW, STATOR TO UPPER END CAP
    SCREW, STATOR TO UPPER END CAP
  • 14
    54-24836 CLIP, STATOR LEAD TO EXHAUST COVER
    CLIP, STATOR LEAD TO EXHAUST COVER
  • 15
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 16
    10-8M0113176 SCREW, STATOR LEAD CLIP FASTENING
    SCREW, STATOR LEAD CLIP FASTENING
  • 17
    54-22783 "S" CLIP, STATOR LEAD TO BOTTOM COWL
    "S" CLIP, STATOR LEAD TO BOTTOM COWL
