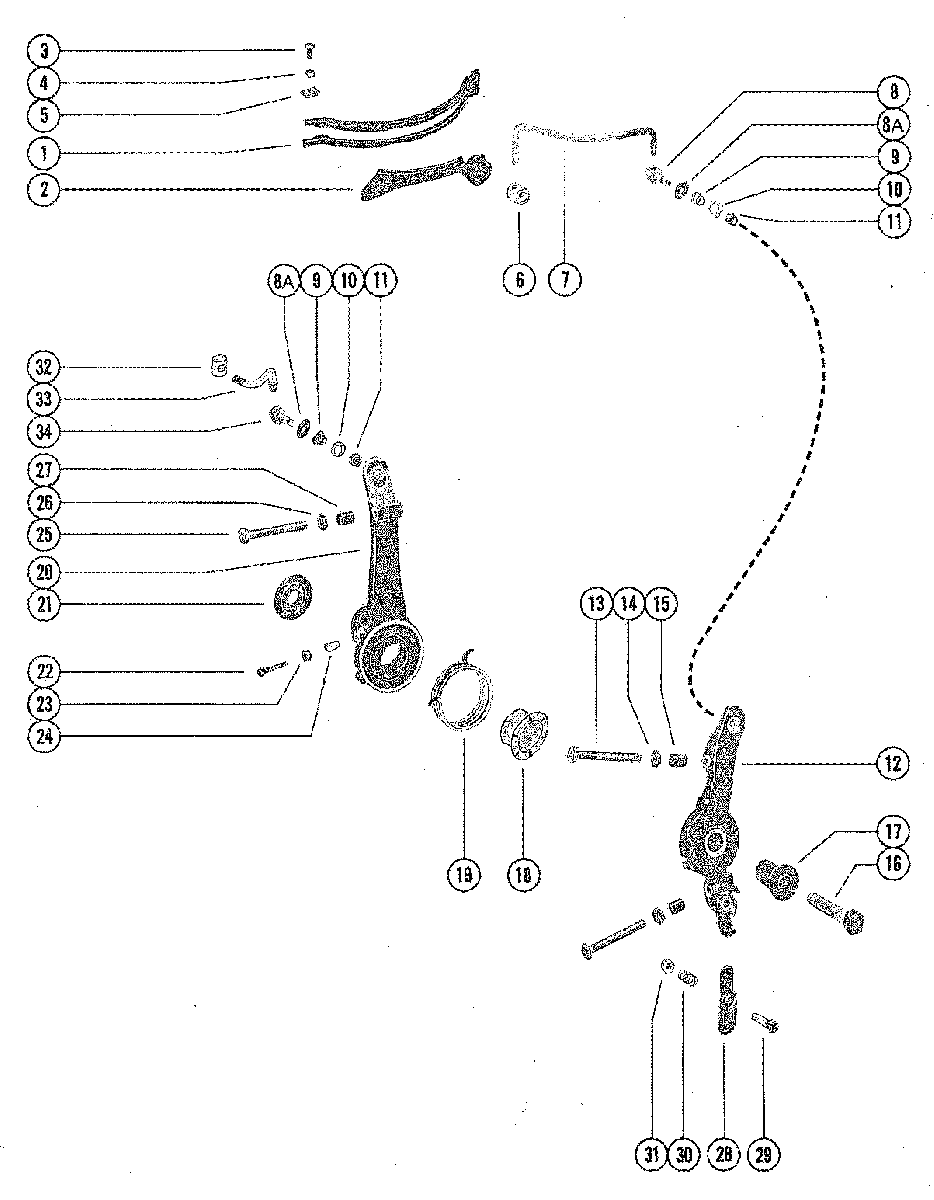

THROTTLE CONTROL LINKAGE AND SPARK ADVANCE для Mercury - 70 (3 CYL.) 7087823 THRU 7145937
-
№АртикулНазвание
-
176864 HOUSING, NYLON-THROTTLE ACTUATORHOUSING, NYLON-THROTTLE ACTUATOR
-
277025 CAM, NYLON-THROTTLE ACTUATORCAM, NYLON-THROTTLE ACTUATOR
-
310-37571 SCREW, HOUSING TO CRANKCASE (1/2")SCREW, HOUSING TO CRANKCASE (1/2")
-
413-26996 LOCKWASHER, HOUSING TO CRANKCASE SCREWLOCKWASHER, HOUSING TO CRANKCASE SCREW
-
560570 PLATE, RETAINER-ACTUATOR HOUSINGPLATE, RETAINER-ACTUATOR HOUSING
-
623-74213 BARREL, NYLON-THROTTLE LINK RODBARREL, NYLON-THROTTLE LINK ROD
-
774164 ROD, LINK-THROTTLEROD, LINK-THROTTLE
-
877013A1 SWIVEL, LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, LINK ROD TO THROTTLE CONTROL LEVER
-
8A13-29402 WAVE WASHER, LINK ROD SWIVELWAVE WASHER, LINK ROD SWIVEL
-
923-26856 BUSHING, LINK ROD SWIVELBUSHING, LINK ROD SWIVEL
-
1012-73288 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
1111-45774 NUT, LINK ROD SWIVELNUT, LINK ROD SWIVEL
-
1277032A2 LEVER ASSEMBLY, THROTTLE CONTROLLEVER ASSEMBLY, THROTTLE CONTROL
-
1310-67916 SCREW, ADJUSTING-THROTTLE LEVER (2")SCREW, ADJUSTING-THROTTLE LEVER (2")
-
1411-29598 NUT, JAM-ADJUSTING SCREWNUT, JAM-ADJUSTING SCREW
-
1552023 CAP, ADJUSTING SCREWCAP, ADJUSTING SCREW
-
1610-818165 SCREW
THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")SCREW
THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4") -
1723-55164 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
1823-55171 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
1924-55162 SPRING, RETURN-SPARK ADVANCE LEVERSPRING, RETURN-SPARK ADVANCE LEVER
-
2077031A2 LEVER ASSEMBLY, SPARK ADVANCELEVER ASSEMBLY, SPARK ADVANCE
-
2112-46765 WASHER, THROTTL CONTROL LEVER SCREWWASHER, THROTTL CONTROL LEVER SCREW
-
2210-73656 SCREW, SPARK ADVANCE ADJUSTING (1 1/2")SCREW, SPARK ADVANCE ADJUSTING (1 1/2")
-
2311-68219 NUT, SPARK ADVANTAGE ADJUSTING SCREWNUT, SPARK ADVANTAGE ADJUSTING SCREW
-
2448039 CAP, SPARK ADVANCE ADJUSTING SCREWCAP, SPARK ADVANCE ADJUSTING SCREW
-
2510-77650 SCREW
ADJUSTING-SPARK ADVANCE LEVER (2 1/4")SCREW
ADJUSTING-SPARK ADVANCE LEVER (2 1/4") -
2611-29598 NUT, JAM-ADJUSTING SCREWNUT, JAM-ADJUSTING SCREW
-
2752023 CAP, ADJUSTING SCREWCAP, ADJUSTING SCREW
-
2839483 LATCH
THROTTLE CONTROL LEVER (THROTTLE CABLE)LATCH
THROTTLE CONTROL LEVER (THROTTLE CABLE) -
2910-69026 SCREW
LATCH TO THROTTLE CONTROL LEVER (7/8")SCREW
LATCH TO THROTTLE CONTROL LEVER (7/8") -
3024-20099 SPRING, COMPRESSION-LATCH SCREWSPRING, COMPRESSION-LATCH SCREW
-
3111-826709109 NUT, LATCH ATTACHING SCREWNUT, LATCH ATTACHING SCREW
-
3274897T BARREL, LINK ROD TO STATORBARREL, LINK ROD TO STATOR
-
3374212 ROD, LINK-SPARK ADVANCEROD, LINK-SPARK ADVANCE
-
3477013A1 SWIVEL, LINK ROD TO SPARK ADVANCE LEVERSWIVEL, LINK ROD TO SPARK ADVANCE LEVER
