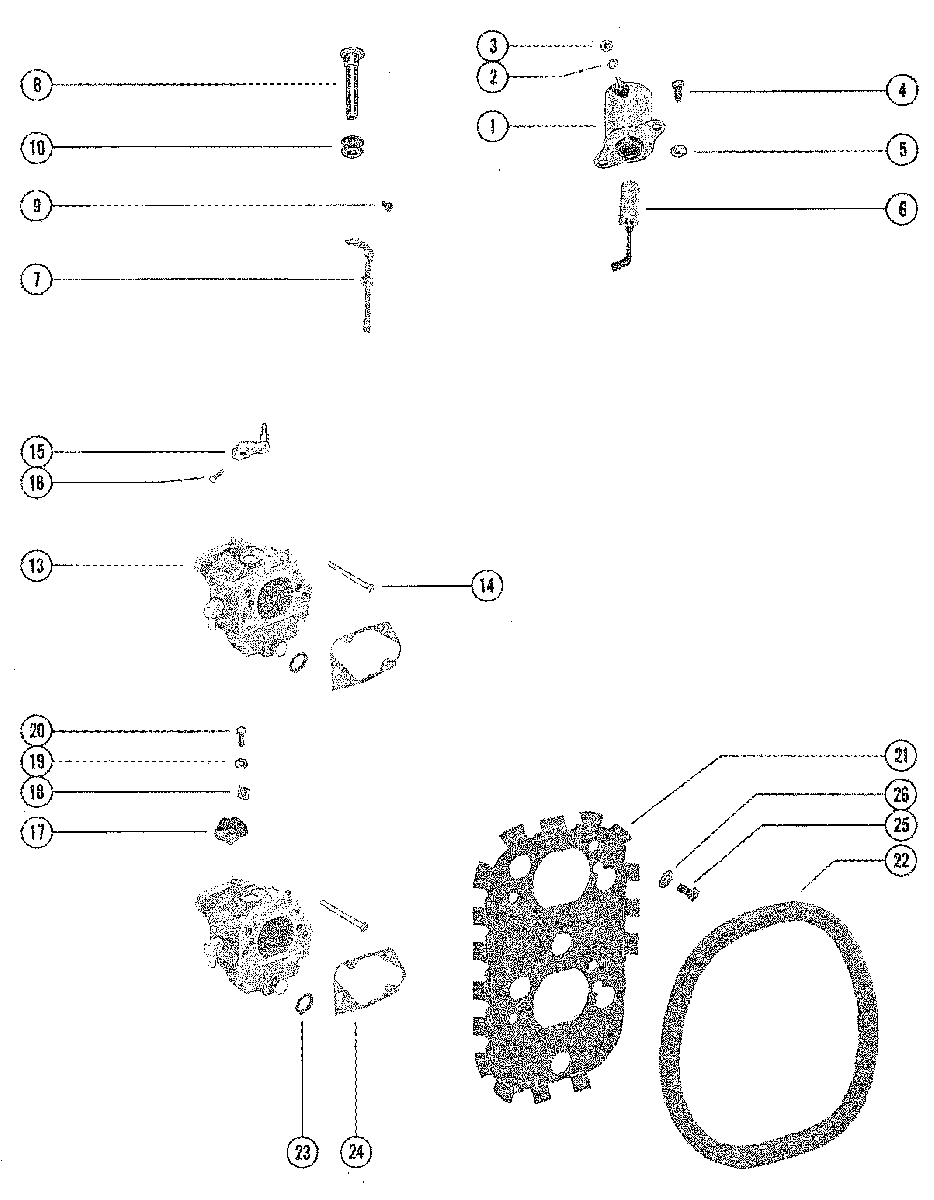

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 70 (3 CYL.) 7087823 THRU 7145937

  • №
    Артикул
    Название
  • 1
    60549A7 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    13-26996 LOCKWASHER, HARNESS LEAD TO CHOKE SOLNOID
    LOCKWASHER, HARNESS LEAD TO CHOKE SOLNOID
  • 3
    11-68219 NUT, HARNESS LEAD TO SOLENOID ATTACHING
    NUT, HARNESS LEAD TO SOLENOID ATTACHING
  • 4
    10-33524 SCREW, CHOKE SOLENOID ATTACHING (5/8")
    SCREW, CHOKE SOLENOID ATTACHING (5/8")
  • 5
    11-29250 NUT, CHOKE SOLENOID ATTACHING SCREWS
    NUT, CHOKE SOLENOID ATTACHING SCREWS
  • 6
    89008A2 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 7
    76076A1 CHOKE ROD
    CHOKE ROD
  • 8
    90242A1 CHOKE KNOB ASSEMBLY
    CHOKE KNOB ASSEMBLY
  • 9
    10-77137 SCREW, WIRE TO CHOKE KNOB
    SCREW, WIRE TO CHOKE KNOB
  • 10
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 13
    1379-6071A16 CARBURETOR ASSEMBLY
    UNITED STATES 4825248 AND BELOW
    AUSTRALIA 8049849 AND BELOW
    BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW
    CARBURETOR ASSEMBLY
    UNITED STATES 4825248 AND BELOW
    AUSTRALIA 8049849 AND BELOW
    BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW
  • 13
    1379-6071A17 CARBURETOR ASSEMBLY
    UNITED STATES 4825249 THRU 5128279
    AUSTRALIA 8049850 THRU 8056219
    BELGIUM 9176876 THRU 9207525 CANADA 7110248 THRU 7110997
    CARBURETOR ASSEMBLY
    UNITED STATES 4825249 THRU 5128279
    AUSTRALIA 8049850 THRU 8056219
    BELGIUM 9176876 THRU 9207525 CANADA 7110248 THRU 7110997
  • 13
    1379-6071A23 CARBURETOR ASSEMBLY
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
    CARBURETOR ASSEMBLY
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
  • 14
    10-52743 SCREW, CARBURETOR TO CRANKCASE (3 3/4")
    SCREW, CARBURETOR TO CRANKCASE (3 3/4")
  • 15
    77583 LEVER, THROTTLE
    LEVER, THROTTLE
  • 16
    10-60293 SCREW, LEVER TO CARBURETOR
    SCREW, LEVER TO CARBURETOR
  • 17
    60292A1 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 18
    28-89694 INSERT, THROTTLE SHAFT COUPLING
    INSERT, THROTTLE SHAFT COUPLING
  • 19
    11-92500 WASHER, ROLLED-COUPLING
    WASHER, ROLLED-COUPLING
  • 20
    10-60293 SCREW, ROLLED WASHER TO COUPLING
    SCREW, ROLLED WASHER TO COUPLING
  • 21
    76904A1 PLATE ASSEMBLY, CARBURETOR
    PLATE ASSEMBLY, CARBURETOR
  • 22
    71090 SEAL, CARBURETOR PLATE
    SEAL, CARBURETOR PLATE
  • 23
    27-73398 GASKET, CARBURETOR PLATE
    UNITED STATES 5128279 AND BELOW
    AUSTRALIA 8056219 AND BELOW
    BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW
    GASKET, CARBURETOR PLATE
    UNITED STATES 5128279 AND BELOW
    AUSTRALIA 8056219 AND BELOW
    BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW
  • 24
    27-76952 GASKET, CARBURETOR PLATE TO CARBURETOR
    UNITED STATES 5128279 AND BELOW
    AUSTRALIA 8056219 AND BELOW
    BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW
    GASKET, CARBURETOR PLATE TO CARBURETOR
    UNITED STATES 5128279 AND BELOW
    AUSTRALIA 8056219 AND BELOW
    BELGIUM 9207525 AND BELOW CANADA 7110997 AND BELOW
  • 25
    10-20367 SCREW, PLATE TO CARBURETOR (7/16")
    SCREW, PLATE TO CARBURETOR (7/16")
  • 26
    12-29245 WASHER, PLATE SCREW
    WASHER, PLATE SCREW
