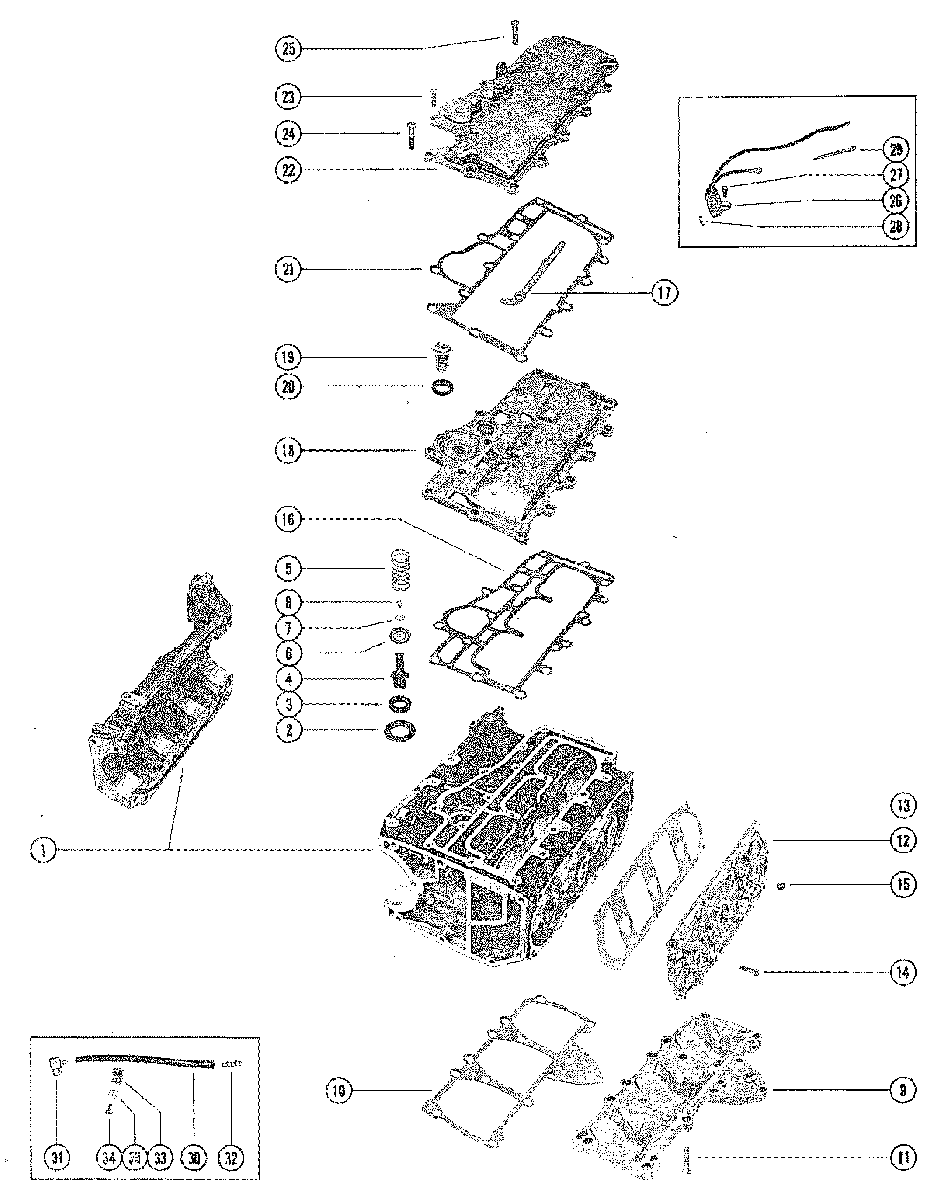

EXHAUST AND MANIFOLD COVERS для Mercury - 70 (3 CYL.) 7087823 THRU 7145937
-
№АртикулНазвание
-
1865-8362A11 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOWCYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW -
1865-8362A11 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP
CANADA 7110248 AND UPCYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
265848 CARRIER, GROMMET
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOWCARRIER, GROMMET
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW -
325-64872 GROMMET, POPPET RELIEF VALVE
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWGROMMET, POPPET RELIEF VALVE
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
486596 POPPET, RELIEF VALVE
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWPOPPET, RELIEF VALVE
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
524-64878 SPRING
COMPRESSION-POPPET RELIEF VALVE
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWSPRING
COMPRESSION-POPPET RELIEF VALVE
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
6648771 DIAPHRAM, POPPET RELIEF
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOWDIAPHRAM, POPPET RELIEF
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW CANADA 7110247 AND BELOW -
712-76451 WASHER, DIAPHRAM
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWWASHER, DIAPHRAM
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
810-69570 SCREW
WASHER AND DIAPHRAM TO POPPET VALVESCREW
WASHER AND DIAPHRAM TO POPPET VALVE -
999523A1 COVER ASSEMBLY, TRANSFER PASSSAGECOVER ASSEMBLY, TRANSFER PASSSAGE
-
1027-768621 GASKET, TRANSFER PASSAGE COVERGASKET, TRANSFER PASSAGE COVER
-
1110-38837 SCREW
TRANSFER PASSAGE COVER MOUNTING (1 1/8")SCREW
TRANSFER PASSAGE COVER MOUNTING (1 1/8") -
121025-8116A1 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
1327-88449 GASKET, CYLINDER BLOCK COVER
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWGASKET, CYLINDER BLOCK COVER
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
1327-88449 GASKET, CYLINDER BLOCK COVER
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UPGASKET, CYLINDER BLOCK COVER
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
1410-28667 SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")
-
1522-328022 PLUG, CYLINDER BLOCK COVERPLUG, CYLINDER BLOCK COVER
-
1627-695252 GASKET, BAFFLE PLATE TO CYLINDER BLOCKGASKET, BAFFLE PLATE TO CYLINDER BLOCK
-
1727-703351 GASKET, BAFFLE PLATE TO CYLINDER BLOCK COVERGASKET, BAFFLE PLATE TO CYLINDER BLOCK COVER
-
1869579 PLATE, BAFFLE-EXHAST MANIFOLDPLATE, BAFFLE-EXHAST MANIFOLD
-
1975692 THERMOSTAT
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWTHERMOSTAT
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
2027-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
2127-695242 GASKET, PLATE TO EXHAUST MANIFOLD COVERGASKET, PLATE TO EXHAUST MANIFOLD COVER
-
2274214 COVER, EXHAUST MANIFOLD
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWCOVER, EXHAUST MANIFOLD
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
2278529 COVER, EXHAUST MANIFOLD
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UPCOVER, EXHAUST MANIFOLD
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
2310-38837 SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/8")SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/8")
-
2410-74824 SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/4")SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/4")
-
2510-70602 SCREW, PLATE/MANIFOLD COVER MOUNTING (2")SCREW, PLATE/MANIFOLD COVER MOUNTING (2")
-
2687-33386A3 SWITCH,MERCURYSWITCH,MERCURY
-
2710-37655 SCREW, MERCURY SWITCH TO CRANKCASE (1/2")SCREW, MERCURY SWITCH TO CRANKCASE (1/2")
-
2817-36242 PIN, ROLL-MERCURY SWITCHPIN, ROLL-MERCURY SWITCH
-
2961990 STA-STRAP, MERCURY SWITCH LEADSTA-STRAP, MERCURY SWITCH LEAD
-
3032-9938779 HOSE, CRANKCASE BLEED (12")HOSE, CRANKCASE BLEED (12")
-
3121-42863 FITTING, CRANKCASE BLEEDFITTING, CRANKCASE BLEED
-
3222-56759 FITTING, VCRANKCASE BLEED (PRESS IN)FITTING, VCRANKCASE BLEED (PRESS IN)
-
3354-648552 CLIP, BLEED HOSECLIP, BLEED HOSE
-
3410-62568 SCREW, BLEED HOSE CLIPSCREW, BLEED HOSE CLIP
-
358M0084613 "C"WASHER, BLEED HOSE CLIP"C"WASHER, BLEED HOSE CLIP
-
-27-88449A32 GASKET SETGASKET SET
-
-27-88449A32 GASKET SETGASKET SET
-
-27-88449A32 GASKET SETGASKET SET
