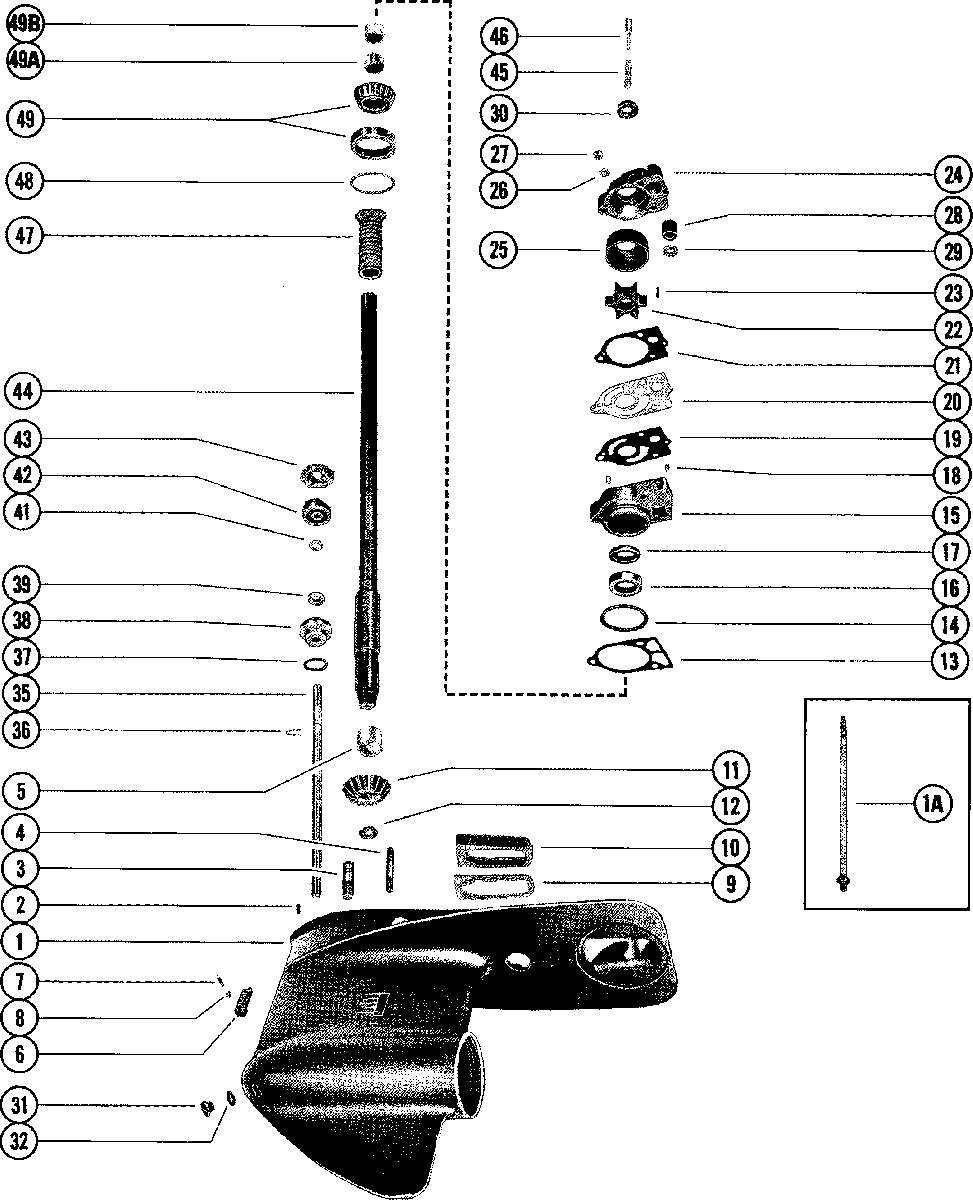

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 4)(PAGE 1) для Mercury - 70 (3 CYL.) 7087823 THRU 7145937

  • №
    Артикул
    Название
  • -
    1643-9539A2 GEAR HOUSING ASSEMBLY
    COMPLETE (SHORT SHAFT)
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
    GEAR HOUSING ASSEMBLY
    COMPLETE (SHORT SHAFT)
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
  • -
    1643-9539A3 GEAR HOUSING ASSEMBLY
    COMPLETE (LONG SHAFT)
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887
    GEAR HOUSING ASSEMBLY
    COMPLETE (LONG SHAFT)
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887
  • -
    1643-9539A2 GEAR HOUSING ASSEMBLY
    COMPLETE (SHORT SHAFT)
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
    GEAR HOUSING ASSEMBLY
    COMPLETE (SHORT SHAFT)
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
  • -
    1643-9539A3 GEAR HOUSING ASSEMBLY
    COMPLETE (LONG SHAFT)
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
    GEAR HOUSING ASSEMBLY
    COMPLETE (LONG SHAFT)
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
    GEAR HOUSING ASSEMBLY
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
    GEAR HOUSING ASSEMBLY
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
  • 1A
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
    CONNECTOR ASSEMBLY, SPEEDOMETER
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
  • 2
    17-8M0084726 PIN, DOWEL- GEAR HOUSING
    PIN, DOWEL- GEAR HOUSING
  • 3
    16-33778 STUD
    WATER PUMP BODY/BASE TO GEAR HSG. (2 5/8")
    STUD
    WATER PUMP BODY/BASE TO GEAR HSG. (2 5/8")
  • 4
    16-8M0034453 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 5
    31-62091T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 6
    72849A1 SCREEN ASSEMBLY
    PORT AND STARBOARD (SHORT SHAFT)
    SCREEN ASSEMBLY
    PORT AND STARBOARD (SHORT SHAFT)
  • 6
    72849A1 SCREEN
    WATER INTAKE - STARBOARD- LONG SHAFT
    SCREEN
    WATER INTAKE - STARBOARD- LONG SHAFT
  • 6
    72849A1 SCREEN
    WATER INTAKE - PORT - LONG SHAFT
    SCREEN
    WATER INTAKE - PORT - LONG SHAFT
  • 7
    10-36070 SCREW
    WATER INTAKE SCREEN TO GEAR HOUSING
    SCREW
    WATER INTAKE SCREEN TO GEAR HOUSING
  • 8
    11-859124 NUT
    WATER INTAKE SCREEN SCREW
    NUT
    WATER INTAKE SCREEN SCREW
  • 9
    92815 PLATE, SUPPORT - EXHAUST TUBE
    PLATE, SUPPORT - EXHAUST TUBE
  • 10
    37721001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 11
    43-60245 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 12
    11-55910 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 13
    27-19552 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 14
    25-26722 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 15
    46-77177A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 16
    26-79831 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 17
    26-90562 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    17-8M0084627 DOWEL PIN
    WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN
    WATER PUMP BASE TO WATER PUMP BODY
  • 19
    27-19553 GASKET, LOWER
    WATER PUMP BASTE TO FACE PLATE
    GASKET, LOWER
    WATER PUMP BASTE TO FACE PLATE
  • 20
    32768 PLATE, FACE
    WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE
    WATER PUMP BASE TO WATER PUMP BODY
  • 21
    27-19551 GAKSET, UPPER
    FACE PLATE TO WATER PUMP BODY
    GAKSET, UPPER
    FACE PLATE TO WATER PUMP BODY
  • 22
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 23
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 24
    46-77822A1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 25
    48753 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 26
    12-29245 WASHER, WATER PUMP BODY AND BASE STUDS
    WASHER, WATER PUMP BODY AND BASE STUDS
  • 27
    11-35888 NUT, WATER PUMP BODY AND BASE STUDS
    NUT, WATER PUMP BODY AND BASE STUDS
  • 28
    26-38452 SEAL, RUBBER
    WATER INLET TUBE (WATER PUMP BODY)
    SEAL, RUBBER
    WATER INLET TUBE (WATER PUMP BODY)
  • 29
    12-38453 WASHER, NYLON - WATER PUMP BODY
    WASHER, NYLON - WATER PUMP BODY
  • 30
    25-20273 RING, RUBBER
    CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER
    CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 31
    10-79953Q04 SCREW, GREASE FILLER
    SCREW, GREASE FILLER
  • 31
    22-8M0058389 SCREW, DRAIN (MAGNETIC)
    SCREW, DRAIN (MAGNETIC)
  • 32
    12-191833 WASHER, GREASE FILLER AND DRAIN SCREW
    WASHER, GREASE FILLER AND DRAIN SCREW
  • 35
    76063A1 SHAFT ASSEMBLY, SHIFT - LOWER
    SHAFT ASSEMBLY, SHIFT - LOWER
  • 36
    53-29641 CLIP, REATAING - SHIFT SHAFT
    CLIP, REATAING - SHIFT SHAFT
  • 37
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 38
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 39
    26-8164641 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 41
    12-77674 WASHER, RUBBER- SHIFT SHAFT BUSHING
    WASHER, RUBBER- SHIFT SHAFT BUSHING
  • 42
    78036 BASE
    LOWER - REVERSE LOCKING NOT PART OF GEAR HOUSING
    BASE
    LOWER - REVERSE LOCKING NOT PART OF GEAR HOUSING
  • 43
    43308T1 CAM
    REVERSE LOCKING NOT PART OF GEAR HOUSING
    CAM
    REVERSE LOCKING NOT PART OF GEAR HOUSING
  • 44
    45-77390A2 DRIVE SHAFT ASSEMBLY
    (SHORT SHAFT)
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
    DRIVE SHAFT ASSEMBLY
    (SHORT SHAFT)
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
  • 44
    45-77389A2 DRIVE SHAFT ASSEMBLY
    (LONG SHAFT)
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
    DRIVE SHAFT ASSEMBLY
    (LONG SHAFT)
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
  • 44
    45-77390A2 DRIVE SHAFT ASSEMBLY
    (SHORT SHAFT) SERIAL GROUP #7
    DRIVE SHAFT ASSEMBLY
    (SHORT SHAFT) SERIAL GROUP #7
  • 44
    45-77389A2 DRIVE SHAFT ASSEMBLY
    (LONG SHAFT) SERIAL GROUP #7
    DRIVE SHAFT ASSEMBLY
    (LONG SHAFT) SERIAL GROUP #7
  • 45
    24-20254 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 46
    17-30545 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
  • 47
    88181 SLEEVE, LUBRICATION - DRIVE SHAFT
    SLEEVE, LUBRICATION - DRIVE SHAFT
  • 48
    15-92881A1 SHIM, BEARING TO GEAR HOUSING (.002-3-5-10-20)
    SHIM, BEARING TO GEAR HOUSING (.002-3-5-10-20)
  • 49
    31-77420A1 ROLLER BEARING ASSEMBLY
    TAPERED - DRIVE SHAFT
    ROLLER BEARING ASSEMBLY
    TAPERED - DRIVE SHAFT
  • 49A
    78654A1 SEAT ASSEMBLY, DRIVE SHAFT
    SPLINED NYLON SEAL SEAT ON DRIVE SHAFT
    SEAT ASSEMBLY, DRIVE SHAFT
    SPLINED NYLON SEAL SEAT ON DRIVE SHAFT
  • 49B
    86304 SEAL, SPLINED - DRIVE SHAFT
    SPLINED NYLON SEAL SEAT ON DRIVE SHAFT
    SEAL, SPLINED - DRIVE SHAFT
    SPLINED NYLON SEAL SEAT ON DRIVE SHAFT
  • -
    46-77177A3 WATER PUMP KIT
    WATER PUMP KIT
  • -
    26-79831A1 SEAL KIT
    SEAL KIT
  • -
    27-88449A32 GASKET SET
    GASKET SET
  • -
    27-88449A32 GASKET SET
    GASKET SET
  • -
    A-27-76589A89 GASKET SET
    GASKET SET
