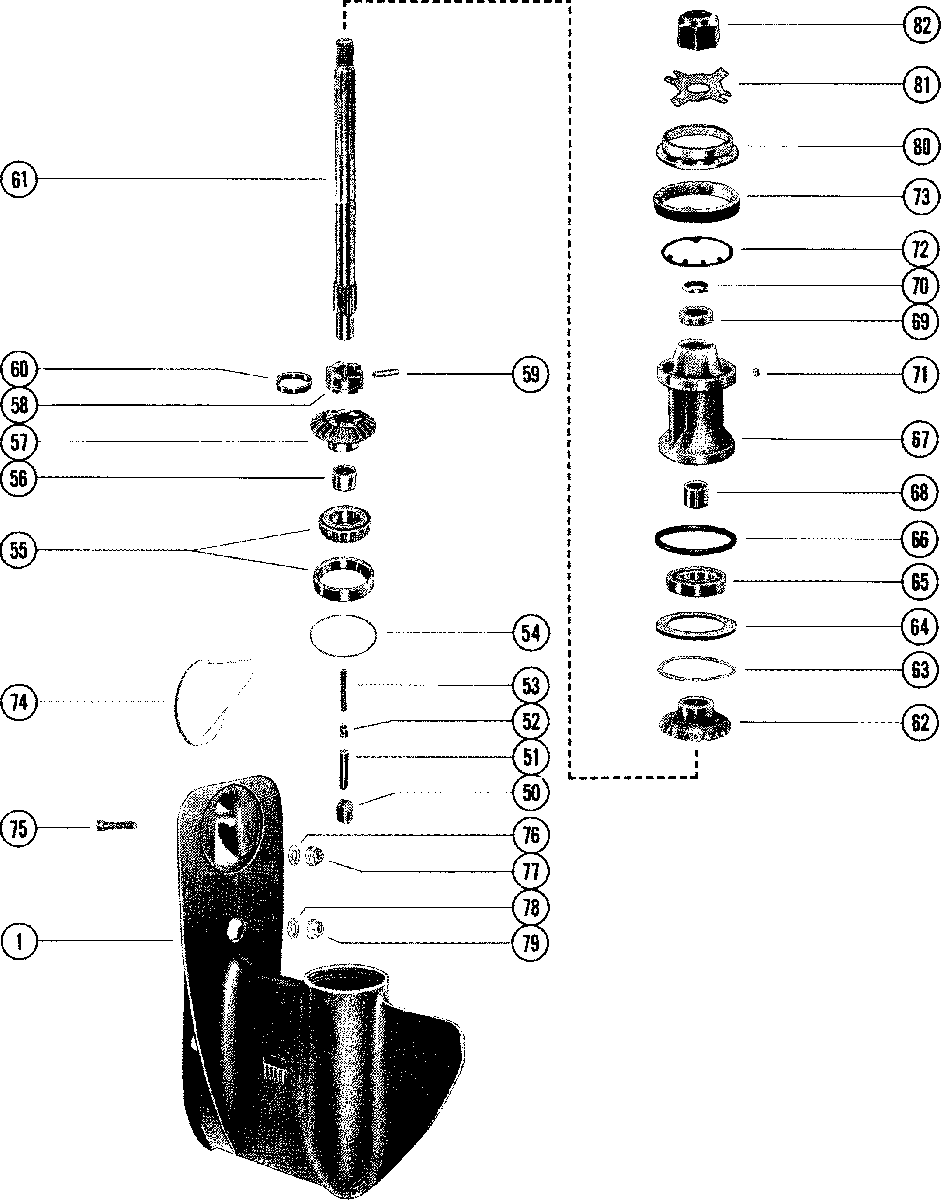

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 4)(PAGE 2) для Mercury - 70 (3 CYL.) 7087823 THRU 7145937

  • №
    Артикул
    Название
  • -
    1643-9539A2 GEAR HOUSING ASS'Y COMP. (SHORT SHAFT)
    SEE NOTE BELOW
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
    GEAR HOUSING ASS'Y COMP. (SHORT SHAFT)
    SEE NOTE BELOW
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
  • -
    1643-9539A3 GEAR HOUSING ASS'Y COMP. (LONG SHAFT)
    SEE NOTE BELOW
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887
    GEAR HOUSING ASS'Y COMP. (LONG SHAFT)
    SEE NOTE BELOW
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525 CANADA 7110998 THRU 7129887
  • -
    1643-9539A2 GEAR HOUSING ASS'Y COMP (SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
    GEAR HOUSING ASS'Y COMP (SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
  • -
    1643-9539A3 GEAR ASS'Y COMP. (LONG SHAFT)
    SEE NOTE BELOW
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
    GEAR ASS'Y COMP. (LONG SHAFT)
    SEE NOTE BELOW
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY - F10
    SEE F10 FOR BREAKDOWN
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
    GEAR HOUSING ASSEMBLY - F10
    SEE F10 FOR BREAKDOWN
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
  • 1
    1643-9539T1 GEARE HOUSING ASSEMBLY
    SEE F10 FOR BREAKDOWN
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
    GEARE HOUSING ASSEMBLY
    SEE F10 FOR BREAKDOWN
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
  • 50
    760394 CAM, SHIFT
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
    CAM, SHIFT
    UNITED STATES 4977157 THRU 5128279
    AUSTRALIA 8050200 THRU 8056219
    BELGIUM 9196961 THRU 9207525
    CANADA 7110998 THRU 7129887
  • 50
    760394 CAM, SHIFT
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
    CAM, SHIFT
    UNITED STATES 5128280 AND UP
    AUSTRALIA 8056220 AND UP
    BELGIUM 9207526 AND UP
    CANADA 7129888 AND UP
  • 51
    38441 FOLLOWER, CAM
    FOLLOWER, CAM
  • 52
    20843 SLIDE, CROSS
    SLIDE, CROSS
  • 53
    24-39845 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 54
    15-38374A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)
  • 55
    31-38356A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 56
    31-21739 BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 57
    43-60247T5 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 58
    52-92911T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 59
    17-8M0020942 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 60
    24-38114 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 61
    44-75365 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 62
    43-79159T REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 64
    12-32004 WASHER, THRUST - REVERSE GEAR
    WASHER, THRUST - REVERSE GEAR
  • 65
    30-20839T BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 66
    25-31986 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 67
    69386T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 68
    31-21700 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 69
    26-69188 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 70
    26-69189 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 71
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 72
    14-53012 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 73
    11-87763 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 74
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 75
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING
    SCREW, TRIM TAB TO GEAR HOUSING
  • 76
    12-856774 WASHER
    DRIVE SHAFT HOUSING STUD (3/8')
    WASHER
    DRIVE SHAFT HOUSING STUD (3/8')
  • 77
    11-8M0042636 NUT
    DRIVE SHAFT HOUSING STUD (3/8")
    NUT
    DRIVE SHAFT HOUSING STUD (3/8")
  • 78
    12-65791 WASHER
    DRIVE SHAFT HOUSING GEAR HOUSING STUD (7/16")
    WASHER
    DRIVE SHAFT HOUSING GEAR HOUSING STUD (7/16")
  • 79
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR STUD (7/16")
    NUT, DRIVE SHAFT HOUSING TO GEAR STUD (7/16")
  • 80
    73345A1 THRUST HUB, FRONT
    THRUST HUB, FRONT
  • 81
    14-76281 TAB WASHER, PROPELLER
    TAB WASHER, PROPELLER
  • 82
    11-69578Q1 NUT, PROPELLER
    NUT, PROPELLER
