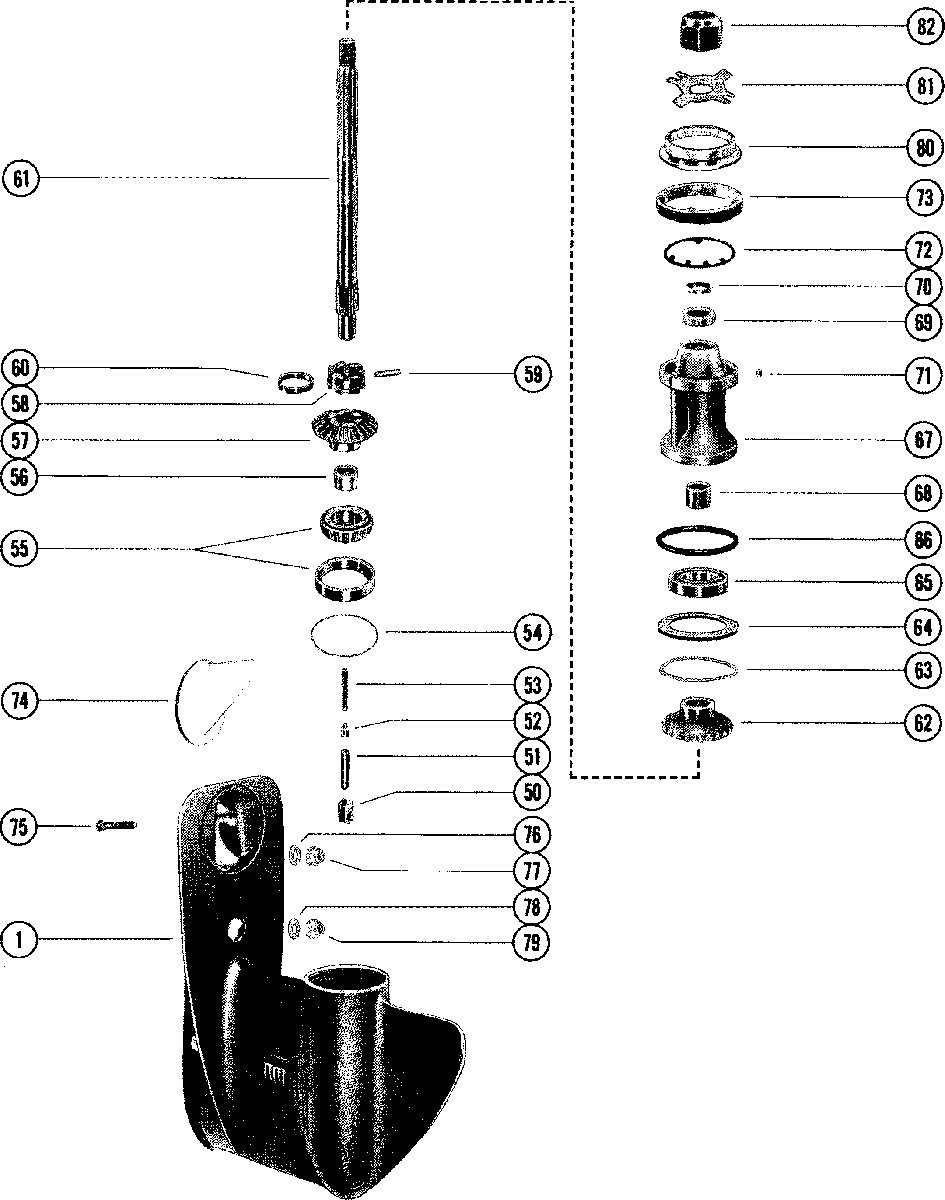

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP NO. 3)(PAGE 2) для Mercury - 70 (3 CYL.) 7087823 THRU 7145937
-
№АртикулНазвание
-
-1643-6038A19 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SEE NOTEGEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SEE NOTE -
-1643-6038A20 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTEGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE -
11643-6038A6 GEAR HOUSING ASSEMBLY (SEE F6 FOR BREAKDOWN)GEAR HOUSING ASSEMBLY (SEE F6 FOR BREAKDOWN)
-
50760394 CAM, SHIFTCAM, SHIFT
-
5138441 FOLLOWER, CAMFOLLOWER, CAM
-
5220843 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5324-39845 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5415-38374A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)
-
5531-38356A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5631-21739 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5743-60247T5 FORWARD GEARFORWARD GEAR
-
5852-92911T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5917-8M0020942 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
6024-38114 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6144-75365 SHAFT, PROPELLERSHAFT, PROPELLER
-
6243-79159T REVERSE GEARREVERSE GEAR
-
6315-20927A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
-
6412-32004 WASHER, THRUST - REVERSE GEARWASHER, THRUST - REVERSE GEAR
-
6530-20839T BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6625-31986 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6769386T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6831-21700 BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6926-69188 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7026-69189 OIL SEAL, BEARING CARRIER - LINE CUTTEROIL SEAL, BEARING CARRIER - LINE CUTTER
-
7128-30281 KEY, LOCATING- BEARING CARRIERKEY, LOCATING- BEARING CARRIER
-
7214-53012 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7311-87763 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7497-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7510-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7612-856774 WASHER, DRIVE SHAFT HOUSING STUD (3/8")WASHER, DRIVE SHAFT HOUSING STUD (3/8")
-
7711-8M0042636 NUT
DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")NUT
DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8") -
7812-65791 WASHER, DRIVE SHAFT HOUSING STUD (7/16")WASHER, DRIVE SHAFT HOUSING STUD (7/16")
-
7911-34933 NUT
DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")NUT
DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16") -
8073345A1 THRUST HUB, PROPELLERTHRUST HUB, PROPELLER
-
8114-76281 TAB WASHER, PROPELLERTAB WASHER, PROPELLER
-
8211-69578Q1 NUT, PROPELLERNUT, PROPELLER
-
-27-88449A32 GASKET SETGASKET SET
-
-27-88449A32 GASKET SETGASKET SET
