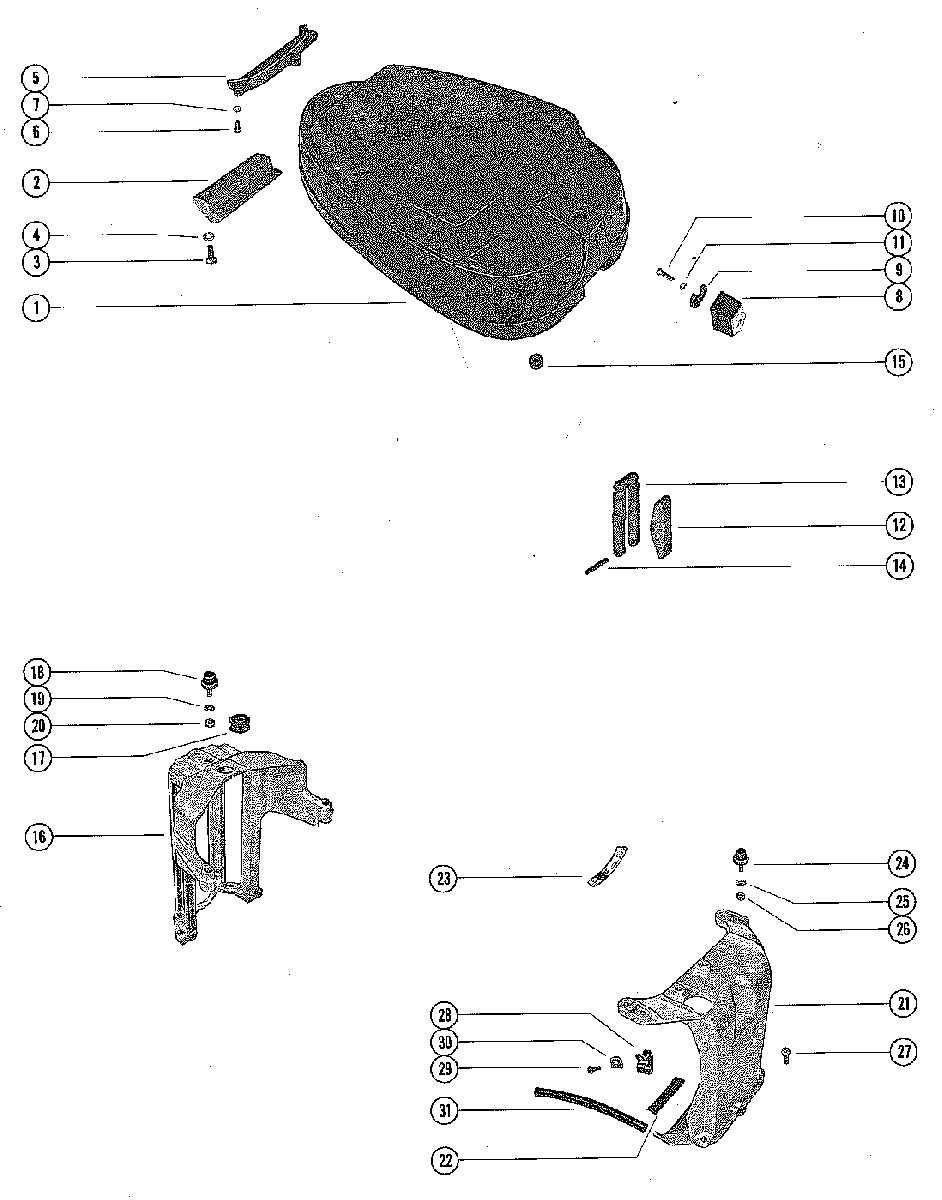

TOP COWL ASSEMBLY для Mercury - 500 9082514 THRU 9107213

  • №
    Артикул
    Название
  • 1
    2117-4067A1 TOP COWL (MANUAL)
    TOP COWL (MANUAL)
  • 1
    2117-4068A1 TOP COWL (ELECTRIC)
    TOP COWL (ELECTRIC)
  • 2
    55455 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
  • 3
    10-22956 SCREW, REAR HOOK TO TOP COWL (7/8")
    SCREW, REAR HOOK TO TOP COWL (7/8")
  • 4
    13-26992 LOCKWASHER, REAR HOOK MOUNTING SCREW
    LOCKWASHER, REAR HOOK MOUNTING SCREW
  • 5
    37690 SHIELD, REAR - TOP COWL
    SHIELD, REAR - TOP COWL
  • 6
    10-37370 SCREW, REAR SHILD TO TOP COWL
    SCREW, REAR SHILD TO TOP COWL
  • 7
    13-37371 LOCKWASHER, REAR SHILD SCREW
    LOCKWASHER, REAR SHILD SCREW
  • 8
    55459A5 RETAINER ASSEMBLY, TOP COWL
    RETAINER ASSEMBLY, TOP COWL
  • 9
    35496 PAD, BUMPER-TOP COWL REATINER
    PAD, BUMPER-TOP COWL REATINER
  • 10
    10-35386 SCREW, RETAINER TO TOPE COWL (1")
    SCREW, RETAINER TO TOPE COWL (1")
  • 11
    13-39107 LOCKWASHER, RETAINER TO TOP COWL SCREW
    LOCKWASHER, RETAINER TO TOP COWL SCREW
  • 12
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
  • 13
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
  • 14
    17-58998 PIN, COWL LATCH LEVER TO HINGE
    PIN, COWL LATCH LEVER TO HINGE
  • 15
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 16
    720201 BRACKET, REAR COWL SUPPORT
    BRACKET, REAR COWL SUPPORT
  • 17
    25-52723 GROMMET, LIMIT STOP - REAR COWL SUPPORT BRACKET
    GROMMET, LIMIT STOP - REAR COWL SUPPORT BRACKET
  • 18
    60577 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 19
    12-69056 WASHER, REAR SUPPORT BRACKET RUBBER MOUNT
    WASHER, REAR SUPPORT BRACKET RUBBER MOUNT
  • 20
    11-826709109 NUT, REAR SUPPORT BRACKET RUBBER MOUNT
    NUT, REAR SUPPORT BRACKET RUBBER MOUNT
  • 21
    60785A2 BRACKET ASSEMBLY, FRONT SUPPORT
    BRACKET ASSEMBLY, FRONT SUPPORT
  • 22
    37921 FLANGE, RUBBER - FRONT SUPPORT BRACKET
    FLANGE, RUBBER - FRONT SUPPORT BRACKET
  • 23
    37-46397 DECAL, TIMING - FRONT SUPPORT BRACKET
    DECAL, TIMING - FRONT SUPPORT BRACKET
  • 24
    31014 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 25
    32-23046 WASHER, FRONT SUPPORT BRACKET RUBBER MOUNT
    WASHER, FRONT SUPPORT BRACKET RUBBER MOUNT
  • 26
    11-826709109 NUT, FRONT SUPPORT BRACKET RUBBER MOUNT
    NUT, FRONT SUPPORT BRACKET RUBBER MOUNT
  • 27
    10-37562 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
    SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
  • 28
    54-25231 CLIP, SOLENOID LEAD TO FRONT SUPPORT BRACKET ELECTRIC
    CLIP, SOLENOID LEAD TO FRONT SUPPORT BRACKET ELECTRIC
  • 28
    54-24836 CLIP, SOLENOID LEAD AND HARNESS TO SUPPORT BRACKET ELECTRIC
    CLIP, SOLENOID LEAD AND HARNESS TO SUPPORT BRACKET ELECTRIC
  • 29
    10-69079 SCREW, CHOKE SOLENOID CLIP ATTACHING (7/16") ELECTRIC
    SCREW, CHOKE SOLENOID CLIP ATTACHING (7/16") ELECTRIC
  • 30
    8M0084613 D WASHER, CHOKE SOLENOID CLIP SCREW ELECTRIC
    D WASHER, CHOKE SOLENOID CLIP SCREW ELECTRIC
  • 31
    32-8M0108355 TUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWL
    TUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWL
