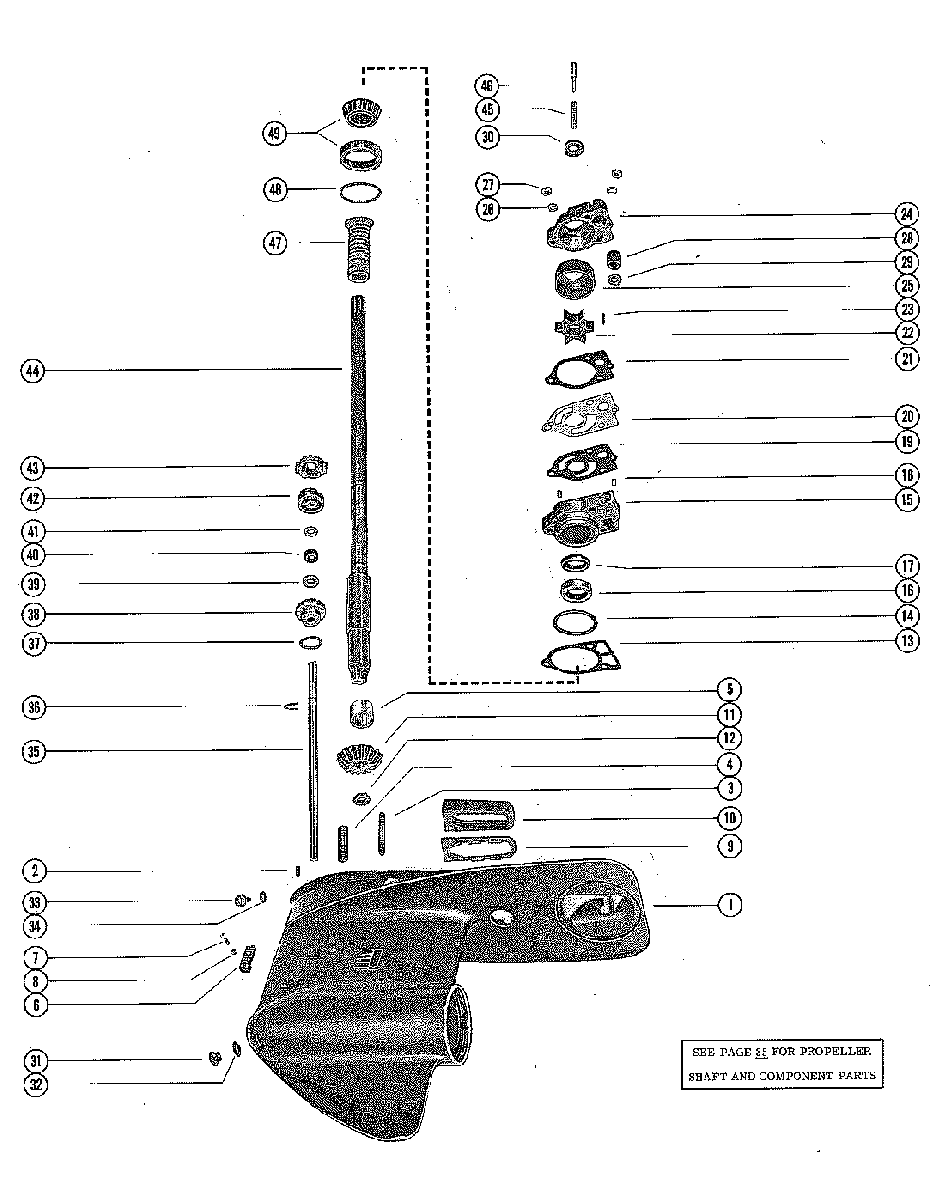

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 500 9082514 THRU 9107213

  • №
    Артикул
    Название
  • -
    1643-6038A17 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
  • -
    1643-6038A18 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW
    UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW
    UNITED STATES 4141000 THRU 4280269 AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
  • -
    1643-6038A5 GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT)
    SEE NOTE BELOW
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • -
    1643-6038A7 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 1
    1643-6038A6 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    17-21438 PIN, DOWEL - GEAR HOUSING
    PIN, DOWEL - GEAR HOUSING
  • 3
    16-33778 STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")
    STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")
  • 4
    16-8M0034453 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
  • 5
    31-62091T BEARING, ROLLER - DRIVE UNIT
    BEARING, ROLLER - DRIVE UNIT
  • 6
    72849A1 SCREEN, WATER INTAKE - STARBOARD
    SCREEN, WATER INTAKE - STARBOARD
  • 6
    72849A1 SCREEN, WATER INTAKE - PORT
    SCREEN, WATER INTAKE - PORT
  • 7
    10-36070 SCREW, WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4")
    SCREW, WATER INTAKE SCREEN TO GEAR HOUSING (1 1/4")
  • 8
    11-859124 NUT, WATER INTAKE SCREEN SCREW
    NUT, WATER INTAKE SCREEN SCREW
  • 9
    92815 PLATE, SUPPORT - EXHAUST TUBE SEAL
    PLATE, SUPPORT - EXHAUST TUBE SEAL
  • 10
    37721001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 11
    43-55607 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 12
    11-55910 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 13
    27-32771 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 14
    25-26855 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 15
    46-77516A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 16
    26-79831 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 17
    26-90562 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 19
    27-19553 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 20
    32768 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 21
    27-19551 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 22
    47-89983T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 23
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 24
    46-77822A1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 25
    48753 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 26
    12-29245 WASHER, WATER PUMP BODY AND BASE STUDS
    WASHER, WATER PUMP BODY AND BASE STUDS
  • 27
    11-826709109 NUT, WATER PUMP BODY AND BASE STUDS
    NUT, WATER PUMP BODY AND BASE STUDS
  • 28
    26-38452 SEAL, WATER PUMP BODY TO WATER TUBE
    SEAL, WATER PUMP BODY TO WATER TUBE
  • 29
    12-38453 WASHER, CUPPED - WATER TUBE SEAL
    WASHER, CUPPED - WATER TUBE SEAL
  • 30
    25-20273 RING, RUBBER - CENTRIFUGAL SLINGER
    RING, RUBBER - CENTRIFUGAL SLINGER
  • 31
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 32
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • 33
    19-48750 PLUG, GEAR HOUSING FLUSHING HOLE
    PLUG, GEAR HOUSING FLUSHING HOLE
  • 34
    12-49221 WASHER, GEAR HOUSING FLUSHING HOLE
    WASHER, GEAR HOUSING FLUSHING HOLE
  • 35
    76063A1 SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
    SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
  • 35
    69787A1 SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    SHAFT ASSEMBLY, SHIFT - LOWER
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT
    BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 36
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 37
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 38
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 39
    26-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
    OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
  • 40
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
    OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
  • 41
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 42
    78036 BASE, LOWER - REVERSE LOCKING
    BASE, LOWER - REVERSE LOCKING
  • 43
    43308T1 CAM, REVERSE LOCKING
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
    CAM, REVERSE LOCKING
    UNITED STATES 4141000 THRU 4280269
    AUSTRALIA 8029515 THRU 8030089
    BELGIUM 9082514 THRU 9100588
    CANADA 7051983 THRU 7060607
  • 43
    69542 CAM, REVERSE LOCKING
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
    CAM, REVERSE LOCKING
    UNITED STATES 4280270 AND UP
    AUSTRALIA NONE BUILT BELGIUM 9100589 AND UP
    CANADA 7060608 AND UP
  • 44
    45-76089A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
  • 44
    45-76088A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
  • 45
    24-20254 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 46
    17-30545 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
  • 47
    88181 SLEEVE, LUBRICATION - DRIVE SHAFT
    SLEEVE, LUBRICATION - DRIVE SHAFT
  • 48
    15-20929A1 ,SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
    ,SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
  • 49
    31-38146A1 ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT
    ROLLER BEARING ASSEMBLY, TAPERED - DRIVE SHAFT
